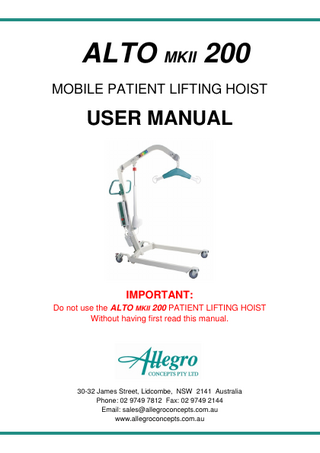

ALTO MKII 200 User Manual

CONTENTS

ALTO MKII 200 Overview

3

Important safety considerations

4

ALTO MKII 200 Assembly instructions

6

Hoist operation and charging

7

Lifting procedures

10

Maintenance

12

Trouble shooting 13 Specifications

14

Warranty 15

Doc Alto1.1

Slings

16

Key to symbols

17

Parts list

17

Log book

18

ALTO 200 User Manual

|2

ALTO MKII 200 Overview The ALTO MKII 200 is a compact ergonomic designed medium sized heavy duty mobile patient lifting hoist with a safe working load of 200kg. This lifter is ideally suited for institutional use or as a compact heavy duty home care hoist for the bariatric patient. The ALTO MKII 200 whilst being compact provides superior patient space through the use of SPACE LINK™ technology. The ALTO MKII 200 in fact offers more patient space than most other larger size lifters. The unique feature of SPACE LINK™ allows a patient to be rotated through 360° at full lift height, thus making the carers job easier and safer. The ALTO MKII 200 lifting range allows patients to be lifted from the floor, bed or chair with ease and safety. The ALTO MKII 200 is a powered unit using trusted industry leading LINAK components, giving a safe working load (SWL) of 200kg Options available with the ALTO MKII 200
Standard padded spreader bar
ALLEGRO pivot frame
Tri hook yoke
Four point yoke
Weighing device¹ The ALLEGRO CONCEPTS range of patient lifting equipment, including lifters, slings and accessories, has been designed and tested to comply with AS ISO 10535 – 2011, (Hoists for the transfer of disabled persons – Requirements and test methods) ¹ Doc Alto1.1

CAUTION - Weigh scale is not intended for clinical assessment.

ALTO 200 User Manual

|3

IMPORTANT SAFETY CONSIDERATIONS INTENDED USE OF THE PRODUCT The ALTO MKII 200 compact mobile patient lifting hoist has been designed to lift and transfer a less able person with the assistance of a carer. The ALTO MKII 200 should be used with one of the ALLEGRO range of patient slings, as assessed by a competent trained person. NB. Not all slings and accessories are compatible with this hoist. If you are unsure please contact ALLEGRO CONCEPTS. The correct and appropriate use of the ALTO MKII 200 hoist will reduce the risks associated with manual patient handling. The lifting / transferring task should be assessed & planned by a trained user.

SAFETY CONSIDERATIONS

Ensure that all users read this guide before operating the hoist.

Do not operate the hoist without training in the safe operation of hoists & slings. IF IN DOUBT DO NOT USE.

Only use slings which have been assessed as suitable by a competent trained professional. Read the relevant sling users guide which is provided with each sling, before use.

Do not use the hoist if there is any doubt about wear or damage to the unit. In particular the spreader bar or the ALLEGRO Pivot Frame.

Do not use the hoist if there is any fraying or stitch damage to the sling or if the sling is damaged in any other way. DO NOT EXCEED THE SAFE WORKING LOAD OF THE ALTO MKII 200 HOIST – 200kg

Doc Alto1.1

Ensure when the hoist is in use that the surrounding area is clear and the person being lifted is clear of all obstructing objects.

ALTO 200 User Manual

|4

Jib

Mast

Push Handle

Padded Spreader Bar Actuator

Battery & Control Box Base Chassis

Leg

Direction of Travel Doc Alto1.1

ALTO 200 User Manual

|5

ASSEMBLY INSTRUCTIONS ALTO MKII 200 The ALLEGRO range of patient lifting and transfer hoists are fully assembled, load tested and certified at the factory before being partially dismantled for packing and shipping. Use the instructions below as a guide to assemble your ALTO MKII 200 hoist. 1.

Remove lifter components from protective packing and lay out on a smooth surface to prevent damage to powder coating on lifter sub assemblies.

2.

Lift the mast assembly and slide into mast holder receiving socket on base chassis. Ensure the mast assembly is completely engaged in the mast socket. Tighten the locking clamp hex bolt to prevent movement between mast and base chassis.

3.

Attach lift actuator to jib, by aligning actuator clevis with actuator mount bracket. Insert bolt and tighten nylock nut.

4.

Attach push handle assembly with hex bolts supplied with handle assembly.

5.

Attach battery by clipping battery pack on top of control box.

6.

Plug the lift actuator cable into port 1 positioned on the underside of the control box, ensuring it is driven firmly home in the socket.

7.

Your ALTO MKII 200 hoist uses an electric leg adjustment; plug the leg actuator lead into port 2 positioned on the underside of the control box.

8.

Plug the handset lead into the large socket on underside of control box. (See next diagram) ensure alignment of tongue on handset plug with groove in control box handset connection port. When aligned press home firmly. A smear of Vaseline on the o ring may assist if plug is tight.

9.

Check operation of lifter via handset, ensuring that the RED EMERGENCY STOP BUTTON ON THE CONTROL BOX IS RELEASED. Turn the knob quarter turn clockwise to release.

Doc Alto1.1

ALTO 200 User Manual

|6

HOIST OPERATION AND CHARGING HANDSET

The handset activates the lift actuator by the use of two low pressure buttons, protected by a strong plastic cover. These are symbolised by arrows (diagram). The arrows indicate the direction of travel to raise or lower the hoist jib. When either button is released the jib will remain in position.

The ALTO MKII 200 hoist incorporates an actuator driven leg opening adjustment. Two buttons will be seen on the handset with arrows and symbolised legs indicating the direction of travel. This function allows an unrestricted range of leg adjustment.

The handset is also fitted with a battery indicator light. This will flash when the batteries reach a maximum discharge of 18 volts. NB the light will only flash when the hoist is under load.

The connection for the handset is located on the underside of the control box.

Handset Port

Leg Actuator – Port 2 Lift Actuator – Port 1

Doc Alto1.1

ALTO 200 User Manual

|7

ACTUATOR The ALTO MKII 200 mobile patient lifting hoist uses a LINAK single speed actuator with an emergency controlled lowering release handle. (twist red collar located at top of actuator shaft clockwise). This allows the patient to be lowered in the event of a fault in the hoist or deep discharged batteries.

CHARGING The ALTO MKII 200 is supplied with a LINAK external wall mount charger. This is powered by plugging the 3 pin plug into a standard 240V ac outlet To recharge the battery pack, perform the following steps 1) Release battery pack from control box by pulling the handle on the pack towards you. Use both hands to support the battery pack when removing or replacing it. 2) Clip the battery pack from the control box onto the charging unit, ensuring it is seated properly on the charger base 3) Charger will automatically activate the charging sequence CHARGING INDICATOR DISPALY
GREEN mains power on light will be illuminated when connected to 240 v power supply.

ORANGE LIGHT illuminated indicates battery currently charging.

ORANGE LIGHT will extinguish when battery pack is fully charged.

Doc Alto1.1

ALTO 200 User Manual

|8

ALTO MKII 200 External Charging Unit

CHARGING DOs & DON’Ts DO Do charge the battery whenever possible. This will extend the battery life. A large number of cycles can be obtained from operating on the batteries, but battery lifetime is reduced with frequent discharging.

Do inspect all cables particularly the mains power cable on the charger for any damage; replace where necessary.

Do stow the handset and if fitted with charger, the mains power cable when transporting the hoist.

Do clean the actuators, control box, charger, battery and handset at regular intervals to remove dust and dirt.

DON’T

Doc Alto1.1

Don’t allow the batteries to fully discharge before connecting to charger. The batteries are a lead acid gel type that can be trickle charged continuously and have a high current discharge capacity. The batteries are not the nickel cadmium type and must not be periodically fully discharged. Battery life is greatly reduced by deep or complete discharging of the batteries. Longer lifetime is obtained by maintaining fully charged batteries.

ALTO 200 User Manual

|9

LIFTING PROCEDURES

Carer should be fully conversant and trained in the use of lifter and sling. This will decrease patient apprehension and increase their co-operation and overall safety of the lifting process.

Where possible always pull the lifter for maximum safety and comfort.

Move the hoist slowly to avoid patient swing whilst standing.

The hoist should not be used on uneven surfaces or on an incline greater than 5 deg.

Never leave a patient in a sling unattended.

Ensure brakes of the chair, bed, trolley that the patient is being lifted from are locked.

The braking castors on the lifter should be off. This allows the lifter to create its own centre of gravity (C.G,) over the weight of the patient. N.B. This action may result in the lifter moving slightly during the initial phase of the lift.

GENERAL LIFTING PROCEDURE The information supplied below is not intended to be construed as a training manual but as a general guide to lifting procedure only.

Fit sling to patient (REFER TO SLING INSTRUCTION FOR USE). Manoeuvre the hoist around the patient, adjusting the legs to fit around chair, wheel chair etc. If lifting from a bed ensure under bed clearance is sufficient to manoeuvre the lifter legs.

Lower the spreader bar sufficiently to allow fitting of sling attachment loops onto the spreader bar hooks. Ensure spreader bar does not contact with patients face or body.

If using the ALLEGRO Pivot Frame, lower the Pivot Frame sufficiently to allow attachment of the keyhole buckles onto the Pivot Frame studs.

Use the handset to raise the hoist boom enough to take up the patient’s weight. At this point stop the lift, check all sling attachments are secure and that the sling is positioned correctly. Check patient comfort. Lower and realign sling if necessary.

Continue to lift until patient is clear of chair, bed etc. ensuring that during the course of the lift the patient is clear of any obstructions.

Doc Alto1.1

ALTO 200 User Manual

| 10

MOVING THE PATIENT A PATIENT HOIST IS PRIMARILY A LIFTING DEVICE. If possible always move patients from room to room in a wheelchair or other transport device. However, If you must move a patient while supported in a lifter the following are suggested:

Lower the patient so the feet are just off the ground. This enhances the patients’ perception of security.

Where possible always pull the lifter rather than push, in particular when changing direction or steering around corners.

Walk the rear of the hoist around so that it is heading in the new direction.

Whilst manoeuvring in a small or confined area, two carers will make the job easier.

Move the hoist smoothly and avoid abrupt stops and turns to minimise patient swing.

LOWERING THE PATIENT

Position the patient over the chair or bed to be lowered onto and begin the lowering procedure with the handset down button. Check to make sure the patient remains comfortable during descent. .

Doc Alto1.1

All General Purpose and Pivot slings have handles sewn onto the back of the sling. These will assist the carer to pull back the patient into the correct position for seating.

ALTO 200 User Manual

| 11

GENERAL MAINTENANCE To prolong the working life of the lifter and for trouble free operation it is recommended that periodic inspections should be performed routinely and as often as necessary. Periodic inspections should be performed by a person who is suitably qualified and well acquainted with the design, use and care of patient lifting hoists. If inspection reveals that the safety of the hoist is jeopardised in any way the hoist should be IMMEDIATELY WITHDRAWN FROM SERVICE, tagged as such and the owner notified.

MAINTENANCE GUIDE & CHECK LIST

General visual inspection of lifter. Check castors are tightly attached to legs. Check castors run & swivel freely, remove any hair & fluff from axle. Check castor brakes operate efficiently. Over haul castors & pack with grease. Inspect surfaces for scratches & chips Clean surfacers with a neutral detergent; remove any adhesive tape with orange or eucalyptus oil. Examine all moving parts and fasteners for wear and fatigue, lubricate and /or adjust as required. NB leg pivot bushes incorporate a Teflon coated pivot bush which requires minimal lubrication. Check tightness of bolt in leg bushes. Check linkages are secure in leg adjuster ball joints. Check all electrical components for correct operation. Check battery charger operation. Remove dirt & dust from actuator. Wipe actuator shaft with oiled rag (DO NOT use WD40 or equivalent.) Check SPACE LINK pivot link and regrease. Check spreader bar/tilt frame attachment to SPACE LINK. Remove bolt & regrease. Ensure SPACE LINK and attachments move freely. Check mast to boom pivot point, remove bolts and lightly regrease bush and retighten, ensuring free movement at pivot.

A MAJOR SERVICE SHOULD BE CARRIED OUT EVERY 12 MONTHS AS A MINIMUM REQUIREMENT. IMPORTANT: An annual load test to the safe working load (swl) is required for compliance with AS ISO 10535 – 2011 Doc Alto1.1

ALTO 200 User Manual

| 12

TROUBLE SHOOTING WARNING TROUBLE SHOOTING SHOULD ONLY BE CARRIED OUT BY ALLEGRO CONCEPTS AUTHORISED PERSONNEL FAMILIAR WITH BOTH USE, ELECTRICAL AND MECHANICAL FEATURES OF PATIENT LIFTING HOISTS. The following is a guideline only to general trouble shooting. Before carrying out any trouble shooting ensure that.

Red emergency stop button is released.

Maintenance procedures checked & followed.

All cable connections are secure.

Battery is fully charged. POSSIBLE FAULT

ACTION

Warning buzzer sounds within control box

Flat battery pack. Faulty battery pack.

Recharge battery. Replace battery.

Battery charger power indicator LED does not light up.

No mains connection. Internal fuse blown. Battery chargers is defective.

Plug into mains. Replace fuse. Repair/replace charger.

Actuator will not run and no relay click is heard from control box.

Control box is defective. Handset defective

Replace control box.

Actuator will not run via handset but control box relays click.

Actuator plug not pushed in to control box, Actuator defective. Control box defective.

Push firmly into correct port. Replace actuator or control.

Actuator cannot lift full load or runs slow.

Batteries not charged / defective.

Charge/replace batteries. Replace actuator.

No response from control box, no clicking of relays is heard.

Emergency stop button engaged. Hoist battery completely flat. Blown fuse in battery pack.

Actuator works in one direction only

Doc Alto1.1

Load too high for lifter. Actuator motor damaged.

Faulty control box.

Release emergency stop button. Charge battery. Replace/repair control box.

Handset defective. Control box defective.

Replace handset. Repair/replace control box.

ALTO 200 User Manual

| 13

ALTO MKII 200 SPECIFICATIONS Safe working load (SWL)

200kg

Base length

1150mm

External base width

645mm

Internal base width closed

578mm

Internal base width open

1130mm

Maximum internal length

860mm

Base width adjustment

Electric Adjustment

Base height / under bed clearance

125mm

Minimum height of spreader bar

300mm

Maximum height of spreader bar

1920mm

Hoisting range

1620mm

Height of centre suspension point @ max reach

134mm

Lifter weight

42kg

Minimum storage height

1350mm

Patient lift space

165mm

Under base height

50mm

Maximum hoist reach

1060mm

Minimum hoist reach

610mm

Maximum hoist reach @ maximum height

4400mm

Minimum hoist reach @ minimum height

430mm

Turning radius

1210mm

Weight of heaviest part (Base assembly)

17.5kg

Handle height

1000mm

Electrical approval

EN 60601-1

Sound level

< 40Db @ 1m

Operation force - Finger

< 4N

Hand

Doc Alto1.1

ALTO 200 User Manual

< 50N

| 14

WARRANTY ALLEGRO CONCEPTS PTY LTD warrants its products to be free from defects in materials and workmanship under normal use and service and will within the period stated below, from the date of purchase, repair or replace without cost to the original customer, any part assembly or portion thereof which shall be returned to ALLEGRO CONCEPTS PTY LTD and from OUR inspection shows to be defective.
Patient lifter including electronics - 2 years

Accessories on lifter - 2 years

Patient slings - 1 year

Weighing devices¹ - 1 year

Batteries - 3 months

ALLEGRO CONCEPTS PTY LTD cannot be held responsible for any personal injury, damage to the hoist or damage to property as a result of the improper or unsafe use of the product. No warranty claim shall apply where the product or any part thereof has been modified, varied, altered or damaged either accidentally or through improper or negligent use No warranty claim shall apply where the hoist is repaired or serviced by any persons not accredited by the authorised distributor. Warranty does not extend to items or components which may require replacement due to normal wear and tear (e.g. castors, mouldings and paint work ) for which ALLEGRO CONCEPTS PTY LTD nor its distributors can be held responsible.

BATTERIES Batteries carry a limited warranty from the original manufacturer which is subject to a stringent wear and tear clause. Any battery faults due to defect in original manufacture will normally become apparent within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse and accidental damage, and as such is not covered by the manufacturer’s warranty.

¹ Doc Alto1.1

CAUTION - Weigh scale is not intended for clinical assessment.

ALTO 200 User Manual

| 15

SLINGS ALLEGRO CONCEPTS PTY LTD manufactures a large range of patient lifting slings in both mesh and fabric to suit the ALLEGRO range of patient lifting hoists. A range of custom made to specification slings is available on request. SLING SIZES AVAILABLE • X small, • Small, • Medium,

• Large,

• X large,

• XX large

MAIN SLING CATEGORIES

General Purpose Sling

General Purpose Sling with Head Support

Pivot Sling

Amputee Sling

Doc Alto1.1

ALTO 200 User Manual

| 16

KEY TO SYMBOLS The following symbols are used on the lifter and attachments including the range of General Purpose and Pivot slings.

SWL Safe working load: this symbol represents the maximum load the lifter, sling or attachment is rated to for safe operation.

SLING CARE SYMBOLS Do not use bleach.

Wash at a max temp of 85º Celsius.

Do not iron.

Do not dry clean.

Do not tumble dry.

SLING MAINTENANCE AND CARE WARNING: Prior to use, inspect slings including webbing, straps and keyhole buckles for wear. Examine stitching for fraying, breakage and unravelling.

DAMAGED SLINGS SHOULD NOT BE USED.

PARTS LIST AND DESCRIPTION A full parts list is available upon request

Doc Alto1.1

ALTO 200 User Manual

| 17

LOG BOOK Service Type

Condition Report

Date:

Inspected by:

Signature:

Action taken:

Date:

Service Type

Condition Report

Date:

Inspected by:

Signature:

Action taken:

Doc Alto1.1

Date:

ALTO 200 User Manual

| 18

Service Type

Condition Report

Date:

Inspected by:

Signature:

Action taken:

Date:

Service Type

Condition Report

Date:

Inspected by:

Signature:

Action taken:

Doc Alto1.1

Date:

ALTO 200 User Manual

| 19

Distributed by:

30-32 James Street, Lidcombe, NSW 2141 Australia Phone: 02 9749 7812 Fax: 02 9749 2144 Email: sales@allegroconcepts.com.au www.allegroconcepts.com.au
