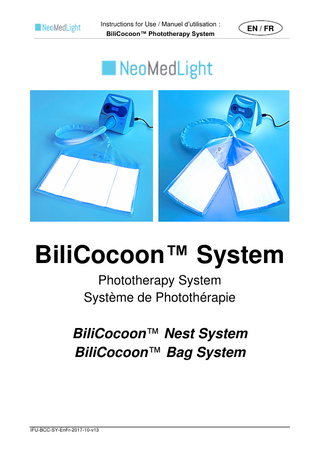

BiliCocoon System Instructions for Use Ver 13 Oct 2017

Instructions for Use : BiliCocoon™ Phototherapy System

EN

NeoMedLight 88-90 rue Frédéric Faÿs 69100 VILLEURBANNE, FRANCE

October 2017

User Responsibility These Instructions for Use describe the proper setup, use, and maintenance of the BiliCocoon™ phototherapy systema - the Device or the System. The Device is to be used exclusively by a properly trained user and should not be used if it is damaged, contaminated, or if parts are missing. Instead, please contact the supplier immediately. For questions about Device care and maintenance please contact the supplier or authorized staff member of your facility. The user is solely responsible for the risks to the patient, clinicians, third parties or properties or for a treatment with inadequate performances due to an abusive or improper use, inadequate maintenance, reparation or modifications made by unauthorized individuals. Any serious incident which occurs in relation to the device should be reported to the manufacturer and the local competent authority of the state in which the user and/or patient is established. You can contact NeoMedLight at the following address: quality@neomedlight.com. According to the US federal law the Device sale is restricted to licensed medical practitioners or clinicians or under their approval.

NeoMedLight declares that the Device complies with the European Directive 93/42/EEC. The CE mark was obtained and the Device was launched in 2016.

This product is to be handled with care and to be processed separately from consumer waste. Waste of Electrical and Electronic Equipment (WEEE) can pollute the environment and the product is to be disposed of according to its specific Directive 2012/19/EU and following the appropriate paths. Contact the local authorities or the supplier to determine the proper method of disposal of potentially biohazardous parts and accessories.

The term “System” is not used in this document with the meaning given by the standard EN 60601-1, definition 3.64. It stands for the group of interconnected parts which compose the medical device. a

IFU-BCC-SY-EnFr-2017-10-v13

1

Instructions for Use : BiliCocoon™ Phototherapy System

EN

1 PRODUCT DESCRIPTION AND APPLICATION 1.A Description The BiliCocoon™ System is a phototherapy system designed to treat unconjugated hyperbilirubinemia in the infant. It is a phototherapy device as defined by EN 60601-2-50, which emits light in the absorption spectrum of the bilirubin, from 430 to 490 nmb, thus reducing the bilirubin concentration in the body of infants.

1.B Intended use of the Device The BiliCocoonTM Phototherapy System is intended for the treatment of unconjugated hyperbilirubinemia c; in the population of neonates and infants under 3 months old and weighing less than 10kg. It can be used in the clinical setting or in the home.

1.C Additional information -

Only for the treatment of unconjugated hyperbilirubinemia, which is responsible for the majority of cases of neonatal jaundice.

-

Only with medical prescription

-

Only for the duration indicated in the treatment protocol

-

Target patient population: neonates and infants d.

-

Over the patient's entire body except for genitals and eyes – eye protection must be worn.

-

To be used with a single patient

-

To be used in hospital or at home: adapted to different environments for use (in an incubator, on a table, in a cradle, in the arms of a parent or caregiver).

-

Not to be used on damaged skin

2 SAFETY INFORMATION Types of Safety Precautions Warning It informs of a danger or a hazard for the infant or the operator.

Important It mentions the actions required to obtain the expected clinical results.

b

96% of light emission is in this wavelength range.

c The Device is not designed to treat cholestatic jaundice. d Under 3 months old and weighing less than 10 kg – definition according to EN 60601-2-50. The term “infant” used in this

document is used in compliance with this definition according to EN 60601-2-50. IFU-BCC-SY-EnFr-2017-10-v13

2

Instructions for Use : BiliCocoon™ Phototherapy System

EN

Caution It indicates a risk of damage to the Device

Prerequisites The BiliCocoon™ phototherapy system must only be used by clinicians who are qualified and aware of the treatment- and device-associated risks and benefits; or by laypersons who are properly trained and supervised by these clinicians. Warning

Home Use: see section 6 of these Instructions for Use. The BiliCocoon™ phototherapy device is not to be used for other medical indications or on different body parts than those recommended. Improper use may lead to an ineffective treatment (i.e. no benefits) or to potential risks to the patient's health (adverse events). Duration of Session:

Warning

Use the device only for the time prescribed. A use that does not take into account the treatment plan may lead to an ineffective treatment or to potential risks to the patient's health No modification of the BiliCocoon™ Phototherapy System is allowed. Do not use any accessories, detachable parts and materials not described in these instructions for use.

Warning

Warning

The use of a System which has been modified in terms of performances or by replacing its parts disregarding the manufacturer’s indications may lead to risks to the patient (e.g. adverse events), the user, other peoples or properties. Intensive phototherapy (>30 μW∙cm-2∙nm-1) may not be adapted to all infants (e.g. preterm infants with a weight ≤1000 g)

Blocking the light source or reducing the exposed body surface should be avoided Warning

Contraindications The BiliCocoon™ phototherapy device must not be used:

Warning

o

On patients with congenital porphyria

o

On patients with family history of porphyria

o

In conjunction with drugs or agents that are photosensitizers

o

On patients requiring a sterile environment or equipment and/or who present with skin lesions.

A use that does not take into account these contraindications may lead to an ineffective treatment (i.e. no benefits) or to potential risks to the patient's health (e.g. adverse events). Eye Protection

Warning

Prolonged exposure to phototherapy light may cause damage to the eyes. The use of the BiliCocoon™ Phototherapy System without suitable protection of the infant’s eyes may lead to risks to the infant’s health, including retinal damage. Eye protection should be used for other patients who are close to the phototherapy device. Patient monitoring during the phototherapy treatment

Warning

-

Bilirubin level: The infant’s bilirubin level should be regularly measured during the phototherapy treatment in accordance with the recommendations of the physician in charge.

-

Temperature: Phototherapy can affect the patient’s body temperature. The infant’s temperature must be monitored according to the recommendations of the physician who is responsible for the therapy. Because the phototherapy treatment may increase the body temperature, not controlling the infant’s temperature may lead to a risk to the patient.

IFU-BCC-SY-EnFr-2017-10-v13

3

Instructions for Use : BiliCocoon™ Phototherapy System -

EN

Fluid balance: Phototherapy can affect the patient’s fluid balance. Regularly monitor the patient’s fluid balance and take appropriate measures to maintain this balance during phototherapy.

Note: The Bilicocoon bag system does not create sweating, however if sweating occurs it can hardly be evacuated which can cause discomfort to the patient. To maximize the patient’s comfort in the Bilicocoon bag system we recommend, in case of sweating, to open the device laterally on one or both sides or to leave the patient’s arms outside of the device Side Effects for Caregivers and People near the Device

Warning

Prolonged exposure to the phototherapy device’s blue light may cause discomfort to caregivers such as eye irritation, nausea, headaches or dizziness. Caregivers, staff and others who are in close proximity to the Device could be sensitive to blue light and need to protect their eyes. Risk of Glare

Warning

Do not look at the light source (Pad Connection Port) when the Device is switched ON and the Pad is not connected. Hot Surface – Risk of burning When disconnected, the Pad and Light Box connecting surfaces will be hot. There is indeed a risk of burning (see section 5). Cutaneous Reactions

Warning

Cutaneous eruptions such as erythema may occur in infants treated with phototherapy. Skin Color Changes

Warning

Blue light may hinder clinical observation by masking skin color changes, such as cyanosis. Rare Allergic Reactions

Warning

Despite the biocompatibility evaluation tests conducted in accordance with the state of the art, rare allergic reactions may nevertheless occur. Variation of the Ambient Conditions

Warning

Variations of the ambient conditions (room temperature and humidity, sun exposure, nearby devices) may unfavorably affect the patient’s health, including their temperature or their fluid balance. Moreover, use of this device outside of the given operating conditions may compromise the product functionality. Reflective Foils

Warning

Never use reflective foils to increase the effectiveness of phototherapy treatment, it may hazardously increase the body temperature. Intravenous drugs and fluids

Warning

In order to prevent photochemical modifications, do not store drugs and infusion liquids in the radiation area. Combustible gases and flammable solutions

Warning

Do not use the BiliCocoon™ phototherapy system in oxygen-rich environments or in the presence of combustible gases, such as nitrous oxide, anesthetics or any other combustible or flammable product. Labels Integrity and Readability

Warning

In case labels are degraded, the information addressing the safety of the patient, users, third parties, and properties can be found in this document. Contact the supplier if information concerning the identification of the product or of associated products is not visible anymore. Make sure that there is no entanglement of the cord or cable at any time.

IFU-BCC-SY-EnFr-2017-10-v13

4

Instructions for Use : BiliCocoon™ Phototherapy System

EN

Warning

Symbol

Description

Symbol

Description

Manufacturer

CE Marking declaration according to Directive 93/42/EEC

Consult instructions for use

Caution: law prohibits dispensing without prescription

Refer to instruction manual/booklet

Date of manufacture

Protect infants’ eyes with opaque eye protection

Catalogue number

Type BF equipment

Serial number

The Light Box is a Class II electro-medical device

Pad – Light Box Pairing number

Waste of electrical and electronic equipment

Direct current

"ON" (power)

"OFF" (power)

Operating temperature range

Hot Surface – When the Pad is disconnected from the Light Box pay attention to the surfaces of the two elements that are in contact with one another during a therapy session. This symbol is on the product to warn the user about the hot surfaces.

Do not spray directly over the Connection

Do not bend the fibers at right angles

LED failure indicator

Device overheating indicator

IFU-BCC-SY-EnFr-2017-10-v13

5

Instructions for Use : BiliCocoon™ Phototherapy System

EN

Do not store more than four cartons on top of one another

Maintain the carton vertically following the arrows

Keep dry

Storage humidity range

QPS certification

Storage astmospheric pressure range

Fragile, to be handled with care

Abbreviation

Units and Description

°C

Degrees Celsius

(Unit of temperature)

kg

Kilograms

(Unit of mass)

µW∙cm-²∙nm-1

Microwatt per square centimeter per nanometer

(Unit of spectral irradiance)

λ

Wavelength

(Unit of wavelength)

h

Hour

(Unit of time)

min

Minute

(Unit of time)

nm

Nanometer

(Unit of length)

mm

Millimeter

(Unit of length)

W

Watt

(Unit of power)

Hz

Hertz

(Unit of frequency)

VAC

Alternating current Volt

(Unit of voltage)

VDC

Direct current Volt

(Unit of voltage)

dB(A)

Decibel : Sound level – A weighting

(Unit of acoustic intensity)

hPa

Hectopascal

(Unit of atmospheric pressure)

3 COMPONENTS / SUB-ASSEMBLIES AND USER CONTROLS 3.A System Description The BiliCocoon™ phototherapy system is composed of a blue light electronic generator – the Light Box – and of a light-emitting fabric – the Pad – which transmits the blue light to the infant. Light Box and Pad are paired in order to emit light with a peak between 430 and 490 nm and a spectral irradiance of 35 µW∙cm-²∙nm-1 (± 15%). The Light Box is connected to the power grid through a specific external power module. The BiliCocoon™ system is used with the BiliCocoon™ Disposable, a non-woven disposable designed to fit the Pad.

IFU-BCC-SY-EnFr-2017-10-v13

6

Instructions for Use : BiliCocoon™ Phototherapy System

EN

Physical Characteristics Light Box Dimensions Light Box Weight

215 x 198 x 160 mm3 1.4 kg

Nest Pad Dimensions

Effective light-emitting surface of 40 ± 0.5 cm x 30 cm Total length 150 ± 4 cm

Bag Pad Dimensions

2 light-emitting surfaces of 20 ± 0.5 cm x 30 cm Total length 155 ± 4 cm

Pad Weight Optical Fibers Cable Protection Connection Power Cable

< 1 kg Flexible, opaque Approximate length 100 cm Polyurethane enclosure which is translucent on the emitting side and opaque on the non-emitting one Plastic 3.5 ± 0.5 m

Technical Features Mean Spectral Irradiance

Power Supply

35 µW∙cm-2∙nm-1 ± 15% with disposablee. An infant would receive a lower dose if not positioned in contact with the disposable. The measurement is to be performed with the Ohmeda (GE) BiliBlanket Lightmeter II. Voltage : 100 VAC – 240 VAC Input Frequency : 50 Hz - 60 Hz AC power plugs compatible with Europe and North America Voltage : 12 VDC Output Current intensity : 7.5 A max Power : 90 W max

e

This value is measured in direct contact with the disposable. The irradiance value verification should be performed without the disposable as explained in § 4.C

IFU-BCC-SY-EnFr-2017-10-v13

7

Instructions for Use : BiliCocoon™ Phototherapy System

EN

LEDs 6 LEDs of 15 W max power and emitting between 400 and 550 nm Characteristics The BiliCocoon™ System has an expected lifetime of at least 8000 h, corresponding to Lifetime approximately 7 years of regular use at ambient temperature. f Sound Level 37 dB(A) at 1 meter

Environmental Conditions Disregarding the operating and storage conditions may lead to the Device deterioration and failures, therefore creating risks to the patient, the users, third parties or properties. IP21 protection for the Light Box: protection against the ingress of solid objects larger than 12.5 mm – e.g. a finger won’t have access to a hazardous part – and of dripping water – vertically falling drops won’t have harmful effects. Although the shell provides protection against liquid ingress, the user must take precautions to avoid the contact of the Device with liquids, which could cause an electrical hazard.

Warning

IPX3 protection for the Pad: protection against the ingress of solids of all size and the ingress of direct sprays of water up to 60° from vertical – in these conditions the water ingress won’t have harmful effects. Although the enclosure provides protection against liquid and solid ingress, the user must take precautions to prevent the infiltration of fluids, especially in the Connection. Do not place the system close to a source of radiant heat flow (e.g. radiant warmer). It may impact the proper functioning of the BiliCocoon™ system. Do not place the system close to a source of moisture like a nebulizer or a steam kettle. The moisture may affect the Light Box proper functioning and safety. Risk of electric shock. Avoid exposure to environments with excessive dust. Lint and dust may settle in the Light Box or on the surfaces meant to transfer blue light: the consequence would be an improper functioning of the System and/or the deterioration of its performances. Operating Conditions INDOOR use only. The Device is not be used while in motion. The Pad and the disposable can be placed in the incubator with the infant. The Light Box must be placed outside the incubator. Temperature range: from 10 to 35°C g Relative humidity range: from 15 to 90%, without condensation

Warning

Atmospheric Pressure range: from 700 to 1060 hPah Ensure that the air inlets are not covered or obstructed in order to avoid the Light Box overheating. The power supply to be used is the MEGMEET MANGO100-12B. The use of a different power supply may lead to risks to the patient, users, third parties, or properties. Storage Conditions between uses INDOOR storage only – do not leave the system exposed to the sun. A prolonged exposure to sun light may lead to the deterioration of the Pad optical fibers and to the system’s performances.

Warning

Temperature range: from -25 to 50°C i Relative humidity range: from 10 to 90%, without condensation Atmospheric Pressure range: from 700 to 1060 hPa

f

Value of sound pressure. 50 - 95 °F h Equivalent Altitude : 0 – 3000 m (0 – 9842.52 feet) i -13– 122 °F g

IFU-BCC-SY-EnFr-2017-10-v13

8

Instructions for Use : BiliCocoon™ Phototherapy System

Important

EN

The Pad emitting surface should be stored flat, do not ever bend or stretch the emitting surface optical fibers. Do not ever bend the optical fibers at right angles. The cable must not be coiled more than one and a half turns. A manipulation that does not follow the recommended instructions may damage the optical fibers and affect the Pad lighting performances or lead to a risk to the patient's health. Transport and Storage Conditions for Packaged Product INDOOR storage only. Temperature range: from -25 to 50°C j

Warning

Relative humidity range: from 10 to 90%, without condensation Atmospheric Pressure range: from 504 to 1060 hPak

3.B Light Box Features The BiliCocoon™ Light Box is an electronic device incorporating LEDs and emits between 430 and 490 nm. This emission range corresponds to the absorption spectrum of bilirubin, with this light leading to bilirubine conversion and elimination without the liver intervention. The Light Box includes an ergonomic handle which allows an intuitive grasp.

1

Ergonomic handle

2

Front panel with display and user controls

3

Connection Port with the lenses which transfer the blue light to the Pad optical fibers

4

Side ventilation (air inlets): DO NOT OBSTRUCT

5

Back ventilation (air inlets) with dust filter (inside): DO NOT OBSTRUCT

6

Power socket (to be connected to the external power module)

7

USB Port

NOT OPERATIONAL, DO NOT USE. The symbol “CAUTION” is close to the USB port to recall not to use this port.

Controls Controls can be used while the user is wearing medical gloves.

j k

-13 – 122 °F Equivalent Altitude : 0 – 5500 m (0 - 18044,62 feet)

IFU-BCC-SY-EnFr-2017-10-v13

9

Instructions for Use : BiliCocoon™ Phototherapy System

EN

1

Power switch

2

Digital Display Screen: Session Time (format: HH:MM, where HH stands for the hours and MM for the minutes): it’s the time remaining before the session’s end. The colon between HH and MM flashes during an ongoing phototherapy session. Total Time (format: HHHH, which stands for the hours): it’s the total time of use of the Device. The user can obtain this information by pressing the RESET button for 10 seconds from the system startup. This timer should not, under any circumstance, be used to evaluate the phototherapy treatment duration.

3

+ and – controls: to set session time. The session time can be set between 00:10 (= 10 min) and 99:50 (= 99 h and 50 min). The minimum session time increment or decrement is 10 min.

4

RESET button to reset session time. The user can verify that the light indicators properly light up by pressing this button for 10 seconds from the system startup.

5

Operation indicator: blue light strip Continuous light: Therapy session running Flashing light: Therapy session is configured but Pad is disconnected or not properly connected. Light Off: A therapy session is neither ongoing nor configured.

6

Overheating indicator Continuous light: Fan failure -

7

Flashing light: Light Box overheating during treatment

LED failure indicator -

Continuous light: Failure of one or more LEDs

For more information on these failures, please refer to section 5.E “Failures and possible resolutions”.

3.C Pad Technical Features The Pad is a woven fabric made of textile and optical fibers covered with a polyurethane enclosure. The Pad Connection enables the transfer of blue light between the Pad and the Light Box.

IFU-BCC-SY-EnFr-2017-10-v13

10

Instructions for Use : BiliCocoon™ Phototherapy System

1. Lighting Surface

1. Lighting Surfaces

2. Cable

2. Cable

3. Connection

3. Connection

EN

3.D Technical Features of the Disposable Important

Never use the BiliCocoon™ system without the BiliCocoon™ Disposable

The BiliCocoon™ Disposable is a single-use, single-patient device, which ensures the system cleanliness during a phototherapy treatment. (See the BiliCocoon™ Disposable Instructions for Use) The BiliCocoon™ Bag Disposable is designed to be used with the BiliCocoon™ Bag Pad. The BiliCocoon™ Nest Disposable is designed to be used with the BiliCocoon™ Nest Pad.

4 INSTALLATION AND USE Important Beforehand, read this manual, paying particular attention to its warnings.

Warning

The phototherapy system may increase the patient’s body temperature when it’s used in combination with a thermotherapy system (e.g. infant incubators, infant transport incubators, infant radiant warmers, devices supplying heat via blankets, pads or mattresses). In this case the user should measure the infant’s body temperature directly (i.e. on the skin’s surface) and use the baby controlled mode of these devices, otherwise the set air temperature of the incubator or the heater output of the radiant warmer or heated mattress has to be adjusted according to the body temperature measurements. Place the Light Box outside of these systems.

4.A Light Box Positioning The BiliCocoon™ should only be used according to the described operating conditions (see section 3.B Light Box Features). If the Light Box was stored under environmental conditions outside of the operating condition range, place the Device in the proper operating conditions for at least 1 hour before using it and let its temperature stabilize.

IFU-BCC-SY-EnFr-2017-10-v13

11

Instructions for Use : BiliCocoon™ Phototherapy System

EN

1. Verification •

Verify that the Light Box is not damaged

•

Check before each use that the power cord and the power supply do not show any abnormality. Risk of Electric Shock

Warning

Disregarding the verification instructions may inhibit the detection of a system malfunction or failure and lead to risks to the patient’s health or to the user.

2. Positioning: •

Place the Light Box on a flat, stable surface

•

Take care not to block the side (left as in the picture and right) and rear air inlets.

•

Make sure not to position the Device or the external power supply so that the power cord would be difficult to unplug in case of emergency.

•

Do not use adjacent to or stacked with other equipment.

•

Consider not to place the infant too close (< 30 cm l) to the Light Box.

Warning

If adjacent or stacked use is necessary, the Light Box should be observed to verify normal operation in the configuration in which it will be used.

3. Connection of the Power Supply to the Light Box •

Connect the Power Supply in the power socket

4.B Pad Setup 1. Verification and Cleaning •

Make sure the Pad enclosure does not present sharp edges which may injure the infant.

•

Make sure the Connection is not broken

•

Clean the Pad before and after each use (see Chapter 5.C Pad Cleaning)

•

Check the number to the right of the "PAIR" symbol on both the Pad and on the Light Box labels: these numbers must match.

l ≈ 11.8 inches

IFU-BCC-SY-EnFr-2017-10-v13

12

Instructions for Use : BiliCocoon™ Phototherapy System

EN

If the following defects are detected, discontinue use of the Pad:

Warning

-

Cracks or holes in the polyurethane enclosure

-

Cracked or broken Connection

-

Presence of sharp edges

Do not cut or scratch the Pad Warning

Take care to avoid dropping or handling the Device in a way that may cause the Connection to deform.

2. Positioning •

Place the Pad on a flat, stable surface

3. Connection of the Pad with the Light Box •

Connect the Pad with the Light Box by inserting the Pad Connection (1) into the Connection Port (2).

•

Make sure the Pad and the Light Box are well connected.

•

Make sure the cable and the light-emitting area are not bent or stretched.

Warning

Use or manipulation of the Pad outside of these recommendations may damage the optical fibers and affect the Pad lighting performances or lead to a risk to the patient's health.

4.C Verification of the Irradiance Value Prior to insertion of the Pad in the disposable, measure the irradiance value on the Pad lighting surface. Warning

If this step is neglected, there is a risk of under-exposure – leading to an ineffective treatment – or a risk of over-exposure.

Recommended Radiometer: BiliBlanket Lightmeter II from Ohmeda (General Electrics). For more information on how to use the radiometer refer to its instructions for use.

IFU-BCC-SY-EnFr-2017-10-v13

13

Instructions for Use : BiliCocoon™ Phototherapy System

EN

The blue light emission is stable from the session start: irradiance measurements can be taken as soon as the phototherapy session is active.

1. Remove the Receptor Cap (1) 2. Switch On the Radiometer using the ON/OFF switch (2) on the side of the device as in the picture. Check that the Hold-Run (3) is released (i.e. the display reading is not frozen). In case the display is frozen push the Hold-Run to release it.

3. Measure the blue light from the environment while the Device is turned off. Place the radiometer with the Light receptor dome (4) oriented upward as in the picture on the right. The displayed value should be lower than 1 μW∙cm2 ∙nm-1.

4. Connect the Pad to the Light Box, switch the Device on and launch a test session. The Pad now emits blue light. See section 4.E. 5. To make a measurement place the light receptor dome (4) in contact with the surface as in the picture – in this position the user looks at the back of the radiometer. 6. Place the light receptor dome on the measurement point n° 1 as in the picture 7. Leave the light receptor dome in this position for few seconds.

8. Press the Hold-Run (3) which freezes the measurement displayed on the screen. 9. Turn the radiometer, read and note the value displayed on the screen (5). 10. Push the Hold-Run (3) again to unfreeze the displayed measure. 11. Repeat steps 5 to 10 for the 7 other measuring points as shown in the pictures.

IFU-BCC-SY-EnFr-2017-10-v13

14

Instructions for Use : BiliCocoon™ Phototherapy System

For the Nest Pad Consider the 8 measuring points as identified below

EN

For the Bag Pad Consider the 4 measuring points on each small Pad as identified below (8 measuring points totally)

12. Calculate the mean value over the eight measures. This value should be in the range defined in the table below. Average spectral irradiance (I - µW∙cm-²∙nm-1) over the eight points

Conclusion

38 < I < 43m

Optimal Irradiancen

I < 38 or I > 43

Out of specification – refer to Section 5.F “Maintenance Operations”

Important

Refer to section 5.E in case the irradiance value is outside of the defined range and inform the manufacturer.

Important

The use of a BiliCocoon™ system with a mean irradiance value exceeding the defined range upper limit, may deteriorate the Pad’s optical fibers.

4.D Setup of the Disposable and Positioning of the Infant For any information on the Disposable and its use, please refer to the last version of the Instructions for Use of the BiliCocoon™ Disposable. Warning

The BiliCocoon™ Disposable is not intended to be used with a phototherapy treatment system other than the BiliCocoon™. The BiliCocoon™ Disposable is a single use, single-patient medical device. It should be used respecting the usual hygiene precautions. There is indeed a cross-contamination risk if the Disposable is used for more than one patient. Never place the infant directly on the Pad. Always use the Disposable specifically designed for the BiliCocoonTM.

Warning

The Disposable is not designed for re-use and should not be cleaned, disinfected, or placed in contact with the cleaning products used to clean the BiliCocoon™ Pad. Not using the disposable or having the cleaning products in contact with the infant may lead to allergic reactions for the patient.

m The user should refer to the radiometer instructions for use and take into account its accuracy (±3%).

n Defined according to: “Management of Hyperbilirubinemia in the Newborn Infant 35 or More Weeks of Gestation“, Pediatrics

2004; 114:1 297-316; doi:10.1542/peds.114.1.297, prepared by the AMERICAN ACADEMY OF PEDIATRICS. IFU-BCC-SY-EnFr-2017-10-v13

15

Instructions for Use : BiliCocoon™ Phototherapy System

EN

Infants should wear a diaper during a phototherapy session. Warning

Do not place the infant too close (< 30 cmo) to the Light Box. Warning

Warning

Check that the packaging of the BiliCocoon™ Disposable is not damaged: The use of a device whose cleanliness is intended as a main feature and controlled thereof, but whose packaging is damaged, may lead to a risk to patient's health. Ensure that the Pad is clean and dry. The BiliCocoon™ Disposable should not come into contact with the cleaning and disinfectant agents used to clean the Pad.

Warning

Select the Disposable according to the type of Pad (Nest Disposable or Bag Disposable)

Important and install the Disposable according to the Disposable Instructions for Use.

Important We recommend not to use the Bag System for babies weighing less than 2500g Ensure that the Pad is inserted right to the end of the BiliCocoon™ Disposable pocket and that the Disposable pocket hasn’t been damaged by this insertion. Warning

Warning

Place the infant on the Disposable with the baby’s legs towards the Pad cable. Never place the infant's head close to the Pad cable. This positioning may otherwise lead to a risk of strangulation for the patient. Ensure that the maximum of the skin surface area will be in contact with the light-emitting

Important area.

Once the infant has been properly installed protect the infant’s eyes with suitable eye protection. Warning

The infant in the BiliCocoon™ Nest System: the Nest Pad is inserted in the Nest Disposable; the infant is then placed on the disposable in the zonep defined by the red line as in the picture. The infant in the BiliCocoon™ Bag System: the Bag Pad is inserted in the Bag Disposable; the infant is then placed on one of the internal faces of the disposable in the zoneq defined by the red line as o

≈ 11.8 inches

p The zone defined by the dashed black line represents the part of the Device the infant is in contact with. Please refer to the

Instructions for Use of the BiliCocoon™ Disposable for more details. q The zone defined by the dashed black line represents the part of the Device the infant is in contact with. Please refer to the Instructions for Use of the BiliCocoon™ Disposable for more details. IFU-BCC-SY-EnFr-2017-10-v13

16

Instructions for Use : BiliCocoon™ Phototherapy System

EN in the picture; the other surface is folded on the infant’s chest.

XXX

4.E Performing a Treatment Precautions Before beginning the treatment check the installation and the Light Box / Pad connection. Warning

When the Device is switched ON but the Pad is not connected, do not look at the Pad Connection port.

Warning

During the session or at its end, the temperature of the Connection surface which is in contact with the Light Box can be high. There is a risk of burning – see section 5. Take care in handling the Device.

Warning

Keep the Light Box steady with one hand when disconnecting the Pad through its Connection. Pulling the Connection without keeping the Light Box may lead the Light Box to fall, be damaged and harm users and other people.

Setting a Session 1. Turn ON the Light Box using the ON/OFF black switch (1) 2. Set the session time (HH:MM) using the + and – controls (2). If a session was previously set refer to the following section. 3. The session automatically begins in 5 seconds with the Device emitting blue light through the disposable. Check that the Pad and the Light Box are well connected: the Blue line feature light (3) should be continuous. In case the light flashes or is off, refer to the table "Failures and possible resolutions". 4. When the session starts all the controls become inactive. To reactivate them, switch OFF and ON the Device. 5. The session will stop automatically when the session time will be 00:00.

Resetting a Session or Changing the Settings of a Session 1. Switch OFF (1) 2. Switch ON (1) 3. To set the session time to zero press the RESET (4) button within 5 seconds from the switch ON 4. Set the session time (HH:MM) using the + and – controls (2) within 5 seconds after powering up.

Interrupting a Session 1. Switch OFF (1) to interrupt the session. 2. Switch ON (1) to restart a session: The system displays the last session time.

IFU-BCC-SY-EnFr-2017-10-v13

17

Instructions for Use : BiliCocoon™ Phototherapy System

EN

Stopping the System 1. Switch OFF (1) 2. Unplug the power supply from the power socket 3. Unplug the Pad from the Connection Port 4. Clean the Pad and the Light box according to the specific instructions (See Section 5.C) In case of power failure, the Device keeps the session time recorded. The phototherapy system can be disconnected from the power grid by unplugging the specified power supply.

5 CARE AND MAINTENANCE There is a risk of contamination or damage to the Device in case of insufficient cleaning and / or non-compliance with the cleaning instructions. No care or maintenance while the BiliCocoonTM system is being used with a patient. Warning

All care and maintenance operations must be performed when the system is disconnected from the power grid. Risk of burning When the Pad is disconnected from the Light Box, pay attention to the surfaces of these two elements which are in contact with each other during a therapy session. These surfaces may be hot. The dedicated warning symbol is placed close to these surfaces. There is a risk of burning for people touching these surfaces for a prolonged period and in the 5 min immediately after the Connection withdrawal. Wait 5 min after disconnecting before initiating any care or maintenance operation on the hot surfaces.

5.A List of Authorized Cleaning Agents and Disinfectants The efficiency of cleaning and disinfection of the system has been demonstrated and validated with an EPA-registered cleaning and disinfectant product, specifically with CaviWipes™ from METREX. To clean and disinfect the product, use an EPA-registered hospital disinfectant, such as CaviWipes™. Do not use products containing: Warning

-

Caustic or abrasive cleaners

-

Powerful cleaning solutions (acidic or alkaline solutions)

-

Iodine-based solutions

-

Products based on phenolic compounds, which can lead to increased bilirubin levels in infants

Never immerse any component of the phototherapy system in a liquid and never spray cleaning and disinfectant agents directly on the surface of the Device. Warning

IFU-BCC-SY-EnFr-2017-10-v13

18

Instructions for Use : BiliCocoon™ Phototherapy System

EN

5.B Light Box Cleaning Important The Light Box must be cleaned after each use. Do not autoclave or gas sterilize the Light Box Warning

1. Wait 5 min after turning OFF the Light Box before start cleaning. 2. Unplug the power cord of the Light Box from the power socket before cleaning (risk of electric shock)

Warning

3. Moisten a soft, clean cloth with a mild cleaning agent (refer to the list of allowed products in § 5.A.). Clean the outside of the Light Box and the power cord with the cloth. Be careful not to let the cleaning agent infiltrate into the Light Box. 4. Moisten another soft, clean cloth with water. Wipe the outside of the Light Box with it taking care to remove any cleaning agent residue. Take care when cleaning the Connection Port to avoid damaging the optical lenses. 5. Perform a visual inspection of the LightBox to assure that it is clean. Otherwise repeat the previous instructions until there is no more soil observed.

Warning

6. Before use, make sure the Light Box is completely dry.

5.C Pad Cleaning & Dinsinfection

Warning

The Pad must be cleaned and disinfected before and after each use and between each patient. Do not expose the Pad to sunlight or ultraviolet light Do not autoclave or gas sterilize the Pad Do not bleach Do not tumble dry

Caution

Do not iron Do not dry clean Cleaning

Warning

1. Make sure the Pad is disconnected from the Light Box before cleaning 2. Under running tap water at room temperature (+15°C/25°C), wipe the device unilaterally using a soft, lint-free cloth for a minimum of 1 minute 3. Wipe the device unilaterally using one moisten soft, clean cloth with a suitable cleaning agent, or use a pre-saturated wipe with a suitable cleaning agent to ensure complete removal of all gross debris. Repeated use of the product may be required to ensure that the surface is free of visible soil.

Caution

4. Use a second moistened clean cloth with a suitable cleaning agent, or pre-saturated wipe adapted to medical device cleaning (refer to the list of allowed cleaning agents). Wipe the device unilaterally to thoroughly wet the surface. Give special attention to hard to reach areas and dirtiest parts of the device. Repeted use of the product may be required to ensure that the surface remains visibly wet for a minimum of 2 minutes at room temperature (+15°C/25°C). Take care when cleaning the Pad connection to avoid damaging the optical fiber

IFU-BCC-SY-EnFr-2017-10-v13

19
