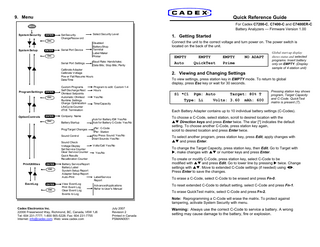

![9. Menu Quick Reference Guide For Cadex C7200-C, C7400-C and C7400ER-C Battery Analyzers - Firmware Version 1.00 MENU System Security ENTER ESC System Setup ENTER Set Security ChangePassw ord Serial Port Device ESC Serial Port Settings Select Security Level Connect the unit to the correct voltage and turn power on. The power switch is located on the back of the unit. Disabled BatteryShop Terminal Label Maker Printer Baud Rate: Handshake; Data Bits; Stop Bits; Parity Calibrate Adapter Calibrate Voltage Pow er Fail Resume Hours Date/Time Program Settings ENTER ESC OptionControls Custom Programs Self Discharge Rest Ohmtest Setpoints Automatic Ohmtest Runtime Settings Charge Optimization LifeCycle Counter dT/dt Termination ENTER Company Name ESC Battery Startup Prog/Target Changes Sound Control Sound Check Voltage Display Set Service Counter Clear Service Counter Quick Results Recalibration Counter PrintUtilities ENTER ESC Event Log ENTER ESC Battery Service Report Battery Label System Setup Report Adapter Setup Report Auto-Print View Event Log Print Event Log Clear Event Log Events to Log 1. Getting Started EMPTY EMPTY EMPTY Auto QuickTest Prime NO ADAPT Global start-up display shows status and selected programs. Insert battery only on EMPTY. (Display sample of 4-station unit) 2. Viewing and Changing Settings To view settings, press station key in EMPTY mode. To return to global display, press Esc key or wait for 30 seconds. Program to edit: Custom 1-4 Hours S1 *C1 Yes/No Pgm: Auto Type: Li Time/Capacity Target: 80% T Volts: 3.60 mAh: 600 Pressing station key shows program, Target Capacity and C-Code. QuickTest matrix is present (T). Each Battery Adapter contains up to 10 individual battery settings (C-Codes). Ask for Battery ID#: Yes/No Ask for Battery C-Code: Yes/No Per: C-Code Per: Station Key Press Sound: Yes/No Alert Sounds: Yes/No Volts/Cell: Yes/No Yes/No To choose a C-Code, select station, scroll to desired location with the ST Direction keys and press Enter twice. The star [*] indicates the default setting. To choose another C-Code, press station key again, scroll to desired location and press Enter twice. To select another program, press station key, press Edit, apply changes with ST and press Enter. To change the Target Capacity, press station key, then Edit. Go to Target with X, make changes with ST or number keys and press Enter. To create or modify C-Code, press station key, select C-Code to be modified with ST and press Edit. Go to lower line by pressing X twice. Change settings with ST. Move to extended C-Code settings (if needed) using WX. Press Enter to save the changes. Label/Service Report To erase a C-Code, select C-Code to be erased and press Fn-0. AdvancedApplications Refer to User's Manual To reset extended C-Code to default setting, select C-Code and press Fn-1. To erase QuickTest matrix, select C-Code and press Fn-2. Note: Reprogramming a C-Code will erase the matrix. To protect against tampering, activate System Security with menu. Cadex Electronics Inc. 22000 Fraserwood Way, Richmond, BC, Canada, V6W 1J6 Tel: 604 231-7777; 1-800 565-5228; Fax: 604 231-7755 Internet: info@cadex.com; Web: www.cadex.com July 2007 Revision 2 Printed in Canada PSMAN0051 Warning: Always use the correct C-Code to service a battery. A wrong setting may cause damage to the battery, fire or explosion.](https://images.bioclinicalservices.com.au/c4MJHxzeHqjp6xzM49RpkBiX/320w/Cadex%20-%20C7200%2C%20C7400%2C%20C7400ER%20Quick%20Reference%20Guide%20English%20Rev%202.png)
Preview
Page 1
9. Menu
Quick Reference Guide For Cadex C7200-C, C7400-C and C7400ER-C Battery Analyzers - Firmware Version 1.00
MENU
System Security
ENTER ESC
System Setup
ENTER
Set Security ChangePassw ord
Serial Port Device
ESC
Serial Port Settings
Select Security Level
Connect the unit to the correct voltage and turn power on. The power switch is located on the back of the unit.
Disabled BatteryShop Terminal Label Maker Printer Baud Rate: Handshake; Data Bits; Stop Bits; Parity
Calibrate Adapter Calibrate Voltage Pow er Fail Resume Hours Date/Time
Program Settings ENTER ESC
OptionControls
Custom Programs Self Discharge Rest Ohmtest Setpoints Automatic Ohmtest Runtime Settings Charge Optimization LifeCycle Counter dT/dt Termination
ENTER
Company Name
ESC
Battery Startup Prog/Target Changes Sound Control Sound Check Voltage Display Set Service Counter Clear Service Counter Quick Results Recalibration Counter
PrintUtilities
ENTER ESC
Event Log
ENTER ESC
Battery Service Report Battery Label System Setup Report Adapter Setup Report Auto-Print View Event Log Print Event Log Clear Event Log Events to Log
1. Getting Started
EMPTY
EMPTY
EMPTY
Auto
QuickTest
Prime
NO ADAPT
Global start-up display shows status and selected programs. Insert battery only on EMPTY. (Display sample of 4-station unit)
2. Viewing and Changing Settings To view settings, press station key in EMPTY mode. To return to global display, press Esc key or wait for 30 seconds. Program to edit: Custom 1-4 Hours
S1 *C1
Yes/No
Pgm: Auto
Type: Li
Time/Capacity
Target: 80% T
Volts: 3.60
mAh: 600
Pressing station key shows program, Target Capacity and C-Code. QuickTest matrix is present (T).
Each Battery Adapter contains up to 10 individual battery settings (C-Codes). Ask for Battery ID#: Yes/No Ask for Battery C-Code: Yes/No Per: C-Code Per: Station Key Press Sound: Yes/No Alert Sounds: Yes/No Volts/Cell: Yes/No Yes/No
To choose a C-Code, select station, scroll to desired location with the ST Direction keys and press Enter twice. The star [*] indicates the default setting. To choose another C-Code, press station key again, scroll to desired location and press Enter twice. To select another program, press station key, press Edit, apply changes with ST and press Enter. To change the Target Capacity, press station key, then Edit. Go to Target with X, make changes with ST or number keys and press Enter. To create or modify C-Code, press station key, select C-Code to be modified with ST and press Edit. Go to lower line by pressing X twice. Change settings with ST. Move to extended C-Code settings (if needed) using WX. Press Enter to save the changes.
Label/Service Report
To erase a C-Code, select C-Code to be erased and press Fn-0.
AdvancedApplications Refer to User's Manual
To reset extended C-Code to default setting, select C-Code and press Fn-1. To erase QuickTest matrix, select C-Code and press Fn-2. Note: Reprogramming a C-Code will erase the matrix. To protect against tampering, activate System Security with menu.
Cadex Electronics Inc. 22000 Fraserwood Way, Richmond, BC, Canada, V6W 1J6 Tel: 604 231-7777; 1-800 565-5228; Fax: 604 231-7755 Internet: info@cadex.com; Web: www.cadex.com
July 2007 Revision 2 Printed in Canada PSMAN0051
Warning: Always use the correct C-Code to service a battery. A wrong setting may cause damage to the battery, fire or explosion.
Learn
3. Servicing a Battery Insert battery into Battery Adapter and press Enter to verify settings. If correct, press Enter again to start service. To change settings, press Edit, apply changes and press Enter. To change C-Code, go to correct location with ST and press Enter twice.
S1 Discharge
Cap:98%
3.10V/Cell
120mΩ
-600mA
25°C
1:30
Sample of display during battery service; Cap % advances if flashing; mΩ is taken during service.
4. Printing
Improves QuickTest matrix by scanning additional batteries (3-8h). Important: Run batteries in sequence from high to low capacity. QuickTest Checks battery state-of-health in 3 minutes. Applies brief charge or discharge if outside range. (16K adapters only) Custom Basic
Allows four separate user-defined programs. Press X to return to Basic Programs.
6. Target Capacity 90-100% 80% 60-70% Note:
Critical applications; fewer batteries will pass. Recommended nominal setting. Less stringent applications; more batteries will pass. The target setting does not affect the charge level; the batteries are always fully charged.
To print, select station and press Print key, scroll to desired print option with ST and press Enter. Select Port Device with menu (see 9. Menu, System Setup).
7. Short Key Functions
5. Programs
From Edit Display
Basic Programs
Fn-0
Deletes C-Code
Fn-5
Views Service Counter
Auto
Exercises battery and applies Recondition (nickel-based batteries only) if the Target Capacity cannot be reached.
Fn-1
Resets extended C-Code to default settings
Fn-7
Charge
Applies fast charge only; no capacity readings taken.
Views Firmware Version Calibrates Adapter
Prime
Prepares a new battery for field use by repeated cycling until maximum capacity is reached.
Fn-2
Erases QuickTest matrix Copies single C-Code
Fn-9
QuickSort
To rapidly sort Li-Ion, 3.6V, 500-1500mAh batteries. Press X to enter Advanced Programs
Copies all C-Codes from one adapter to another Matrix Protect
Alt-0
Advanced
Enters unique names for C-Codes
Stn Key
Advanced Programs
Common functions can be set with the Fn or Alt with number key.
Fn-3 Fn-6 Fn-9 Alt-Edit
SelfDCH
Tests battery self-discharge.
LifeCycle
Cycles battery continuously until capacity drops to target setting.
DCHOnly
Discharges battery, then stops.
8. Abbreviations
ExtPrime
Applies 16h trickle charge, then Prime. Used for stored batteries.
OhmTest
Measures internal battery resistance.
RunTime
Provides 3 discharge levels, set in hours and minutes (5-5-90).
Boost
Wakes up dead batteries, applies 3 min slow charge. Pressing station key for 3 seconds starts Boost. Press ESC to cancel.
Q-Learn
Adds QuickTest matrix by scanning new battery (3-5 min).
S1 C1 * SOH CG T S L P
From Global Display
Fn-8
Alt-Stn Key
= = = = = = = = =
Toggles between stand alone and BatteryShop mode Resets defaults and restarts unit 3 second key press starts Boost Restart Program
Station 1 selected. C-Code 1 selected. Each adapter holds 10 C-Codes. Default C-Code setting. State-of-health indication in % on QuickTest. Confidence Grade for QuickTest. QuickTest matrix present. Matrix added using Q-Learn or Learn. Charge/discharge rate scaled back due to excess current. C-Code locked for safety reasons. Matrix locked.
