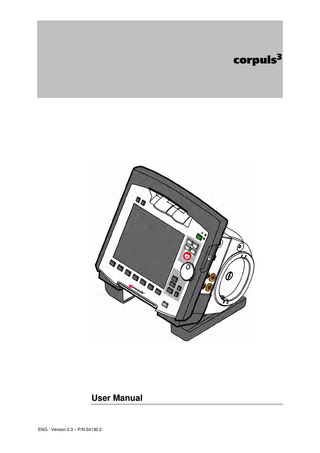

corpuls3 User Manual Ver 2.3 Issue 13 Feb 2015

User Manual corpuls3

Contents

Service address In case of enquiries, please contact:

Information on the authorised service and sales partners can also be found on the following website: www.corpuls.com

Address of the sales and service partner

ENG - Version 2.3 – P/N 04130.2

iii

User Manual corpuls3

Contents

Versions of the corpuls3 user manual Issue

Date

User manual version

Software version

1

06/2007

ENG V1.1 – 04130.2

1.1.0

2

08/2007

ENG V1.2 – 04130.2

1.2.0

3

11/2007

ENG V1.3 – 04130.2

1.3.0

4

07/2008

ENG V1.4 – 04130.2

1.4.1

5

07/2009

ENG V1.5 – 04130.2

1.5.0

6

12/2009

ENG V1.6 – 04130.2

1.6.0

7

11/2010

ENG V1.7 – 04130.2

1.7.0

8

07/2011

ENG V1.8 – 04130.2

1.8.0

9

10/2011

ENG V1.9 – 04130.2

1.9.0

10

07/2012

ENG V2.0 – 04130.2

2.0.0

11

06/2013

ENG V2.1 – 04130.2

2.1.0

12

05/2014

ENG V2.2 – 04130.2

2.2.2

13

02/2015

ENG V2.3 – 04130.2

2.3.2

Table 1-1

Versions of the User manual

Supplements to the user manual corpuls3 Version

Date

Description

Version user manual

Version Software

A

04/2010

Supplement of the alarm messages

EN V1.4 - 04130.2 EN V1.5 - 04130.2 EN V1.6 - 04130.2

1.4 1.5 1.6

A

06/2010

New Defibrillator Keyboard

EN V1.7 - 04130.2

1.7.0

A

03/2011

Interval Measurement NIBP

EN V1.7 - 04130.2

1.7.2

A

07/2011

NVG mode

EN V1.8 – 04130.2

1.8.0

Table 1-2

iv

Supplements to the User manual

ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Contents

Contents 1

Safety... 1 1.1

General ... 1

1.2

Operating Staff ... 1 1.2.1 1.2.2

Restrictions of Therapeutic Functions ... 1 Maintenance ... 1

1.3

Information Labels, Warning Labels and Symbols on the Device ... 2

1.4

Warning Notices ... 3

1.5

Special Types of Risk ... 3

2

Intended Use ... 4

3

Introduction ... 6 3.1

Components ... 6

3.2

Device Design ... 8 3.2.1 3.2.2 3.2.3 3.2.4 3.2.5 3.2.6

Pairing (Connection Authorisation) ... 10 Monitoring Unit ... 12 Patient Box and Accessory Bag ... 14 Defibrillator/Pacer ... 17 Defibrillator/Pacer SLIM ... 18 Brackets ... 19

3.3

Description of the Monitoring, Diagnostic and Therapeutic Functions... 20 3.3.1 Monitoring and Diagnostic Functions... 20 3.3.2 Therapeutic Functions ... 21

3.4

Alarm management ... 23 3.4.1 3.4.2

3.5

Energy Management ... 27 3.5.1 3.5.2

4

Alarm Signals at the Monitoring unit ... 24 Alarm Signals at the Patient box... 26 Battery Operation ... 27 Mains Operation... 29

General Operating Instructions ... 31 4.1

Operating and Display Elements ... 31 4.1.1 4.1.2 4.1.3 4.1.4 4.1.5 4.1.6

4.2

Switching On and Off ... 43 4.2.1 4.2.2

ENG - Version 2.3 – P/N 04130.2

Operating Elements and LEDs on the Monitoring Unit ... 31 Basic Structure of the Display Pages on the Monitoring Unit ... 35 Patient Box Display ... 39 Control Keys and LEDs on the Patient Box ... 40 Control Key and LEDs on the Defibrillator/Pacer ... 41 Control Key and LEDs on the Defibrillator/Pacer SLIM ... 42 Switching On ... 43 Switching Off ... 44 v

User Manual corpuls3

Contents

4.3

Menu Control... 46 4.3.1 4.3.2 4.3.3 4.3.4

4.4

Disconnecting and Connecting Modules ... 51 4.4.1 4.4.2 4.4.3 4.4.4 4.4.5

4.5

4.6

Fitting the Accessory Bag ... 56 Packing the Accessory Bag ... 57 Inserting the Device into the Brackets ... 61

4.6.1 4.6.2 4.6.3

Defibrillator/Compact Device Bracket ... 61 Monitoring Unit Bracket... 62 Patient Box Charging Bracket ... 63

Operation – Therapy ... 64 5.1

Therapy Electrodes for Defibrillation and Pacing... 64 5.1.1 5.1.2 5.1.3

Types of Therapy Electrodes ... 64 Connecting the Electrode Cable ... 66 Removing the Shock Paddles from their Holders and Re-inserting them... 67

5.2

Preparing the Patient for Defibrillation, Cardioversion and Pacer Therapy... 68

5.3

Defibrillation in AED Mode ... 69 5.3.1 5.3.2

Information on the AED Mode ... 69 Defibrillation in AED mode with corPatch Electrodes... 71

5.3.3

Defibrillation in AED Mode with Shock Paddles ... 72

5.4

Manual Defibrillation and Cardioversion ... 75 5.4.1 5.4.2 5.4.3 5.4.4 5.4.5

5.5

Information on Manual Defibrillation and Cardioversion ... 75 Manual Defibrillation with corPatch Electrodes ... 77 Manual Defibrillation and Cardioversion with Shock Paddles ... 78 Manual Defibrillation and Cardioversion with Shock Spoons ... 80 Manual Defibrillation and Cardioversion of Neonates and Children... 81 External Pacer... 83

5.5.1 5.5.2 vi

Disconnecting the Monitoring Unit from the Defibrillator/Pacer ... 51 Disconnecting the Patient Box from the Monitoring Unit ... 52 Connecting the Patient Box to the Monitoring Unit ... 53 Connecting the Monitoring Unit to the Defibrillator/Pacer ... 54 Removing the Patient Box from the Compact Device ... 55 Accessory Bag ... 56

4.5.1 4.5.2

5

Softkey Context Menu... 46 Parameter Context Menu and Curve Context Menu ... 47 Main Menu ... 49 Configuration Dialogue ... 50

Information on the External Pacer ... 83 Preparing the pacer function ... 85 ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Contents

5.5.3 5.6

Metronome ... 91 5.6.1 5.6.2

5.7

Information on the Metronome ... 91 Starting the Metronome ... 92 CPR Feedback ... 93

5.7.1 5.7.2 5.7.3 6

Starting the Pacer Function ... 87

Information on CPR Feedback ... 93 Preparing CPR Feedback ... 95 Working with CPR Feedback ... 95

Operation – Monitoring and Diagnosis ... 97 6.1

Information on Monitoring and Diagnosis ... 97

6.2

Monitoring Trends ... 98

6.3

ECG Monitoring... 98 6.3.1 6.3.2 6.3.3 6.3.4 6.3.5 6.3.6

6.4

Recording, Measuring, Printing and Interpreting a Diagnostic ECG... 106 6.4.1 6.4.2 6.4.3 6.4.4

6.5

Information on Diagnostic ECG ... 106 Preparing the Patient for a D-ECG ... 108 Recording and Measuring a Diagnostic ECG ... 110 Representative Cycle ... 116 Longterm ECG ... 118

6.5.1 6.5.2 6.5.3 6.6

Information on Longterm ECG ... 118 Preparing Longterm ECG ... 119 Performing Longterm ECG ... 119 Oximetry Monitoring (Option) ... 120

6.6.1 6.6.2 6.6.3 6.6.4 6.6.5 6.6.6 6.7

Information on Oximetry Monitoring... 120 Extended Oximetry Monitoring ... 122 Preparing Oximetry Monitoring ... 123 Performing Oximetry Measurement ... 124 Adjusting the Representation of the Oximetry Parameters ... 126 Monitoring Pulse Rate and Perfusion Index ... 126 CO2 Monitoring (option) ... 127

6.7.1 6.7.2 6.7.3 6.7.4 6.7.5 6.8

Information on CO2 Monitoring ... 127 Preparing CO2 Monitoring ... 128 Performing CO2 Measurement... 130 Adjusting the Representation of the CO2 Values ... 131 Monitoring Respiratory Rate ... 131 Non-invasive Blood Pressure Monitoring (option) ... 132

6.8.1 ENG - Version 2.3 – P/N 04130.2

Information on ECG Monitoring ... 98 ECG Lead Colour Coding ... 99 Preparing ECG Monitoring ... 100 Performing ECG Monitoring ... 102 Adapting the Representation of the ECG Curve ... 104 Heart Rate Monitoring ... 106

Information on NIBP Monitoring... 132 vii

User Manual corpuls3

Contents

6.8.2 6.8.3 6.8.4 6.9

Invasive Blood Pressure Monitoring (Option) ... 138 6.9.1 6.9.2 6.9.3

6.10

Information on Temperature Monitoring ... 142 Preparing Temperature Monitoring ... 142 Performing Temperature Monitoring ... 143

Configuration ... 144 7.1

Configuring the System ... 145 7.1.1 7.1.2 7.1.3 7.1.4

7.2

General System Settings (User DEFAULT)... 145 Configuration of Views ... 147 Printer settings ... 150 Configuration of the Fax Transmission (User DEFAULT) ... 155 Configuration of the Monitoring Functions ... 155

7.2.1 7.2.2 7.2.3 7.2.4 7.2.5 7.3

ECG Monitoring ... 155 Oximetry ... 157 CO2 ... 158 IBP ... 159 CPR Feedback... 161 Alarm Configuration ... 162

7.3.1 7.3.2 7.3.3 7.3.4 7.4

Configuring Alarm Settings ... 162 Alarm Limit Settings ... 163 Setting Alarm Limits for Monitoring Functions Manually ... 163 Setting the Alarm Limits for Monitoring Functions Automatically... 165 Advanced Settings (Persons Responsible for the Device) ... 166

7.4.1 7.4.2 7.4.3 7.4.4 7.4.5 7.4.6 7.4.7 7.4.8

viii

Information on IBP Monitoring ... 138 Preparing Invasive Blood Pressure Monitoring ... 139 Performing Invasive Blood Pressure Monitoring ... 140 Temperature Monitoring (Option)... 142

6.10.1 6.10.2 6.10.3 7

Preparing Blood Pressure Monitoring ... 135 Performing Individual Blood Pressure Measurement ... 136 Performing Blood Pressure Interval Monitoring ... 137

Authorisation for Persons Responsible for the Device ... 166 General System Settings (Person responsible for the device) ... 167 Configuration of Manual Events (Persons Responsible for the Device)... 170 Configuration of the Defibrillation Function (Persons Responsible for the Device) ... 171 Filter Settings (Persons Responsible for the Device) ... 173 Alarm Configuration (Persons Responsible for the Device) ... 175 Basic Configuration of the Views (Persons Responsible for the Device) ... 176 Configuration of Master Data (Persons Responsible for the Device)... 178 ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Contents

7.4.9 7.4.10 7.4.11 7.4.12 7.4.13 7.4.14 7.4.15 7.4.16

8

Configuration of Telemetry (Persons Responsible for the Device) ... 179 Configuration of Telemetry Services (Persons Responsible for the Device) ... 185 Bluetooth® data interface (Persons Responsible for the Device) ... 188 Configuration of ECG Measurement and ECG Interpretation (Persons Responsible for the Device) ... 190 Demo Mode (Persons Responsible for the Device) ... 193 Data Protection Settings (Persons responsible for the device) ... 194 Configuration of the Metronome (Persons Responsible for the Device) ... 195 Configuration of Non-Invasive Blood Pressure Measurement (NIBP) (Persons Responsible for the Device) ... 196

Data Management ... 198 8.1

Creating a Patient File ... 198

8.2

Event Key ... 199

8.3

Handling Data ... 200

8.4

Master Data... 201

8.5

Browser Key ... 202 8.5.1 8.5.2

Protocol ... 202 Mission Browser... 205

8.6

Analysis of the Data with corView2 ... 207

8.7

Screenshot ... 207

8.8

Telemetry (Option) ... 207 8.8.1 8.8.2 8.8.3

Installing the SIM Card... 209 Establishing a Connection to the Mobile Network ... 209 Live Data transmission to corpuls.web ... 210

8.8.4 8.8.5

Sending a D-ECG ... 211 Uploading Missions ... 213 Bluetooth® data interface ... 213

8.9 8.9.1 8.10 9

Establishing and interrupting a Bluetooth® connection ... 215 Insurance card reader (option)... 216

Maintenance and Tests... 218 9.1

General Information ... 218

9.2

Function Checks ... 219 9.2.1 9.2.2

Daily Checks of the Device ... 220 Monthly Functional Test ... 224

9.3

Automatic Self Test ... 227

9.4

Regular Maintenance Work ... 227 9.4.1 9.4.2

ENG - Version 2.3 – P/N 04130.2

Safety-related Checks... 227 Metrological Check ... 228 ix

User Manual corpuls3

Contents

9.4.3

Repair and Service ... 228

9.5

Loading the Printer Paper ... 229

9.6

Changing the Battery ... 230

9.7

Cleaning, Disinfection and Sterilisation... 231 9.7.1 9.7.2 9.7.3 9.7.4 9.7.5 9.7.6 9.7.7 9.7.8 9.7.9 9.7.10 9.7.11

9.8 10

Monitoring Unit, Patient Box and Defibrillator/Pacer ... 231 Shock Paddles ... 233 Therapy Master Cable ... 234 Cables for Monitoring Functions ... 234 Oximetry Sensor ... 234 CO2 Sensor ... 235 NIBP Cuffs and connecting hose ... 235 IBP Transducer Cable... 235 Temperature Sensor ... 235 Accessory Bag, Carrying Strap and Backpack Carrying Strap ... 236 Charging Brackets and MagCode Connectors ... 236 Approved Accessories, Spare Parts and Consumables ... 236

Procedure in Case of Malfunctions ... 237 10.1

Device alarms ... 237

10.2

Troubleshooting and Corrective Actions ... 256

10.3

Notifications Message Line and Information in the Protocol ... 269

Appendix ... 282

x

A

Symbols ... 282

B

Function Checklist ... 287

C

Factory Settings ... 288

D

Technical Specifications ... 297

E

Biphasic Defibrillator ... 313

F

Safety Information ... 317

G

ECG Analysis during Semi-automatic Defibrillation (AED mode) ... 321

H

corpuls3 HYPERBARIC (HBO) ... 324

I

Guidelines and Manufacturer’s Declaration ... 325

J

Warranty... 330

K

Protection Rights and Patents ... 331

L

Disposal of the Device and Accessories ... 332

M

Note on Data Protection ... 333

N

List of Illustrations ... 334

O

List of Tables ... 339

Index

... 342

ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Contents

Conventions The following conventions apply in this user manual: Key

Key on monitoring unit, patient box and defibrillator/pacer

[Softkey]

Softkey on the monitoring unit

"Menu item" ► "Submenu item"

Menu items of the main menu and parameter and curve context menus

"Alarm message"

Messages for physiological and technical alarms on the monitoring unit and patient box

VERBAL MESSAGE

Spoken operating instructions and alarm messages in the AED mode

Operating instruction/ information

Operating instructions and information in the message line of the monitoring unit

ENG - Version 2.3 – P/N 04130.2

xi

User Manual corpuls3

Safety

1

Safety

1.1

General

The corpuls3 may only be operated if:  in technically perfect condition;  used as intended (see chapter 2 Intended Use, page 4);  the instructions of this user manual are followed. Malfunctions must be eliminated immediately (see chapter 10 Procedure in Case of Malfunctions, page 237). Hyperbaric oxygen therapy

For the product variant corpuls3 HYPERBARIC read and understand Appendix H corpuls3 HYPERBARIC (HBO), page 324.

1.2

Operating Staff

The corpuls3 may only be operated by trained medical staff of for example hospitals, doctor’s offices and emergency medical services, as well as of authorities and public safety organisations. The qualified staff must be  trained in proper handling, use and operation of the device and of the approved accessories as well as be  trained in basic and advanced resuscitatory measures (BLS and ALS). Instructing person

The initial instruction and training on the device must be performed by the manufacturer or by authorised personnel.

1.2.1 Restrictions of Therapeutic Functions

Refresher courses in therapeutic use

Use of the therapeutic functions (defibrillation, cardioversion and pacing) is restricted to qualified and authorised staff. The manufacturer recommends that persons who use the therapeutic functions of the device should take part in refresher courses regularly. The operating company/operator is responsible for offering such refresher courses.

1.2.2 Maintenance Maintenance work may only be performed by persons who are appropriately trained and authorised by the manufacturer. Non-observance and loss of perfect technical condition due to this will result in invalidation of claims under the warranty.

ENG - Version 2.3 – P/N 04130.2

1

User Manual corpuls3

Intended Use

1.3

Information Labels, Warning Labels and Symbols on the Device

Read and follow the instructions in the user manual

Read the additional instructions in the user manual

USB port (Devices up to 09/2010) BF (body floating, defibrillation-proof): An insulated application component of this type is approved for external and internal use on the patient CF (cardiac floating, defibrillation-proof): An insulated application component of this type is authorised for use directly on or in the patient’s heart Equipotential bonding

Protection class IP55 Symbol for second generation of radio module. Approved for operation in a multiplace hyperbaric chamber for hyperbaric oxygen therapy (HBO) (option). NOT approved for monoplace hyperbaric chamber. MagCode connector is NOT approved for operation in a hyperbaric chamber for hyperbaric oxygen therapy (HBO). Insurance card reader (Option) Antenna symbol; indicates that the device is emitting non-ionising radiation. The WEEE symbol (Waste Electrical and Electronic Equipment) indicates that the device should be returned to the manufacturer for proper disposal and recycling. CE symbol; the number indicates the competent notified body. The RCM (Regulatory Compliance Mark) indicates a device’s compliance with applicable ACMA (Australian Communications and Media Authority) technical standards for telecommunications, radiocommunications or broadcasting equipment. Table 1-1

2

Information Labels, Warning Labels and Symbols on the Device

ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Safety

Fig. 1-1

1.4

Sample rating plate

Warning Notices

A number of actions during the operation of the corpuls3 carry risks for patients, users and third parties. Such actions are indicated by warning notices in this user manual. The following symbols are used:

Warning

Caution Note

"Warning" denotes a dangerous situation. If the warning is not heeded, extremely severe or fatal injuries or substantial material damage may occur.

"Caution" denotes a possibly dangerous situation. If not heeded, minor injuries or slight material damage may occur.

These paragraphs contain information which must be read and understood.

1.5 Electric shock

Special Types of Risk

The defibrillator emits powerful electrical energy. Severe injuries or death may result if the defibrillator is not used in accordance with this user manual.  Familiarise yourself with the device and this user manual. The defibrillator must not be opened. Internal components may carry high voltages.  If a fault is suspected, have the device checked by the authorised sales and service partner and, if necessary, repaired. The defibrillator may cause electromagnetic interference, particularly during charging and on triggering the defibrillation shock. The functioning of devices operated in the vicinity may be compromised.

EMC

 Check the effects of the defibrillator on other devices, preferably before an emergency occurs. Electromagnetic fields of other devices may invalidate the ECG readings. ECG analysis may be impaired. It may be impossible to trigger a defibrillation shock or pacer pulse.  Read and follow the instructions for operation of the device in chapter 2 Intended Use, page 4 in addition to the safety warnings during use. It is essential to read and follow the safety information in the appendix F (from page 282). .

ENG - Version 2.3 – P/N 04130.2

3

User Manual corpuls3

Intended Use

2

Purpose

Intended Use

The corpuls3 is intended  for measurement and monitoring of vital functions in addition to  defibrillation, cardioversion or cardiac pacing of patients in the preclinical and clinical field by qualified medical staff trained in the use of the device. The following monitoring- and diagnostic functions are available:  ECG  Diagnostic ECG  CPR feedback Optional:  Oximetry (SpO2)  Extended Oximetry (SpCO®, SpHb, SpMet®)  Capnometry (CO2)  Temperature (Temp)  Non-invasive blood pressure monitoring (NIBP)  Invasive blood pressure monitoring (IBP)

Intended use

The corpuls3 is approved for monitoring in operating diagnostic X-ray units (e. g. computed tomography). Exempt from this is the oximetry option, because the readings might be falsified. When equipped with the HBO (hyperbaric oxygen therapy) option, the corpuls3 is approved for operation in a multiplace hyperbaric chamber up to 3 barg and an oxygen concentration of < 23%. Intended use of corpuls3 includes the use of accessories which are  approved by the manufacturer (see chapter 9.8 Approved Accessories, Spare Parts and Consumables, page 236) and  appropriate for the function and patient. Use of accessories on corpuls3 which are not approved by the manufacturer is not considered to be intended use.

Warning

4

Defibrillation protection for patients, user and third parties cannot be guaranteed, if accessories other than those authorised by the manufacturer are used.

ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Intended Use

The therapeutic functions of defibrillation, cardioversion and pacer must only be performed with constant monitoring of the patient. Performing the therapeutic functions without eye contact with the patient is not considered to be intended use. If monitoring functions are performed, the patient’s condition must also be regularly monitored even when the alarm function is enabled. Usage other than as intended

The corpuls3 is not intended for  operation in the vicinity of readily inflammable substances,  setup and operation under the influence of strong electromagnetic fields, which occur in the direct vicinity of radio masts, switched-on nuclear magnetic resonance tomography units, high voltage installations and overhead power lines,  operation in the vicinity of therapeutic radiation units (e. g. tumor treatment),  operation in a monoplace hyperbaric chamber (option HBO),  operation in a multiplace hyperbaric chamber with more than 3 barg and/or more than 23 % oxygen concentration (option HBO). Individual modules must not be used without batteries inserted. Defibrillation and cardioversion must not be performed without protective measures (see chapter 5.3.1 Information on the AED Mode, page 69 and 5.4.1 Information on Manual Defibrillation and Cardioversion, page 75):  on a metal surface;  on a wet surface. The defibrillator must only be used for defibrillation and cardioversion and must not be used as a stimulation current device or as a pacer. The pacer may only be used as a transcutaneous pacer. The pacer must not be used as an intracardial defibrillator. The corpuls3 may not be used simultaneously on two or more patients. The therapy master cable SLIM (P/N 04326.0) must not be used as extension cable for the therapy master cable at the defibrillator/pacer module (P/N 04300). Likewise, the therapy master cable SLIM must not be combined with a second therapy master cable SLIM. The manufacturer cannot accept any liability for damage occurring as a result of failure to use corpuls3 as intended.

ENG - Version 2.3 – P/N 04130.2

5

User Manual corpuls3

Introduction

3

Introduction

3.1

Components

The corpuls3 is a portable device with a modular structure which can be used  as a defibrillator/monitor or  as a full patient monitor in its own right.

6

Monitoring, diagnostic and therapeutic functions

The corpuls3 provides comprehensive monitoring, diagnostic and therapeutic functions for treatment of emergency and intensive-care patients. Especially as part of the resuscitation of emergency patients, defibrillations, cardioversions or pacer therapies can also be performed, in addition to the monitoring of vital parameters. A maximum of six ECG curves can be displayed on the monitor at the same time. A 12-lead ECG function allows the user a comprehensive ECG diagnosis, which can be optionally supplemented by ECG analysis software. Further monitoring functions include oxygen saturation measurement (pulse oximetry), carbon dioxide measurement (capnometry) and temperature measurement, in addition to non-invasive and invasive blood pressure monitoring. The recorded measuring values can be displayed both numerically and as a curve. Configurable alarms draw the user’s attention to current changes in the patient’s condition. All measured values or logs can be printed out on paper.

Documentation functions

The corpuls3 has extensive documentation functions for internal recording of events, alarms and logs. These can be transferred to external systems for further processing and archiving.

ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Introduction

Fig. 3-1

Compact device 1 2 3

Pivoting device

Accessory bag Shock paddles (2 x) Printer

When equipped with the original defibrillator/pacer (P/N 04300), the corpuls3 can be tilted vertically up to 30°. With the defibrillator/pacer unit SLIM (P/N 04301), this is not possible. Depending on the mission conditions, the monitor can be adjusted to the appropriate visual angle. The system can be divided into the following three modules:  Monitoring unit  Patient box  Defibrillator/pacer

Fig. 3-2

Individual modules 1 2 3

ENG - Version 2.3 – P/N 04130.2

Monitoring unit Patient box Defibrillator/Pacer

7

User Manual corpuls3

Introduction

3.2 Usage options

Radio connection Infrared connection Note

Note

Device Design

The three modules monitoring unit, patient box and defibrillator/pacer can operate via an infrared connection or, if separated, via radio connection. The connection status is shown on the display of the monitoring unit (see Table 4-2, page 36) and the patient box (see Table 4-3, page 39). Communication between the modules in semi-modular and modular use is performed by radio up to a distance of 10 m in open terrain. In the connected mechanically state, the modules communicate via an optical infrared connection. If the radio connection is interrupted, the modules have to be connected to each other mechanically. The corpuls3 switches automatically from radio connection to infrared connection in this case. The antenna of the radio unit in the patient box is located at the top. In case the antenna is shadowed, for example by metallic or metallised objects, the maximal reach of the radio connection may be reduced. This may happen, for example, when the patient box is placed between the patient’s legs on the stretcher. If possible, choose a position for the patient box that allows unimpeded view to the other modules. The following combinations are possible: Device Design

Defibrillator-/pacer unit

Defibrillator-/pacer unit SLIM

1. Compact device: All three modules are connected mechanically.

2. Semi-modular use: Monitoring unit and patient box are connected, defibrillator/pacer is disconnected. 3. Semi-modular use: Monitoring unit and defibrillator/ pacer are connected, patient box is disconnected.

8

ENG - Version 2.3 – P/N 04130.2

User Manual corpuls3

Introduction

4. Modular use: Monitoring unit, patient box and defibrillator/pacer are disconnected mechanically. Fig. 3-3

Usage options of the modular corpuls3

The following combinations are possible when used as a stand-alone patient monitoring system: 1. Compact monitor: Monitoring unit and patient box are connected mechanically.

2. Modular monitoring mode: Monitoring unit and patient box are disconnected mechanically.

3. Patient box: Patient box in stand-alone use for temporary initial monitoring.

Fig. 3-4

ENG - Version 2.3 – P/N 04130.2

Usage options of the modular corpuls3 as a patient monitoring system

9

User Manual corpuls3

Introduction

3.2.1 Pairing (Connection Authorisation) The modules of the corpuls3 can be connected to form a functional unit by means of two procedures:  Pairing and  Ad-hoc connection The corpuls3 thus provides the option of substituting individual modules of one compact device for individual modules of the same type from another corpuls3. Note

It is not possible to connect a monitoring unit to more than one patient box or one defibrillator/pacer at the same time.

Pairing

Pairing is a connection authorisation that enables the communication between wirelessly connected modules. An ad-hoc connection allows the use of mechanically connected modules without having to perform a pairing beforehand.

Ad-hoc connection Prerequisite

For both procedures the following prerequisites apply: 1. For a pairing, monitoring unit, patient box and defibrillator/pacer have to be equipped with radio modules of the same type (hardware version). 2. If this is not the case, if the hardware version of the radio modules is different (1st and 2nd generation), those modules can only form an ad-hoc connection. 3. For both a pairing and for an ad-hoc connection all modules have to be equipped with an identical software version.

Note

As of July 2011 the corpuls3 comes equipped with a second generation radio module. This new radio module is not compatible with those of the first generation.

Labelling of the radio modules

The corpuls3 modules with the 2nd generation radio module are labelled with a number symbol. This symbol is attached at the following places:  Monitoring unit: at the front side, top left,  Patient box: on top,  Defibrillator/pacer: at the rear side, on top,  Defibrillator/pacer SLIM: at front side, top left,

2

10

The number symbol also marks the position of the radio module in the modules.

ENG - Version 2.3 – P/N 04130.2
