Swan-Ganz Module Setup guide

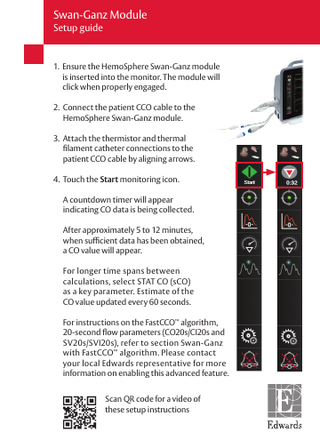

1. E nsure the HemoSphere Swan-Ganz module is inserted into the monitor. The module will click when properly engaged. 2. Connect the patient CCO cable to the HemoSphere Swan-Ganz module. 3. Attach the thermistor and thermal filament catheter connections to the patient CCO cable by aligning arrows. 4. Touch the Start monitoring icon. A countdown timer will appear indicating CO data is being collected. After approximately 5 to 12 minutes, when sufficient data has been obtained, a CO value will appear. For longer time spans between calculations, select STAT CO (sCO) as a key parameter. Estimate of the CO value updated every 60 seconds. For instructions on the FastCCO™ algorithm, 20-second flow parameters (CO20s/CI20s and SV20s/SVI20s), refer to section Swan-Ganz with FastCCO™ algorithm. Please contact your local Edwards representative for more information on enabling this advanced feature. Scan QR code for a video of these setup instructions
Venous Oximetry (SvO2 / ScvO2) connection overview Note: Swan-Ganz catheter should not be primed prior to in vitro calibration. 1. C onnect the HemoSphere oximetry cable to the HemoSphere advanced monitor. 2. C onnect the HemoSphere oximetry cable to the oximetry port of the Swan-Ganz catheter. 3. Select Settings on navigation bar. 4. Select Venous Oximetry Calibration. 5. S elect In Vitro Calibration or In Vivo Calibration as desired and follow prompts. Monitoring pause 1. T ouch the silence audible alarms icon continuously for five seconds to show additional alarm silencing options. 2. T ouch this icon to pause monitoring. A monitoring pause confirmation banner will appear to confirm suspension of monitoring operations. Exception: Tissue oximetry monitoring and associated alarms will remain active during a monitoring pause. 3. A fter monitoring pause confirmation, a resume monitoring icon and elapsed time will appear on the navigation bar. A “Monitoring Pause” banner will be displayed. To return to monitoring, touch the resume monitoring icon. EDV/RVEF monitoring Right ventricular end diastolic volume (EDV) monitoring is available in conjunction with CO monitoring mode when using a Swan-Ganz CCOmbo V catheter and ECG signal input. 1. E nsure patient CCO cable is connected to Swan-Ganz catheter. 2. C onnect the ECG interface cable’s 1/4 inch miniature phone plug to the ECG monitor input on the rear panel of the HemoSphere advanced monitor. 3. C hange parameter tiles to reflect EDV/RVEF parameters as desired.
