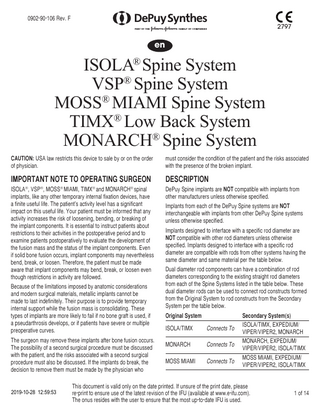

Spine System & Low Back System Instructions for Use

Implants made of different materials are NOT compatible unless otherwise specified. The table below specifies implant material compatibility. Material Stainless Steel alloys

Compatible with Stainless Steel alloys Titanium alloys, Cobalt-ChromiumMolybdenum, Cobalt-NickelTitanium alloys Chromium-Molybdenum, PEEK, Commercially Pure Titanium PEEK Titanium alloys Cobalt-ChromiumTitanium alloys, Cobalt-NickelMolybdenum Chromium-Molybdenum Cobalt-NickelTitanium alloys, Chromium-Molybdenum Cobalt-Chromium-Molybdenum Commercially Pure Titanium Titanium alloys DePuy Spine prepares Surgical Technique Manuals showing the use of the implants and instruments for each Spine System. Contact your DePuy Spine sales representative to obtain copies of these Surgical Technique Manuals.

ISOLA Spine System The Posterior ISOLA Spine System is a rod-based system consisting of spinal rods, eye-rods, plate-rod combinations (PRC), dual rod connectors, tandem connectors, ISOLA Modular Cross Connector (MCC) transverse connectors, EZ-X transverse connectors, other transverse connectors, solid spinal hooks, open back spinal hooks, sublaminar wires, pedicle screws, open and closed pedicle screws, cable/wire pedicle screws used with wire or Songer® Cable, iliac screws, and sacral screws. The cable/wire pedicle screw is intended to be used with stainless steel ISOLA Beaded Sublaminar Wire, manufactured by DePuy Spine, Inc., or with the stainless steel Single Cable with Crimp and Bar and the Single ISOLA Cable with Eyelet Leader components of the Songer Spinal Cable System, manufactured by Pioneer Surgical Technologies and distributed by DePuy Spine, Inc. The ISOLA Polyaxial Washers are NOT for use with ISOLA Band Clamp or ISOLA Twister Connector. The ISOLA Spine System is compatible with other systems as follows: ••The TIMX Low Back System pedicle and sacral screws, washers, slotted connectors, and twister connectors are used in conjunction with the ISOLA Spine System titanium components to comprise a rod-based spinal fixation system. ••CrossOver transverse connectors ••EXPEDIUM SFX® Cross Connector System

2019-10-28 12:59:53

••EXPEDIUM Spine System dual rod and lateral connectors, and sacral extenders ••Constructs incorporating inter-system single or dual diameter rods as defined above The Pediatric ISOLA Spine System consists of a pediatric platerod combination (PRC) and side-tightening hooks with downsized dimensions to accommodate the anatomic limitations found where internal fixation is performed on pediatric or small stature individuals. The PRC and hooks are used with components already available in the ISOLA Spine System including 3/16 inch diameter rods, transverse connectors, sublaminar wires and cables, dual and tandem connectors, slotted connectors, and sacral and iliac screws. The Anterior ISOLA Spine System consists of spinal rods, open and closed screws, washers, caps, set screws, washers and staples. The Anterior ISOLA staples, washers, and screws are intended to be attached to the lateral aspect of the vertebral bodies from T5 to L4, and SHOULD NOT be attached to the anterior aspect. (See Precautions section.) Refer to the Anterior ISOLA Technique Manual for important implant assembly instructions. The Posterior, Pediatric, and Anterior ISOLA Spine System components are available in titanium alloy conforming to ASTM F-136 specifications as well as stainless steel conforming to ASTM F-138 specifications or ASTM F-1314 specifications.

VSP Spine System The VSP Spine System consists of pedicle screws, spine plates, transverse connectors, washers, and nuts. The VSP Spine System components are available in titanium alloy conforming to ASTM F-136 specifications as well as stainless steel conforming to ASTM F-138 specifications or ASTM F-1314 specifications.

MOSS MIAMI Spine System The MOSS MIAMI Spine System consists of longitudinal rods, monoaxial screws, polyaxial screws, reduction screws, hooks, reduction hooks, MOSS MIAMI transverse connectors, other transverse connectors, axial connectors, staple washers, and sacral extenders. The MOSS MIAMI Spine System is compatible with other systems as follows: ••ISOLA EZ-X transverse connectors ••CrossOver transverse connectors ••EXPEDIUM SFX Cross Connector System ••EXPEDIUM Spine System dual rod and lateral connectors, and sacral extenders

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

2 of 14

••Constructs incorporating inter-system single or dual diameter rods as defined above The CrossOver transverse connector is NOT for use with the MOSS MIAMI 4.0mm Rod System. The MOSS MIAMI Spine System components are available in titanium alloy conforming to ASTM F-136 specifications as well as stainless steel conforming to ASTM F-138 specifications. The extension tabs on the reduction screw and hook components are intended to be removed intraoperatively.

TIMX Low Back System The TIMX Low Back System is both a plate-based and a rod-based system. The plate-based system consists of pedicle screws, spine plates, transverse connectors, J-hooks, washers, nuts, and set screws. The rod-based system consists of spinal rods, pedicle screws, set screws, various slotted connectors, and transverse connectors. The TIMX Spine System is compatible with other systems as follows: ••ISOLA Modular Cross Connector (MCC) transverse connectors ••ISOLA EZ-X transverse connectors ••CrossOver transverse connectors ••EXPEDIUM SFX Cross Connector System ••EXPEDIUM Spine System dual rod and lateral connectors, and sacral extenders ••Constructs incorporating inter-system single or dual diameter rods as defined above The TIMX Low Back System components are available in titanium alloy conforming to ASTM F-136 specifications.

MONARCH Spine System The MONARCH Spine System is both a plate-based and a rod-based system. The plate-based system consists of pedicle screws, spine plates, transverse connectors, J-hooks, washers, nuts, and set screws. The rod-based system consists of spinal rods, pedicle screws, polyaxial screws, caps, set screws, various slotted connectors, open and closed hooks, various rod-to-rod connectors, and transverse connectors. The MONARCH nested slotted plate nut and washers are intended to be used only with the MONARCH nested slotted plate and is NOT for use with other MONARCH plates. The MONARCH Spine System is compatible with other systems as follows: ••ISOLA Modular Cross Connector (MCC) transverse connectors ••ISOLA EZ-X transverse connectors ••CrossOver transverse connectors 2019-10-28 12:59:53

••EXPEDIUM SFX Cross Connector System ••EXPEDIUM Spine System dual rod and lateral connectors, and sacral extenders ••Constructs incorporating inter-system single or dual diameter rods as defined above ••The MONARCH Twister can be used with the EXPEDIUM Spine System The MONARCH Spine System components are available in commercially pure titanium or titanium alloy conforming to ASTM F-67 and ASTM F-136 specifications.

INDICATIONS The ISOLA, VSP, MOSS MIAMI, TIMX and MONARCH Spine Systems are pedicle screw systems intended to provide immobilization and stabilization of spinal segments in skeletally mature patients as an adjunct to fusion in the treatment of the following acute and chronic instabilities or deformities of the thoracic, lumbar, and sacral spine: degenerative spondylolisthesis with objective evidence of neurological impairment, fracture, dislocation, scoliosis, kyphosis, spinal tumor, and failed previous fusion (pseudarthrosis). The ISOLA, VSP, MOSS MIAMI, TIMX and MONARCH Spine Systems are also indicated for pedicle screw fixation for the treatment of severe spondylolisthesis (Grades 3 and 4) of the L5-S1 vertebra in skeletally mature patients receiving fusion by autogenous bone graft having implants attached to the lumbar and sacral spine (L3 to sacrum) with removal of the implants after the attainment of a solid fusion. The ISOLA, MOSS MIAMI, TIMX and MONARCH Spine Systems are also a hook and sacral/iliac screw fixation system of the noncervical spine indicated for degenerative disc disease (defined as discogenic back pain with degeneration of the disc confirmed by history and radiographic studies), spondylolisthesis, trauma (fracture and/or dislocation), spinal stenosis, deformities (scoliosis, lordosis and/or kyphosis), tumor, and previous failed fusion (pseudarthrosis). The ISOLA, VSP, and MONARCH Spine Systems when used with pedicle screws are indicated for degenerative disc disease (defined as discogenic back pain with degeneration of the disc confirmed by history and radiographic studies). Levels of fixation are for the thoracic, lumbar and sacral spine. The ISOLA and MOSS MIAMI Spine Systems when used as anterior thoracic/lumbar screw fixation systems, are indicated for degenerative disc disease (defined as discogenic back pain with degeneration of the disc confirmed by history and radiographic studies), spondylolisthesis, trauma (fracture and/or dislocation),

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

3 of 14

spinal stenosis, deformities (scoliosis, lordosis and/or kyphosis), tumor, and previous failed fusion (pseudarthrosis). The MONARCH Spine System Dual Rod Connectors can be used to connect MONARCH Spine System Rods to rods of other DePuy Spine 4.75mm, 5.5mm, and 6.35mm diameter rod systems.

CLEANING AND STERILIZATION Implants and instruments of the ISOLA, VSP, MOSS MIAMI, TIMX and MONARCH Spine Systems may be provided either sterile or non-sterile and this will be clearly identified on the product labels.

Instructions for Processing Medical Devices Non-sterile Implants, and Reusable Instruments, Instrument Trays and Cases Introduction DePuy Synthes non-sterile implants and reusable instruments are critical medical devices. These devices must be cleaned, inspected and sterilized prior to surgical use. These instructions are provided to assist health care personnel in the development of effective procedures for the processing of non-sterile implants and reprocessing of reusable devices. It is the responsibility of the facility to ensure that processing is performed using the equipment, materials and competent personnel at a designated processing area. These instructions are provided for heat-resistant, critical medical devices, unless otherwise noted on specific product inserts. Product specific inserts are given priority over these instructions. This can include heat-sensitive devices and certain power (air- or electricdriven) tool designs that are provided with specific cleaning and sterilization instructions. Consult the product specific instructions for processing in these cases. DePuy Synthes Instruments do not have an indefinite functional life. All reusable instruments are subjected to repeated stresses related to surgical use, routine cleaning, and sterilization processes. Instruments should be carefully inspected before each use to ensure that they are functional. Scratches, dents or other damage can result in instrument breakage or tissue injury. DePuy Synthes provides sterile and non-sterile implants. Sterile, single use implants must not be reprocessed or reused. Non-sterile implants must be sterilized prior to use in accordance with these processing instructions. They may be subjected to reprocessing in accordance with these processing instructions, but must be discarded following direct patient contact or use. Manufacturer Contact

Warnings and Cautions These instructions are provided for the processing of heat-resistant, immersible, critical medical devices, unless otherwise noted on specific product inserts. Product specific inserts are given priority over these instructions. This can include heat-sensitive devices and certain power (air- or electric-driven) tool designs that are provided with specific cleaning and sterilization instructions. Consult the product specific instructions for processing in these cases. The instructions provided are given as guidance for medical device processing and have been validated by the manufacturer. It is the responsibility of the healthcare facility to ensure that processing is performed using the required equipment, materials and personnel at a defined processing area. This will include the handling of devices during transportation, processing and storage prior to surgical use. Those using these instructions should be qualified personnel with documented training and competency in accordance with local procedures, guidelines, and standards. Surgically used instruments can be considered biohazard and facilities should ensure that transport and handling procedures comply with local regulations and guidelines. Sterile, single use implants must not be reprocessed or reused. Sterile implants are labelled as single use and have not been validated for reprocessing. Non-sterile implants must be processed prior to use in accordance with these processing instructions. They may be subjected to reprocessing in accordance with these processing instructions, but they must be discarded following direct patient contact or use. Reusable, non-sterile surgical instruments are required to be cleaned, inspected and sterilized prior to surgical use. Care should be taken in the handling and cleaning of sharp devices. All devices must be thoroughly cleaned and inspected prior to sterilization. Long, narrow lumens, blind holes, moving and intricate parts require particular attention during cleaning and inspection. During cleaning, only use detergents that are labelled for use on medical devices and in accordance with the manufacturer’s instruc­ tions. Cleaning agents with a used dilution pH of within 7 – 9 are recommended. Highly alkaline conditions (pH>10) can damage components / devices, such as aluminium materials. Do not use saline, environmental disinfection (including chlorine solutions) or surgical antiseptics (such as iodine- or chlorhexidine-containing products). Do not use a cleaning aid that can damage the surface of instruments such as steel wool, abrasive cleaners or wire brushes.

For local contact information, visit www.depuysynthes.com or contact your local sales representative.

2019-10-28 12:59:53

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

4 of 14

Instruments should be carefully inspected before each use to ensure that they are functional. Scratches, dents or other damage can result in instrument breakage or tissue injury. Instruments must be cleaned separately from instrument trays and cases. Instrument trays and cases are designed as an organizational tool in preparation for sterilization, storage and surgical use. Non-sterile implant sets may be processed in their trays provided. Automated equipment, including washer-disinfectors and steam sterilizers must be installed, maintained and operated in accordance with manufacturer’s instructions. Do not exceed 140°C (284°F) during reprocessing steps. For patients with, or suspected with, Creutzfeldt-Jakob disease (CJD), variant CJD or other transmissible spongiform encepha­ lopathy (TSE) and related infections, it is recommended to treat the patient using single-use instruments. Safely dispose of all devices used in accordance with local procedures and guidelines.

LIMITATIONS ON PROCESSING Repeated processing cycles in compliance with these instructions for use have minimal effects on device life and function. Instruments do not have an indefinite functional life. End of life of devices is determined by wear and damage due to surgical use and handling. Evidence of damage and wear on a device may include but is not limited to corrosion (i.e. rust, pitting), discoloration, excessive scratches, flaking, wear and cracks. Improperly functioning devices, devices with unrecognizable markings, missing or removed (buffed off) part numbers, damaged and excessively worn devices should not be used. Non-sterile implants must be discarded following patient use. Any implant with evidence of damage, such as due to handling or processing must be discarded.

Step 1: Point of Use Care Ensure that no instruments or parts are left in the surgical site prior to closure as patient injury may result. All single use devices and materials should be removed and discarded in compliance to local policies. The drying of gross soil (blood, tissue and/or debris) on devices following surgical use should be avoided. It is preferred that gross soil is removed from devices following use and in preparation for transportation to a processing area. Gross soil can be removed using sponges, cloths, or soft brushes. Water and/or cleaning detergents (labelled for use on medical devices) may be used. Do not use saline, environmental disinfection (including chlorine solutions) or surgical antiseptics (such as iodine- or chlorhexidinecontaining products. Flush all lumened devices with water

2019-10-28 12:59:53

(or detergent solution) to prevent the drying of soil and/or debris to the inside. If gross-soil cannot be removed at the point of use, the devices should be transported to prevent drying (e.g., covered with a towel dampened with purified water) and cleaned as soon as possible at a designated processing area. Surgical cement should be removed from devices during surgical use and prior to setting. When cement hardens it will typically require physical methods to remove. Chemical solvents should not be used. Hardened cement may be removed with an approved stylus or removing tool, but these may damage devices.

Step 2: Containment and Transportation Surgically used devices may be considered bio-hazardous and should be safely transported to a designated processing area in accordance with local policies.

Step 3: Cleaning Preparation before Cleaning It is recommended that devices should be reprocessed as soon as is reasonably practical following surgical use. Instruments must be cleaned separately from instrument trays and cases. Non-sterile implants may be cleaned and disinfected in the provided implant trays. Care should be taken in the handling and cleaning of sharp devices. These are recommended to be cleaned separately to reduce risks of injury. Multi-part or complex instruments may require disassembly for cleaning. Refer to any technique guides or other supplemental information for specific device disassembly and/or reassembly instructions. Any devices with moving parts (e.g. ratchets, box locks, hinges or actuated parts) need to be actuated during manual cleaning to ensure access of the cleaning process. All devices with lumens need to be manually flushed to remove debris and brushed thoroughly using appropriately sized softbristled brushes and twisting action. Brush size should be approximately the same diameter of the lumen to be cleaned. Using a brush that is too big or too small for the diameter of the lumen/cannulation may not effectively clean the lumen. Refer to any technique guides or other supplemental information for specific device lumen diameters. After brushing, rinse with water by flushing and blow clean compressed air through all lumens. NOTE: Two cleaning methods are provided, a Manual and an Automated Method, and at least one shall be performed.

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

5 of 14

Cleaning: Manual 1. Prepare a neutral or mild alkaline cleaning solution (pH 7 to 9) in accordance to the detergent manufacturer’s instructions. The temperature of the solution should be ≤ 40°C (104°F) for manual cleaning. NOTE: The cleaning solution may contain enzymes. Aluminum-safe alkaline cleaners can be used, but can vary in material compatibility overtime based on their formulation. Material compatibility should be confirmed with the detergent manufacturer. 2. Immerse devices and parts in the detergent solution, and soak for a minimum of 5 minutes. 3. While immersed, use a soft non-metallic bristle brush (plastic bristles, like nylon) or sponge to thoroughly clean all traces of blood and debris from all device surfaces for a minimum of one minute. 4. Ensure all lumens are thoroughly brushed. Push the brush through the entire length of the lumen using a twisting motion to remove debris from both ends for a minimum of one minute. 5. During cleaning, actuate joints, handles and other movable device features to expose all areas to the detergent solution, if applicable. Ensure all lumens are flushed for a minimum of one minute. 6. Remove the devices and completely submerge in an ultrasonic bath prepared with a neutral or mild alkaline pH detergent (pH 7-9), prepared in accordance with the manufacturer’s instructions. Use a large syringe (50ml or greater) flush all lumens with the cleaning solution, articulating areas, and flexible segments with the detergent solution to minimize the formation of air pockets or bubbles. NOTE: Ultrasonic cleaning is only effective if the surface to be cleaned is immersed in the cleaning solution. Air pockets will decrease the efficacy of ultrasonic cleaning. 7. Ultrasonically clean the device components for a minimum of 10 minutes in accordance with manufacturer’s instructions. An example of a validated cycle used for cleaning validation included (40kHz at 25°C for 10 mins). 8. Rinse all devices by immersion in ambient, < 40°C (104°F), tap water for a minimum of one minute and until evidence of debris, soil, and cleaning solution are visually removed. Use a large syringe (e.g., 50ml or greater) filled to capacity with tap water to thoroughly flush lumens and channels. Actuate joints, handles and other moveable device features to rinse thoroughly. 9. Remove the devices and repeat the rinsing using in ambient, < 40°C (104°F) critical water (high purity water generated by

2019-10-28 12:59:53

processes such as RO, deionization or distillation) for at least 15 seconds. 10. Remove and dry device using a clean, soft, lint-free cloth or clean compressed air. Ensure that all lumens and articulated areas are dried using compressed air.

Cleaning: Automated 1. Prepare a neutral or mild alkaline cleaning solution (pH 7 to 9) in accordance to the detergent manufacturer’s instructions. The temperature of the solution should be ≤ 40°C (104°F) for manual cleaning. NOTE: The cleaning solution may contain enzymes. Aluminum-safe alkaline cleaners can be used, but can vary in material compatibility overtime based on their formulation. Material compatibility should be confirmed with the detergent manufacturer. 2. Immerse devices and parts in the detergent solution, and soak for a minimum of 5 minutes. 3. While immersed, use a soft non-metallic bristle brush (plastic bristles, like nylon) or sponge to thoroughly scrub all traces of blood and debris from all device surfaces for at least one minute. 4. Ensure all lumens are thoroughly brushed. Push the brush through the entire length of the lumen using a twisting motion to remove debris from both ends for at least one minute 5. During cleaning, actuate joints, handles and other movable device features to expose all areas to the detergent solution, if applicable. Ensure all lumens are flushed for at least one minute. 6. Load the device components in the washer-disinfector in accordance with manufacturer’s instructions, ensuring that the devices and lumens can drain freely. 7. Automated washing shall be conducted in a validated washerdisinfector in compliance to ISO 15883-1 and-2, or to an equivalent standard. Automated washing can be included as part of a validated washing, disinfection, and/or drying cycle in accordance to manufacturer’s instructions. An example of a validated cycle used for cleaning validation included: Recirculation Time (mins) Water Temp Detergent/Water Type 2 Cold Tap Water N/A Neutral, Enzymatic Enzyme wash 1 < 40°C (104°F) Cleaner Wash 5 66°C (151°F) Neutral pH Detergent Tap water Rinse 2 > 40°C (104°F) Critical water Rinse 0.25 Ambient (RO, deionized or distilled water) Phase Pre-wash

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

6 of 14

Step 4: Thermal Disinfection

Step 6: Maintenance and Inspection

Thermal disinfection is recommended to render devices safe for handling prior to steam sterilization. Thermal disinfection should be conducted in a washer-disinfector compliant to ISO 15883-1 and-2, or to an equivalent standard. Thermal disinfection in the washer-disinfector shall be validated to provide an A0 of at least 600 (e.g., 90°C (194°F) for 1 min). Higher levels of A0 can be achieved by increasing the exposure time and temperature (e.g., A0 of 3000 at > 90°C (194°F) for 5 min, in accordance with local requirements). Load the device components in the washer-disinfector in accordance with manufacturer’s instructions, ensuring that the devices and lumens can drain freely. Evenly rinsed surfaces can achieve required heating curve for thermal disinfection. If possible use an irrigating rack /load carrier with connections designed to ensure an adequate flow of process fluids to the lumen or cannulation of the device if provided.

Instruments should be visually inspected under ambient lighting, to verify that the devices do not have visible soil, damage or moisture.

The following automated cycles are examples of validated cycles: Phase Thermal Disinfection Thermal Disinfection

Recirculation Time (mins) 1 5

Water Temp

Water Type Critical water (RO, deionized > 90°C (194°F) or distilled water) Critical water (RO, deionized > 90°C (194°F) or distilled water)

Step 5: Drying It is recommended that drying is conducted in a washer-disinfector compliant to ISO 15883-1 and-2, or to an equivalent standard. Drying efficiency in washer-disinfectors can range considerably based on the automated system design and load configuration. The following automated cycle is an example of a validated cycle: Phase Dry

Recirculation Time (mins) 7

Air Temp Max. °C (°F) 140 (284)

Air Type Medical grade

Following automated drying, inspect the device for residual moisture. Any residual moisture identified should be dried manually (as described below).

For manual drying: ••Ensure each device is dried and inspected thoroughly. ••For external surfaces, use a clean, soft, lint-free cloth to avoid damage to the surface. ••Open and close any applicable devices during drying. Pay special attention to any device threads, ratchets and hinges or areas where fluid can accumulate. Clean, compressed air (e.g., medical grade) may be used to facilitate surface drying. ••Dry all lumen/cannulated parts using clean compressed air (e.g., medical grade).

2019-10-28 12:59:53

Inspect devices for: ••Lack of moisture. If moisture is detected, manually drying should be performed. ••Cleanliness. If any residual soil is discovered during inspection, repeat the cleaning steps on those devices until all visible soil is removed from the device. ••Damage, including but not limited to, corrosion (rust, pitting), discoloration, excessive scratches, flaking, cracks and wear ••Proper function, including but not limited to, sharpness of cutting tools, bending of flexible devices, movement of hinges/ joints/box locks and moveable features such as handles, ratcheting and couplings and missing or removed part numbers Improperly functioning devices, devices with unrecognizable markings, missing or removed (buffed off) part numbers, damaged and worn devices should be discarded. Disassembled devices should be reassembled prior to sterilization when specified. Lubricate any moving parts with a water-soluble surgical instrument lubricant. The lubricant should be approved for use on medical devices and provided with data to ensure biocompatibility and compatibility with steam sterilization.

Step 7: Packaging Place cleaned, dry devices into the specified locations within the cases provided, if applicable. Only legally marketed, and locally approved sterilization barriers (e.g. wraps, pouches or containers) should be used for packaging terminally sterilized devices, in compliance to the manufacturer’s instructions.

Step 8: Sterilization Steam (moist heat) sterilization shall be performed in a locally approved, pre-vacuum (forced air removal) cycle. The steam sterilizer should be validated to the requirements of any local standards and guidance such as EN 285 or AAMI/ANSI ST8. The steam sterilizer should be installed and maintained in compliance to manufacturer’s instructions and local requirements. Ensure that the steam sterilizer cycle is chosen that is designed to remove air from porous or lumened device loads in accordance to manufacturer’s instructions and does not exceed the criteria for sterilizer load.

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

7 of 14

The following steam sterilization cycles are examples of validated cycles: Minimum Steriliza- Minimum Sterilization Conditioning tion Exposure Time Exposure Phase (minutes) Temperature Prevacuum 4 132°C (270°F) Prevacuum 3 134°C (274°F)

Dry Time* 30 minutes 30 minutes

Extended steam exposure cycle can be used to meet local requirements such as 134°C (274°F) for 18 minutes. The efficiency of steam sterilizer drying can range considerable depending on the sterilizer design, loading, packaging and steam supply during the sterilization process. The user should employ verifiable methods (e.g. visual inspections) to confirm adequate drying. Extended drying within the sterilizer or in an external drying cabinet in accordance with manufacturer’s instructions may be necessary. Do not exceed 140°C (284°F) during drying. Immediate-Use steam sterilization is only intended for individual instruments and should only be performed when approved by local policies. DePuy Synthes does not support immediate-use steam sterilization of instrument sets, cases or implants using this method. The following steam sterilization cycle is an example of a validated cycle for individual instruments only: ••Unwrapped instrument ••A minimum 3 (three) pulse pre-vacuum cycle ••132°C (270°F) for 4 minutes

Step 9: Storage Sterilized products should be stored in a dry, clean environment, protected from direct sunlight, pests, and extremes of temperature and humidity. Refer to sterilization wrap or rigid container manufacturers IFU for limits on sterile product storage time and storage requirements for temperature and humidity.

ADDITIONAL INFORMATION Cleaning agent information: Examples of detergents that have been used during cleaning validations include Prolystica™ 2X Concentrate Enzymatic Cleaner, Prolystica™ 2X Neutral Detergent, Enzol™, Endozime™, Neodisher Medizym™, Terg-A-Zyme™, and NpH-Klenz™. The chemical quality of the water used during reprocessing can impact device safety. Facilities should use the recommended water quality requirements for device reprocessing in accordance with local guidance (such as AAMI TIR 34, Water for the reprocessing of medical devices) and these instructions for use.

2019-10-28 12:59:53

These instructions for use have been validated in accordance with ISO 17664. It remains the responsibility of the facility to ensure that the processing is performed using equipment, materials and personnel at a designated area, and achieves the desired requirements. This includes validation and routine monitoring of the process. Likewise, any deviation by the processor from these recommendations should be evaluated for effectiveness and any potential adverse consequences. All personnel using these instructions should be qualified with documented expertise, competency and training. Users should be trained on healthcare facility policies and procedures along with current applicable guidelines and standards.

MAGNETIC RESONANCE (MR) COMPATIBILITY The ISOLA, VSP, MOSS MIAMI, TIMX, and MONARCH Spine Systems have not been evaluated for safety and compatibility in the MR environment. They have not been tested for heating or migration in the MR environment.

USAGE WARNING: The safety and effectiveness of pedicle screw spinal systems have been established only for spinal conditions with significant mechanical instability or deformity requiring fusion with instrumentation. These conditions are significant mechanical instability or deformity of the thoracic, lumbar, and sacral spine secondary to severe spondylolisthesis (grades 3 and 4) of the L5-S1 vertebra, degenerative spondylolisthesis with objective evidence of neurologic impairment, fracture, dislocation, scoliosis, kyphosis, spinal tumor, and failed previous fusion (pseudarthrosis). The safety and effectiveness of these devices for any other conditions are unknown. PRECAUTION: The implantation of pedicle screw spinal systems should be performed only by experienced spinal surgeons with specific training in the use of this pedicle screw spinal system because this is a technically demanding procedure presenting a risk of serious injury to the patient. The surgeon must be thoroughly knowledgeable not only in the medical and surgical aspects of the implant, but must also be aware of the mechanical and metallurgical limitations of metallic surgical implants. Postoperative care is extremely important. The patient must be instructed in the limitations of the metallic implant and be warned regarding weight bearing and body stresses on the appliance prior to firm bone healing. The patient should be warned that noncompliance with postoperative instructions could lead to failure of the implant and possible need thereafter for additional surgery to remove the device. Refer to the individual system surgical technique manuals for additional important information.

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

8 of 14

DePuy Spine Spinal System components should not be used with components from other manufacturers. Stainless steel components may interfere with the quality of imaging obtained using MRI. When using spine plates, use the shortest plate possible for each procedure. Minimal plate length will reduce the possibility of interference with other bony structures. When using spine plates, it is important that the plates be contoured to mirror or to create the desired anatomic curves. During the surgical procedure, the rods may be cut to size and shaped to provide correction and maintain proper anatomic lordotic and kyphotic alignment. When using anterior thoracic/lumbar screw fixation systems, staples, staple washers and washers are available to optimize proper staple/screw/rod alignment and stability.

is limited clinical data on pediatric use of these spinal systems. The implanting surgeon should consider carefully the size and type of implants most suitable for the pediatric patient’s age, size, weight and skeletal maturity. Since pediatric patients may have additional growth potential following implant surgery, the likelihood of a subsequent removal and/or revision surgery is greater in these patients.

POSTOPERATIVE MOBILIZATION Until X-rays confirm the maturation of the fusion mass, external immobilization (such as bracing or casting) is recommended. Instructions to the patient to reduce stress on the implants are an equally important part of the attempt to avoid the occurrence of clinical problems that may accompany fixation failure.

CONTRAINDICATIONS

Screw diameters of 11mm and 12mm are indicated for use only in the sacrum or Ilium. Pre-operative use of CT imaging to determine the appropriate screw diameter, length, insertion trajectory, and clearance is strongly recommended when large diameter screws are indicated.

Disease conditions that have been shown to be safely and predictably managed without the use of internal fixation devices are relative contraindications to the use of these devices.

After solid fusion occurs, these devices serve no functional purpose and may be removed. In some cases, removal is indicated because the implants are not intended to transfer or to support forces developed during normal activities. Any decision to remove the device must be made by the physician and the patient taking into consideration the patient’s general medical condition and the potential risk to the patient of a second surgical procedure.

Severe osteoporosis is a relative contraindication because it may prevent adequate fixation of spinal anchors and thus preclude the use of this or any other spinal instrumentation system.

Based on fatigue testing results, when using the MOSS MIAMI 4.0mm Rod System components in a unilateral anterior construct, the physician/surgeon should consider the levels of implantation, patient weight, patient activity level, other patient conditions, etc., which may impact on the performance of this system. These devices are not intended or expected to be the only mechanism for support of the spine. Regardless of the etiology of the spinal pathology, for which implantation of these devices was chosen, it is the expectation and requirement that a spinal fusion or arthrodesis be planned and obtained. Without solid biological support provided by spinal fusion, the devices cannot be expected to support the spine indefinitely and will fail in any of several modes. These modes may include bone-metal interface failure, implant fracture, or bone failure. When using Pediatric ISOLA posterior spinal instrumentation in children, it is preferable that children be above the age of 10 but need not have reached skeletal maturity. In special circumstances, implants may be used at younger ages. Due to the difficulties in conducting randomized prospective studies with children, there

2019-10-28 12:59:53

Active systemic infection or infection localized to the site of the proposed implantation are contraindications to implantation.

Any entity or condition that totally precludes the possibility of fusion, i.e., cancer, kidney dialysis, or osteopenia is a relative contraindication. Other relative contraindications include obesity, certain degenerative diseases, and foreign body sensitivity. In addition, the patient’s occupation or activity level or mental capacity may be relative contraindications to this surgery. Specifically, patients who because of their occupation or lifestyle, or because of conditions such as mental illness, alcoholism, or drug abuse, may place undue stresses on the implant during bony healing and may be at higher risk for implant failure. See also the WARNINGS, PRECAUTIONS AND POSSIBLE ADVERSE EFFECTS CONCERNING TEMPORARY METALLIC INTERNAL FIXATION DEVICES section of this insert.

WARNINGS, PRECAUTIONS, AND POSSIBLE ADVERSE EFFECTS CONCERNING TEMPORARY METALLIC INTERNAL FIXATION DEVICES Following are specific warnings, precautions, and possible adverse effects that should be understood by the surgeon and explained to the patient. These warnings do not include all adverse effects that can occur with surgery in general, but are important considerations particular to metallic internal fixation devices. General surgical risks should be explained to the patient prior to surgery.

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

9 of 14

WARNINGS 1. CORRECT SELECTION OF THE IMPLANT IS EXTREMELY IMPORTANT. The potential for satisfactory fixation is increased by the selection of the proper size, shape, and design of the implant. While proper selection can help minimize risks, the size and shape of human bones present limitations on the size, shape and strength of implants. Metallic internal fixation devices cannot withstand activity levels equal to those placed on normal healthy bone. No implant can be expected to withstand indefinitely the unsupported stress of full weight bearing. 2. IMPLANTS CAN BREAK WHEN SUBJECTED TO THE INCREASED LOADING ASSOCIATED WITH DELAYED UNION OR NONUNION. Internal fixation appliances are load-sharing devices which are used to obtain alignment until normal healing occurs. If healing is delayed, or does not occur, the implant may eventually break due to metal fatigue. The degree or success of union, loads produced by weight bearing, and activity levels will, among other conditions, dictate the longevity of the implant. Notches, scratches or bending of the implant during the course of surgery may also contribute to early failure. Patients should be fully informed of the risks of implant failure. 3. MIXING METALS CAN CAUSE CORROSION. There are many forms of corrosion damage and several of these occur on metals surgically implanted in humans. General or uniform corrosion is present on all implanted metals and alloys. The rate of corrosive attack on metal implant devices is usually very low due to the presence of passive surface films. Dissimilar metals in contact, such as titanium and stainless steel, accelerate the corrosion process of stainless steel and more rapid attack occurs. The presence of corrosion often accelerates fatigue fracture of implants. The amount of metal compounds released into the body system will also increase. Internal fixation devices, such as rods, hooks, etc., which come into contact with other metal objects, must be made from like or compatible metals. 4. PATIENT SELECTION. In selecting patients for internal fixation devices, the following factors can be of extreme importance to the eventual success of the procedure: A. The patient’s weight. An overweight or obese patient can produce loads on the device that can lead to failure of the appliance and the operation. B. The patient’s occupation or activity. If the patient is involved in an occupation or activity that includes heavy lifting, muscle strain, twisting, repetitive bending, stooping, running, substantial walking, or manual labor, he/she should not return to these activities until the bone is fully healed. Even with full healing, the patient may not be able to return to these activities successfully.

2019-10-28 12:59:53

C. A condition of senility, mental illness, alcoholism, or drug abuse. These conditions, among others, may cause the patient to ignore certain necessary limitations and precautions in the use of the appliance, leading to implant failure or other complications. D. Certain degenerative diseases. In some cases, the progression of degenerative disease may be so advanced at the time of implantation that it may substantially decrease the expected useful life of the appliance. For such cases, orthopaedic devices can only be considered a delaying technique or temporary remedy. E. Foreign body sensitivity. The surgeon is advised that no preoperative test can completely exclude the possibility of sensitivity or allergic reaction. Patients can develop sensitivity or allergy after implants have been in the body for a period of time. F. Smoking. Patients who smoke have been observed to experience higher rates of pseudarthrosis following surgical procedures where bone graft is used. Additionally, smoking has been shown to cause diffuse degeneration of intervertebral discs. Progressive degeneration of adjacent segments caused by smoking can lead to late clinical failure (recurring pain) even after successful fusion and initial clinical improvement.

PRECAUTIONS 1. SURGICAL IMPLANTS MUST NEVER BE REUSED. An explanted metal implant should never be reimplanted. Even though the device appears undamaged, it may have small defects and internal stress patterns which may lead to early breakage. Reuse can compromise device performance and patient safety. Reuse of single use devices can also cause cross-contamination leading to patient infection. 2. CORRECT HANDLING OF THE IMPLANT IS EXTREMELY IMPORTANT. Contouring of metal implants should only be done with proper equipment. The operating surgeon should avoid any notching, scratching or reverse bending of the devices when contouring. Alterations will produce defects in surface finish and internal stresses which may become the focal point for eventual breakage of the implant. Bending of screws will significantly decrease the fatigue life and may cause failure. 3. CONSIDERATIONS FOR REMOVAL OF THE IMPLANT AFTER HEALING. If the device is not removed after the completion of its intended use, any of the following complications may occur: (1) Corrosion, with localized tissue reaction or pain; (2) Migration of implant position resulting in injury; (3) Risk of additional injury from postoperative trauma; (4) Bending, loosening, and/ or breakage, which could make removal impractical or difficult;

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

10 of 14

(5) Pain, discomfort, or abnormal sensations due to the presence of the device; (6) Possible increased risk of infection; and (7) Bone loss due to stress shielding. The surgeon should carefully weigh the risks versus benefits when deciding whether to remove the implant. Implant removal should be followed by adequate postoperative management to avoid refracture. If the patient is older and has a low activity level, the surgeon may choose not to remove the implant thus eliminating the risks involved with a second surgery. 4. ADEQUATELY INSTRUCT THE PATIENT. Postoperative care and the patient’s ability and willingness to follow instructions are among the most important aspects of successful bone healing. The patient must be made aware of the limitations of the implant, and instructed to limit and restrict physical activities, especially lifting and twisting motions and any type of sports participation. The patient should understand that a metallic implant is not as strong as normal healthy bone and could loosen, bend and/or break if excessive demands are placed on it, especially in the absence of complete bone healing. Implants displaced or damaged by improper activities may migrate and damage the nerves or blood vessels. An active, debilitated, or demented patient who cannot properly use weight-supporting devices may be particularly at risk during postoperative rehabilitation. 5. CORRECT PLACEMENT OF ANTERIOR SPINAL IMPLANT. Due to the proximity of vascular and neurologic structures to the implantation site, there are risks of serious or fatal hemorrhage and risks of neurologic damage with the use of this product. Serious or fatal hemorrhage may occur if the great vessels are eroded or punctured during implantation or are subsequently damaged due to breakage of implants, migration of implants or if pulsatile erosion of the vessels occurs because of close apposition of the implants.

POSSIBLE ADVERSE EFFECTS Potential complications and adverse effects with these systems are similar to those with other spinal instrumentation systems. These complications may include: 1. Bending or fracture of implant. 2. Loosening of the implant. 3. Metal sensitivity or allergic reaction to a foreign body. 4. Infection, early or late. 5. Nonunion, delayed union. 6. Decrease in bone density due to stress shielding.

8. Nerve damage due to surgical trauma or presence of the device. Neurological difficulties including bowel and/or bladder dysfunction, impotence, retrograde ejaculation, and paraesthesia. 9. Bursitis. 10. Paralysis. 11. Dural tears experienced during surgery could result in the need for further surgery for dural repair, a chronic CSF leak or fistula, and possible meningitis. 12. Death. 13. Vascular damage due to surgical trauma or presence of the device. Vascular damage could result in catastrophic or fatal bleeding. Malpositioned implants adjacent to large arteries or veins could erode these vessels and cause catastrophic bleeding in the late postoperative period. 14. Screw back out, possibly leading to implant loosening, and/or reoperation for device removal. 15. Damage to lymphatic vessels and/or lymphatic fluid exudation. 16. Spinal cord impingement or damage. 17. Fracture of bony structures. 18. Degenerative changes or instability in segments adjacent to fused vertebral levels.

Additional Possible Adverse Effects for Anterior ISOLA Spine System 19. Loss of normal spinal contours. 20. Cessation of growth of the fused portion of the spine. 21. Pulmonary complications.

LIMITED WARRANTY AND DISCLAIMER PRODUCTS FROM DEPUY SYNTHES PRODUCTS, INC. ARE SOLD WITH A LIMITED WARRANTY TO THE ORIGINAL PURCHASER AGAINST DEFECTS IN WORKMANSHIP AND MATERIALS. ANY OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE HEREBY DISCLAIMED. IF MORE THAN TWO YEARS HAVE ELAPSED BETWEEN THE DATE OF ISSUE/REVISION OF THIS INSERT AND THE DATE OF CONSULTATION, CONTACT DEPUY SYNTHES SPINE FOR CURRENT INFORMATION AT +1-800-365-6633 OR AT +1-508-880-8100.

7. Pain, discomfort, or abnormal sensations due to the presence of the device.

2019-10-28 12:59:53

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

11 of 14

SYMBOL TRANSLATION STERILE STERILE

LOT LOT NUMBER REF REF CATALOG NUMBER

SINGLE USE

DO NOT RESTERILIZE

QTY QUANTITY SZ SIZE MADE IN MADE IN NTI NEURAL TISSUE INSTRUMENT IOM NEUROMONITORING INSTRUMENTS

Federal (USA) law restricts this device to sale by or on the order of a physician

T2

ATTENTION. SEE INSTRUCTIONS FOR USE

T1

Lower Limit of temperature = T1 Upper Limit of temperature = T2

PACKAGE CONTAINS FLAMMABLE LIQUID

25°C

STERILE A Sterile medical device processed using aseptic technique STERILE R STERILIZATION BY IRRADIATION STERILE EO STERILIZATION BY ETHYLENE OXIDE LATEX FREE LATEX FREE

STORE AT ROOM TEMPERATURE

KEEP AWAY FROM SUNLIGHT

DO NOT USE IF PACKAGE IS DAMAGED

NON STERILE

MSR MEASURING DEVICE

NONSTERILE NONSTERILE

MANUFACTURER

DATE OF MANUFACTURE US REP US REPRESENTATIVE EC REP AUTHORIZED EUROPEAN REPRESENTATIVE DIST DISTRIBUTED BY XXXX-XX USE BY

MATERIAL MATL A/T ACROFLEX®/Ti ACROFLEX®/Titanium

P/F PL/FOAM Plastic/Foam

A AI Aluminum

PY Polyester

A/P Al/PL Aluminum/Plastic

PEEK/C PEEK/CARBON FIBER COMPOSITE Polyether Ether Ketone/ Carbon Fiber Composite

B/R Ba/RADEL® Barium/RADEL® Ba/PEEK Barium Sulfate (BaSO4)/ PEEK Polymer CaP CALCIUM PHOSPHATE Calcium Phosphate CM CoCrMo Cobalt Chromium Molybdenum CMTC CoCrMo/Ti/CALCIUM PHOSPHATE Cobalt Chromium Molybdenum/Titanium/ Calcium Phosphate CoNiCrMo Cobalt Nickel Chromium Molybdenum F

FOAM Foam

PEEK OPTIMA® Polyether Ether Ketone P

POLYMER Polymer

P/CM PE/CoCrMo Polyethylene/Cobalt Chromium Molybdenum P/C POLYMER/CARBON FIBER COMPOSITE Polymer/ Carbon Fiber Composite Si/NITINOL Silicone/Nitinol S SS Stainless Steel S/A SS/Al Stainless Steel/Aluminum

SRSI SS/RADEL®/SILICONE Stainless Steel/RADEL® / Silicone SRSN SS/RADEL®/ SILICONE/Ti Al Nitride Stainless Steel/RADEL® / Silicone/Titanium Aluminum Nitride SS/RADEL®/ SILICONE/Ti Nitride Stainless Steel/RADEL®/ Silicone/Titanium Nitride SRTA SS/RADEL®/Ti Al Nitride Stainless Steel/RADEL® / Titanium Aluminum Nitride STA SS/Ti Al Nitride Stainless Steel/ Titanium Aluminum Nitride S/U SS/ULTEM Stainless Steel/Ultem T Ti Titanium and its alloys S/R SS/RADEL® Stainless Steel/RADEL®

Ti/HA Titanium/Hydroxyapatite Ti/UHMWPE/HA Titanium/Ultra-High Molecular Weight Polyethylene/Hydroxyapatite SS/Ti Stainless Steel/Titanium SS/Al/SILICONE Stainless Steel/ Aluminum/Silicone SS/SILICA GLASS Stainless Steel/Silica Glass SS/SILICA GLASS/ PL/SILICONE Stainless Steel/Silica Glass/ Plastic /Silicone SS/SILICA GLASS/ RADEL® /SILICONE Stainless Steel/Silica Glass/ RADEL® /Silicone SS/SILICA GLASS/ SILICONE Stainless Steel/ Silica Glass/Silicone

R/T

S/SI SS/SILICONE POLYOLEFIN RUBBER/Ti SBR Stainless Steel/Silicone HA This document isStainless valid only on the date printed. If unsure of the print date, please Polyolefin Rubber/Titanium Steel/Barium/ ® 2019-10-28 12:59:53 Hydroxyapatite RADEL re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). SS/WC/SILICONE T/A Ti/Al The onus resides with the user to ensure that the most up-to-date IFU is used. Stainless Steel/Tungsten S/P SS/PHENOLIC NiTi Ni/Ti Titanium/Aluminum Carbide/Silicone Stainless Steel/Phenolic Nickel/Titanium SS/Ba/RADEL®

12 of 14

to sale by or on the order of a physician

NONSTERILE NONSTERILE

MSR MEASURING DEVICE

KEEP AWAY FROM SUNLIGHT

USE BY

MATERIAL MATL A/T ACROFLEX®/Ti ACROFLEX®/Titanium

P/F PL/FOAM Plastic/Foam

A AI Aluminum

PY Polyester

A/P Al/PL Aluminum/Plastic

PEEK/C PEEK/CARBON FIBER COMPOSITE Polyether Ether Ketone/ Carbon Fiber Composite

B/R Ba/RADEL® Barium/RADEL® Ba/PEEK Barium Sulfate (BaSO4)/ PEEK Polymer CaP CALCIUM PHOSPHATE Calcium Phosphate CM CoCrMo Cobalt Chromium Molybdenum CMTC CoCrMo/Ti/CALCIUM PHOSPHATE Cobalt Chromium Molybdenum/Titanium/ Calcium Phosphate CoNiCrMo Cobalt Nickel Chromium Molybdenum F

2019-10-28 12:59:53

FOAM Foam

PEEK OPTIMA® Polyether Ether Ketone P

POLYMER Polymer

P/CM PE/CoCrMo Polyethylene/Cobalt Chromium Molybdenum P/C POLYMER/CARBON FIBER COMPOSITE Polymer/ Carbon Fiber Composite Si/NITINOL Silicone/Nitinol S SS Stainless Steel S/A SS/Al Stainless Steel/Aluminum SS/Ba/RADEL®

HA Hydroxyapatite

SBR Stainless Steel/Barium/ RADEL®

NiTi Ni/Ti Nickel/Titanium

S/P SS/PHENOLIC Stainless Steel/Phenolic

PL Plastic

S/PL SS/PL Stainless Steel/Plastic

SRSI SS/RADEL®/SILICONE Stainless Steel/RADEL® / Silicone SRSN SS/RADEL®/ SILICONE/Ti Al Nitride Stainless Steel/RADEL® / Silicone/Titanium Aluminum Nitride SS/RADEL®/ SILICONE/Ti Nitride Stainless Steel/RADEL®/ Silicone/Titanium Nitride SRTA SS/RADEL®/Ti Al Nitride Stainless Steel/RADEL® / Titanium Aluminum Nitride STA SS/Ti Al Nitride Stainless Steel/ Titanium Aluminum Nitride S/U SS/ULTEM Stainless Steel/Ultem T Ti Titanium and its alloys S/R SS/RADEL® Stainless Steel/RADEL® R/T POLYOLEFIN RUBBER/Ti Polyolefin Rubber/Titanium T/A Ti/Al Titanium/Aluminum Ti/CoCrMo Titanium/Cobalt Chromium Molybdenum

Ti/HA Titanium/Hydroxyapatite Ti/UHMWPE/HA Titanium/Ultra-High Molecular Weight Polyethylene/Hydroxyapatite SS/Ti Stainless Steel/Titanium SS/Al/SILICONE Stainless Steel/ Aluminum/Silicone SS/SILICA GLASS Stainless Steel/Silica Glass SS/SILICA GLASS/ PL/SILICONE Stainless Steel/Silica Glass/ Plastic /Silicone SS/SILICA GLASS/ RADEL® /SILICONE Stainless Steel/Silica Glass/ RADEL® /Silicone SS/SILICA GLASS/ SILICONE Stainless Steel/ Silica Glass/Silicone S/SI SS/SILICONE Stainless Steel/Silicone SS/WC/SILICONE Stainless Steel/Tungsten Carbide/Silicone W/C Tungsten Carbide

This document is valid only on the date printed. If unsure of the print date, please re-print to ensure use of the latest revision of the IFU (available at www.e-ifu.com). The onus resides with the user to ensure that the most up-to-date IFU is used.

13 of 14

*

*

DePuy Spine, Inc. 325 Paramount Drive Raynham, MA 02767-0350 USA

Medos International SÀRL Chemin-Blanc 38 2400 Le Locle, Switzerland

* For recognized manufacturer, refer to product label. EC REP

DePuy International, Ltd. St. Anthony’s Road Leeds LS11 8DT England Phone: +44 113 270 0461 FAX:   +44 113 272 4101 Revised November 2019 © DePuy Synthes 2013-2019. All rights reserved.
