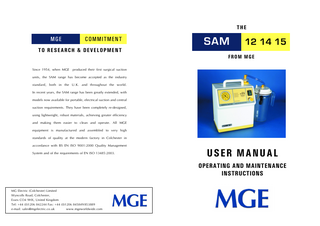

SAM 12, 14 and 15 Operating and Maintenance Manual Issue 05

© Copyright MG Electric (Colchester) Limited

SAM

All Rights Reserved. Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

Mains & Battery Powered Suction:

12

Manual 117 Issue 5, June 2008

S

AM

OTHER PRODUCTS IN THE SAM RANGE

12

14

14

Intensive care low vacuum suction unit

SAM 35

Major operating theatre high vacuum suction unit

15

15

Return of Medical Equipment Should you wish to return any equipment to MG Electric (Colchester) Limited, or one of our designated distributors, Health Service Guideline HSG (93) 26 (Decontamination of equipment prior to inspection, service or repair) must be adhered to. Failure to follow this guideline will invalidate any warranty claims and result in the equipment being destroyed.

SAM 18

SAM 36

Twin jar intra-uterine aspirator unit

SAM 420

Portable emergency suction unit

SAM 420LX

Portable emergency aspirator unit

SAM HOSPY

General high vacuum suction unit

SAM 17T

Thoracic Theatre suction unit

SAM 17W

Thoracic Ward suction unit

SAM 427

Thoracic Portable emergency suction unit

High Vacuum Pipeline Regulators:

S

2 1

4 1

M A S

5 1

SAM 50

High vacuum pipeline regulator with remote probe

SAM 51

High vacuum pipeline regulator with direct probe

SAM 54

High vacuum pipeline regulator - remote probe & mobile trolley

M A

Low Vacuum Pipeline Regulators:

medi cal suct ion

SAM 52

Low vacuum pipeline regulator with remote probe

SAM 53

Low vacuum pipeline regulator with direct probe

NOTES

19

SAM 12, 14, 15

THANK YOU Dear Customer, May we take this opportunity to thank you for purchasing a SAM 12, SAM 14 or SAM 15 Medical Suction Unit.

Please read the operating instructions and listed precautions thoroughly before attempting to operate the unit.

MGE manufactures its range in accordance with the requirements of BS EN ISO 9001 and ISO 13485.

Certificate No. FM 15051 BS EN ISO 9001

User Manual

0086

1

CONTENTS Page 1

General Description

2

Instructions for Use

- Operation

6

Maintenance

- Daily - Monthly - Three Monthly - Flow Diagram - Circuit Diagram

9

Options

10

Recommended Spares

12 13 14 15 16 17

SAM12,14 & 15 Spare Parts Assembly

18

Technical Specifications

19

Notes

General Dimensions -

375

7 8

18

TECHNICAL SPECIFICATIONS

- SAM 2 Bottle Diagram - Liner Systems - Pump - Diagram - SAM 14 General Layout - SAM 12 & 15 General Layout - Mobile Assembly

GENERAL DESCRIPTIONS THE SAM 12 is a general purpose medical suction unit with a single collection container designed for all medical procedures which require an adjustable high vacuum. It is designed either for domiciliary use or use within a healthcare facility. It is not intended for field and transport use. THE SAM 14 is a general purpose medical suction unit with two collection containers designed for all medical procedures which require an adjustable high vacuum. It is designed either for domiciliary use or use within a healthcare facility. It is not intended for field and transport use. THE SAM 15 surgical suction unit is a high vacuum unit for use in intra-uterine procedures with a single collection container fitted with a wide bore top complete with specimen filter. The SAM 15 range of high performance suction units is designed for theatre or ward use within a healthcare

260

Free air-flow (litres/minute): Vacuum: Performance classification: Nominal collection container capacity: Power input (watts): Standard supply voltages available: Capacitor: Fuse type: Electrical protection: Electric motor classification: Weight: Noise level:

200

220

30 lt/min (max) 650mmHg (min) High vacuum High flow (ISO 10079-1) 2 Litres 90W 230v +/- 10% ~ 50/60 Hz 110v +/- 5% ~ 50/60 Hz 220v-250v 4uF 110v -120V 12uF 220v-250v: (F) 1.0A 110v -120V (F) 2.0A Type B, Applied part to EN60601-1 Class II double insulated (No Earth) to EN60601-1 BS2757 Class B (insulated). Auto reset thermal cut out 10Kg 65 dB (a)

facility. They are not intended for field and transport use.

CAUTION The SAM 12, 14 and 15 suction units must never be operated in the presence of flammable gases. Suction units should never be operated unless a suitable medical filter is fitted (bacterial or hydrophobic). Isolate mains supply before removing cover for maintenance. The warranty may be invalidated if genuine MGE spare parts are not used when carrying out maintenance on SAM units.

IMPORTANT INFORMATION Correct disposal of the product in accordance with EC directive 2002/96/EC At the end of its life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

17

SPARE PARTS ASSEMBLY

BEFORE operating your new SAM unit please read the following instructions carefully. Check that the voltage supply is as printed on the rating plate fitted to the back of the SAM unit. Connect the desired collection system securely in place on the clip(s) fitted to the side of the unit. Connect the desired equipment to the patient inlet tube on the collection container top. Connect the unit to the power supply. Switch the SAM unit on by pressing the green rocker switch so that it illuminates. The lamp indicates the SAM unit is operating and ready for use.

Mobile Assembly - SAM 12, SAM 14, SAM 15

8880 BLOCK 8894 SCREW 8094 HANDLE

Gauge (Manometer)- Indicated Vacuum The unit has a gauge fitted to allow the vacuum to be set at a pre-determined level and monitored during use. To achieve the desired degree of vacuum occlude the tubing fitted to the patient inlet on the collection container top, read the indicated vacuum on the gauge, and operate the vacuum control valve until the required degree of vacuum is achieved. (Turning the knob clockwise increases the vacuum). The SAM unit is now set to operate at the selected vacuum. SAM 14 only 2nd Contamination Defence Filter

6447 SLEEVE

5985 SCREW

2557 WASHER

WASHER 10890

10894 WHEEL 11206 WASHER

080.22UU SPACER 10948 SCREW

10895 AXLE

2

INSTRUCTIONS FOR USE

Vacuum Gauge

Vacuum Control

SAM 14 only Changeover valve Contamination Defence Filter Connection To Collection Vessel

7848 GUARD

Collection Vessel Clip

ON OFF Switch

Contamination Defence Air Filter Assembly The air filter is a sealed disposable air filter capsule and is fitted between the vacuum connector and the filter capsule mount. The filter capsule is manufactured in high impact polystyrene encapsulating a bonded micro glass fibre disc. The 0.3 micron particle retention of the filter medium gives not less than 99.985% D.O.P. and provides an effective barrier against aerosol contamination. The connector, mount, and 'O' rings are autoclavable. The filter capsule is disposable and must not be autoclaved, but renewed in accordance with the recommendations detailed in the 'Daily Procedures'. Internal Protection The SAM unit has fitted internally a Hydrophobic Filter capsule to prevent ingress of foreign material into the pump. The filter is disposable and must not be autoclaved, but renewed in accordance with the ‘3 monthly maintenance’ recommendation on page 7 of this manual. Cleaning of Case To clean the outside of the SAM unit simply wipe with a damp cloth or a mild disinfectant solution. Do not use solvent-based cleaning agents, and avoid contact with excessive moisture.

INSTRUCTIONS FOR USE

3

Fluid Collection Containers Caution - All collection containers must be securely mounted when in use.

General layout - SAM 12 and SAM 15

MGE 'SAM 2' The SAM 12, SAM 14, and SAM 15 suction units are fitted as standard with fully autoclavable Polyester Carbonate (P.E.C.) collection containers (SAM 2) with integral handle. The container is connected to the SAM unit via a moulded vacuum connector of the same type as that fitted to the air filter assembly.

MSP1004 ELBOW CONNECTOR (PACK OF 10) 10531

Overflow Protection Valve - SAM 2 The overflow valve is designed to shut off the vacuum to the SAM 2 collection container when the fluid level reaches 1750ml. When the valve operates, the SAM 12 and SAM 15 units must be switched off and the full container replaced by an empty one. The SAM 14 has two (SAM 2) collection containers and where appropriate the full container may be replaced by the second container through operation of the changeover valve located on the top of the unit. It should be noted that even after the valve has shut off, fluid might continue to be drawn into the container to an extent dependent upon the level of vacuum in the container at the time when the valve closes. Warning: The overflow valve may not operate fully against frothing. To prevent frothing anti-foam agent may be used. Liquid sucked through to the motor will cause damage and invalidate the warranty. As a precaution, a hydrophobic filter has been fitted internally to prevent liquid passing through. Please refer to the ‘3 monthly maintenance’ on page 7 for fitting instructions. Note: Hydrophobic filters only work once and should be replaced immediately it becomes wetted.

MSP1002 BACTERIAL FILTER (PACK OF 24) 060.31UU MSP1003 HYDROPHOBIC FILTER (PACK OF 24) 8176

MSP1001 GAUGE 040.08UU

MSP1007 SWITCH 7430 MSP1027 HANDLE

MSP1021 'O' RING 450.97UU 10532 FILTER MOUNT 210.63UU WASHER

MSP1017 FILTER MOUNT

MSP1066 BACK PANEL 10768

210.77UU SCREW MSP1059 NYLON SCREW (SET OF 8) 10874

10093 SPRING 010.08UU NUT 210.05UU WASHER 070.03UU MSP1005 VALVE FASTENER 10668 CABLE CLIP 10743 WASHER

MSP1058 CASE 10766

MSP1055 CABLE CLIP

MSP1217 TUBING 10688 BOTTLE BRACKET

210.87UU FASTENER

MSP1054 FASTENER MSP1207 PUMP MQ25

01-0089 MOUNTING BRACKET

Cleaning Procedure All the container components can be cleaned either by a hot disinfectant wash at 85°C or in a standard high temperature autoclave at a maximum temperature of 138°C. The tubing used in conjunction with this equipment is a replaceable item. It should be changed regularly according to the level of usage and where it has become in any way contaminated. Solvent-based cleaners must not be used. Transport and Storage The transport and storage of this equipment is detailed as follows:Transport: Equipment will be adequately boxed and protected to ensure no damage occurs during normal transportation of goods provided the ambient conditions are within the following parameters: Temperature max +60°C min -20°C Humidity max +80% min +30% Storage: Equipment should be stored indoors and should not exceed the temperature and humidity conditions stated above. The equipment should be stored in its original packaging provided no external damage is evident.

MSP1021 'O' RING 450.96UU

10677 CAP 10676 KNOB

Disposable Liner Systems The SAM 12, SAM 14, and SAM 15 units are designed to accept various disposable liner systems. When fitted, protection of the unit against overflow is entirely dependent upon the correct use of the appropriate liner in accordance with the manufacturers instructions. Further information may be found in the maintenance and spares section of this manual. Bacterial Filters must be used No liability can be accepted by MGE for units affected by the occurrence of overflow when Disposable Liner Systems are being used.

16

SPARE PARTS ASSEMBLY

10669 TERMINAL BLOCK

220.34UU CAP MSP1015 FILTER (PACK OF 10) 020.22UU

MSP1045 A/V MOUNT (PACK OF 4) 10458

450.63UU NOZZLE MOUNT 450.18RU LOCK NUT

MSP1025 MSP1067 FUSEHOLDER FUSE (PACK OF (PACK OF 10) 10) 170.58UU 020.41UU

MSP1059 (SET OF 6) 5985

040.01UU RUBBER FOOT

COLLECTION VESSEL REFER TO LIST FOR SAM 2 OR LINER SYSTEM

MSP1064 BASE 10771

MSP1056 EXHAUST ASSY (PACK OF 10)

15

SPARE PARTS ASSEMBLY

Instructions by Medical Staff to Patients When the equipment is required by a patient for domiciliary use, Medical Staff must fully instruct the patient on the safe operation of the equipment. In the event of equipment contamination or failure, the patient must be advised to switch off the unit and contact the authority from which the unit is loaned.

General layout - SAM 14

MSP1004 ELBOW CONNECTOR (PACK OF 10) 10531

MSP1002 BACTERIAL FILTER (PACK OF 24) 060.31UU MSP1003 HYDROPHOBIC FILTER (PACK OF 24) 8176 MSP1001 GAUGE 040.08UU

MSP1007 SWITCH 7430

MSP1069 CHANGEOVER VALVE 10291 MSP1027 HANDLE

MSP1021 'O' RING 450.96UU

Hose Connections for differing collection systems

MSP1021 'O' RING 450.97UU 10532 FILTER MOUNT 210.63UU WASHER 210.77UU SCREW

MSP1017 FILTER MOUNT

MSP1066 BACK PANEL 10768

MSP1059 NYLON SCREW (SET OF 8) 10874

10677 CAP 10676 KNOB 10093 SPRING 010.08UU NUT 210.05UU WASHER

MSP1005 FASTENER

070.03UU VALVE 10668 CABLE CLIP 10743 WASHER

MSP1090 CASE 10196

MSP1055 CABLE CLIP

MSP1218 TUBING 10688 BOTTLE BRACKET

210.87UU FASTENER

MSP1054 BRACKET MSP1207 PUMP MQ25

01-0089 MOUNTING BRACKET

10669 TERMINAL BLOCK

MSP1045 A/V MOUNT (PACK OF 4) 10458

450.63UU NOZZLE MOUNT 450.18RU LOCK NUT MSP1025 MSP1067 FUSEHOLDER FUSE (PACK OF (PACK OF 10) 10) 170.58UU 020.41UU 04-0263 BASE 040.01UU RUBBER FOOT

COLLECTION VESSEL REFER TO LIST FOR SAM 2 OR LINER SYSTEM

220.34UU CAP MSP1015 FILTER (PACK OF 10) 020.22UU

MSP1059 (SET OF 6) 5985

4

INSTRUCTIONS FOR USE

MSP1056 EXHAUST ASSY (PACK OF 10)

SAM 2 Collection System - Standard · Place the canister(s) in the bracket(s). Connect the tubing from the Filter to the angle connector in the centre of the lid. · Connect the patient tube to the patient connection. · Turn on the SAM suction unit. · Check the desired vacuum is established. · After the suction procedure - disconnect the patient tube.

Abbott Receptal Closed disposable suction system · Place the canister/s in the cradle/s making sure that the canister tee is tight. Fully extend the liner, and place it into the canister. Make sure that the liner is tightly secured in the canister. · The liner incorporates an internal shut off valve, which protects the vacuum source from contamination. Connect the vacuum source tubing (from the filter) to one side of the canister tee and the lid to the other side using the 'yellow to yellow' coding. · Connect the patient tube to the patient connection, either directly or by using the optional elbow piece, which prevents kinking of the patient tubing.

Filter

Patient Connection Angled connector

Patient connection

Tee Connection Yellow to Yellow

Filter

· Turn on the SAM unit to inflate the liner and the Receptal is now ready for use. · For maximum safety and to minimise the risk of contamination when dismantling, the fluid level must not rise above the 'DO NOT FILL ABOVE THIS LINE' mark on the canister. · At the end of the procedure, the SAM unit should remain switched on while the patient suction tubing is removed from the patient port and discarded. · Disconnect the liner lid tubing from the canister tee and immediately reconnect the yellow connector to the patient port with a push and twist motion. · Turn the vacuum off and use the thumb tab to remove the liner for disposal. The liner lid tubing must not be used as a carry handle.

INSTRUCTIONS FOR USE

5

Serres Suction Bag System The system comprises the Suction Bag (A), The Canister (B), and the angle connector (C) Single Suction bag · Place the canister (B) in the bracket. Connect the tubing from the SAM filter to the angle connector (C). · Unfold the suction bag (A) and push it down tightly into the suction canister. · Connect the patient tube to the patient connection. · Turn on the SAM unit. · Check the desired vacuum is established and the suction bag is fully inflated by kinking the patient tube. · After the suction procedure - disconnect the patient tube and close the connection with the plug provided on the lid. · Turn OFF the SAM unit.

14

SAM 12, 14 & 15 SPARE PARTS ASSEMBLY

Pump Head Connector Set MSP1209 Seal Kit MSP1211

MQ25 Pump Complete 230V 50/60Hz MSP1207 Con-Rod Assembly MSP1259

If necessary, the suction canister only, may be washed (85°C) and autoclaved (121°C). Before washing, disconnect the angle connector.

The SAM 12, 14 and 15 are also compatible with other disposable liner systems such as Vacsax and Pennine and can be modified for use with any collection system.

SAM medical suction

ORDER REF.

PACK DESCRIPTION

COMPONENT DESCRIPTION

MSP1211

Pump head service kit MQ25 comprising Consumable spares service kitMQ25/45 pump

Valve Assembly x2 Diaphragm x1 Pump head O-rings x2 Pump head O-rings x2 Valve Assembly x2 Disposable filter capsule x 1 Filter mount O-ring Vacuum Connector O-ring Exhaust filter Bottle top grommet Bottle top O-ring Overflow valve assembly Neo tube x 200mm Bleed valve/exhaust tube assy. Bleed valve tube assembly 10 Cable ties Neo tube x 200mm Bleed valve/exhaust tube assy. Bleed valve tube assembly 10 Cable ties

MSP1212

MSP1217

SAM 12 internal tubing assembly

MSP1218

SAM 14 internal tubing assembly

Note: To replace an existing LQ25 Pump with an MQ25 requires the following complete kit: ORDER REF. PACK DESCRIPTION COMPONENT DESCRIPTION MSP1235 SAM 12/15 MQ25 replacement for LQ25 MQ25 Mounting bracket MSP1239 SAM 14 MQ35 replacement for LQ25 MQ25 Nut M5 x4 Washer M5 x4 Washer plain M5 x4 Tubing assembly

13

SAM 12, 14 & 15 SPARE PARTS ASSEMBLY Abbott Receptal

6

MAINTENANCE

IMPORTANT: Other than routine daily procedures, maintenance or repairs to MGE products must be carried out by fully qualified engineers or an authorised MGE representative. Caution - Isolate the SAM unit from the mains power supply before carrying out any maintenance or repairs. Canister 10441 Liner Ring Holder 01-0220

Abbott Receptal

Daily Procedures · An anti-foam agent may be put into the fluid collection container, without disinfectant solution, before use to prevent the possibility of frothing. It should not however, be placed into the container for extended storage periods. · In accordance with ISO 10079-1 it is recommended that the Contamination Defence (CD) filter capsule be changed after each days use, or immediately if it becomes wetted by froth, or, after aspiration of any infective material. · Examine the collection container for damage. Replace if necessary. · Examine the external tubing for ageing, damage, or contamination. Replace if necessary using equivalent tubing. Vacuum Connector To collection Vessel

Serres System

Contamination Defence (Biological) Filter

Filter Mount

Grey Elbow

Bottle Clip 05-0001

2 litre Serres System

Canister 05-0003

Liner

Monthly Maintenance · Check the vacuum and the flow at the collection container top. Procedure - in accordance with EN ISO 10079-1 With the collection container empty and the vacuum control valve set to maximum, switch on the unit and read the indicated vacuum on the gauge. Occlude the suction inlet (Patient connection) on the collection container top and note the time taken for the gauge to indicate an increase to 450mm hg (60 kPa) vacuum. This time should not exceed 10 seconds. The gauge should continue to rise and stabilise to indicate the maximum vacuum available, and this should be not less than 590mm hg (78.7 kPa). · Replace the exhaust filters in the exhaust outlet housing located on the side of the casing and marked 'Exhaust Outlet'. · Carry out the daily maintenance procedure.

MAINTENANCE

7

Three Monthly Maintenance · Carry out the monthly procedure · Poor performance of the unit would indicate the internal pump requires maintenance. · Before any work is carried out, disconnect the electrical supply to the unit. · Remove the back cover. Pump Maintenance - If Required · Remove the pump from the outer case. · Remove the pump head from the pump casing and examine the diaphragm for signs of wear. · Check the ballrace within the connecting rod for excessive movement. Replace the connecting rod and ballrace if necessary. · Remove both pump head nozzles from the pump head. · Remove the transfer valves. · Clean the valve seats and check the valves for signs of wear. · Replace any worn or damaged components as necessary and re-assemble. · Return the pump unit to the outer case and re-connect the internal tubing. Three Monthly Maintenance cont... · Check the internal and external tubing for ageing or wear. Replace with equivalent tubing where necessary. · Replace the hydrophobic filter. Note - the filter must always be fitted the correct way - see flow diagram. When replacing filters -particularly the hydrophobic filter - it is important to ensure the filter is connected correctly to suit the direction of flow. The filters will only operate efficiently in one direction. The diagram indicates the correct orientation installed in the pipework. · Check the internal wiring for ageing or wear. Replace with equivalent TO PUMP material and terminations where necessary. · Examine the mains cable for wear or damage and replace if necessary using equivalent cable. · Replace the back cover. Do not overtighten the rear cover fixings. (Recommended torque 20 cNm ) · Examine the collection container for damage. Replace if necessary. · Examine the overflow valve float mechanism (SAM 2) to ensure that this has free movement. · SAM 14 only - Check the function of the changeover valve. · Check the vacuum and flow performance at the collection container as previously described. Testing - Any dismantling and re-assembly of this equipment - for whatever purpose - must be followed by testing in accordance with the manufacturers recommendations as specified for Monthly maintenance. Long Term Storage When the units are held in storage, or used very infrequently, the three monthly maintenance period may be extended to twelve months. Particular care must be taken when inspecting flexible components, such as valves, diaphragms, to ensure embrittlement has not occurred. SAM units should be stored in a cool, dry environment.

12

SAM 12, 14 & 15 SPARE PARTS ASSEMBLY SAM 2 Collection Bottle

Bottle Complete SAM 2

Grommet MSP1049 (090.24U

Bottle Top Assembly MSP1047

‘O’ Ring MSP1051 (10662)

Overflow Valve Assembly MSP1048

Jar MSP1050 (10661)

SAM 2 Intra-Uterine Collection Bottle

Grommet MSP1049 (090.24U Gauze Tubinette MSP1075 ‘O’ Ring MSP1074 SAM 2 IntraUterine Bottle Complete

Jar MSP1050 (10661) (10661)

Bottle Top Assembly MSP1071

Overflow Valve Assembly MSP1048 (090.34UU)

‘O’ Ring MSP1051 (10662)

Spares - All spares (except disposable liners) detailed in this section can be purchased by the user. It is recommended that only competent persons should undertake the replacement of spare parts.

11

SPARES ORDER REF.

PACK DESCRIPTION

MSP1065 MSP1066 MSP1069 MSP1071 MSP1073

100 M5 nut SAM 12/14/15 plastic case (back) SAM 14 Changeover valve IU plastic bottle top assembly SAM 15 plastic label set

MSP1076 MSP1090 MSP1144

MSP1146 MSP1147

MSP1150

MSP1152 MSP1153 MSP1154 MSP1155 MSP1156 MSP1207 MSP1208 MSP1209 MSP1218 MSP1225 MSP1259

MSP1352

COMPONENTS

8

MAINTENANCE

COMPONENT DESCRIPTION

210.61UU M4 nut 10768 SAM 12/14/15 plastic case (back) 10291 SAM 14 Changeover valve 10946 IU bottle top assembly 10671 SAM fascia panel 10982 SAM 5 ID label SAM 14 plastic label set 10671 SAM Fascia panel SAM 14 case (top cover) 10196 SAM 14 case (top) Filter modification kit 040.54UU 4-way connector 060.14UU Change label 060.31UU Disposable bacterial filter 10531 Yellow vacuum connector 10532 Yellow filter capsule mount 210.63UU M4 washer 210.77UU M3.5 screw 450.96UU Elbow O ring 450.97UU Mount O ring SAM 12/14/18 Abbott conversion kit 01-0220 Abbott ring holder 10441 Abbott canister 10442 Abbott liner (blue) SAM 12/14/18 mobile conversion kit 080.29UU Plastic spacer 10948 No. 8 screw 5985 M6 nylon screw 10890 Washer 8mm 10894 Grey wheel 10895 SAM unit axle 11146 Mobile instruction leaflet SAM 12/14/18 glass to SAM 2 2 litre collection container complete SAM 2 conversion kit 10531 Yellow elbow connector 10688 Bottle bracket clip 11045 PVC tube 8mm ID 210.87UU Screw M5 450.96UU Elbow O ring 7370 5mm dome nut 8916 Instruction sheet SAM 12/14/18 foot-switch 8033 Foot-switch assembly 1103 Bedside stand SAM 12/15/18 SAM 12/18 bedside kit SAM 14 bedside kit 11137 Bedside stand SAM 14 Patient bubble tubing Patient multi-fit bubble tubing 30m. 090.33UU 11045 Tube 8mm ID Tube/bottle-to filter 30m Pump & motor 230V 50/60Hz MQ25 Pump Complete Motor 230V 50/60Hz Motor 230V 50/60Hz Pump head connectors MQ25 Pump head connector set Neoprene tube SAM 14 internal tubing assembly 10 x 2amp 20mm fuses 11159 2 amp fuse x 20mm Con rod/diaphragm assembly MQ25 Pump Con rod Diaphragm Assembly Bearing Screw M6 x 60 Eccentric Screw M5 x 12 Manual 117 SAM 12, 14, 15 User manual

FLOW DIAGRAM FROM PATIENT

CONTAMINATION DEFENCE FILTER

BLEED VALVE

HYDROPHOBIC FILTER

COLLECTION VESSEL PUMP

EXHAUST

CIRCUIT DIAGRAM

FUSE HOLDER POWER SUPPLY

L1

PUMP MOTOR

Fuse 220V-250V - 1.0A(F) 110V-120V - 2.0A(F)

220Vac/250Vac - 1~50/60Hz 110Vac/120Vac - 1~50/60Hz

N TERMINAL BLOCK

SWITCH DPST

9

OPTIONS Options and Recommended Spares THE SAM 12 is a high vacuum suction unit, incorporating one collection vessel and offering mobile, static and bedside models. THE SAM 14 is a high vacuum suction unit, incorporating two collection vessels and offering mobile, static and bedside models

THE SAM 15 is a high vacuum suction unit, incorporating one collection vessel with a wide bore top and specimen filter and offering mobile, static and bedside models.

ORDER REF. SAM12/01010101 SAM14/01010101 SAM15/01010101 SAM12/01010102 SAM14/01010102 SAM15/01010102 SAM12/01030101 SAM14/01030101 SAM15/01030101 SAM12/01030102 SAM14/01030102 SAM15/01030102 SAM12/01070101 SAM14/01070101 SAM15/01070101 SAM12/01070102 SAM14/01070102 SAM15/01070102 SAM12/01010501 SAM14/01010501 SAM15/01010501 SAM12/01010502 SAM14/01010502 SAM15/01010502 SAM12/01030501 SAM14/01030501 SAM15/01030501 SAM12/01030502 SAM14/01030502 SAM15/01030502 SAM12/01070501 SAM14/01070501 SAM15/01070501 SAM12/01070502 SAM14/01070502 SAM15/01070502

VOLTAGE

COLLECTION VESSEL

VERSION

MODEL

220/240V, 50/60Hz

Polycarbonate

UK

Static

10

SPARES

All spares detailed in the following section can be purchased by the user. It is recommended that only competent persons should undertake the replacement of spare parts. ORDER REF.

PACK DESCRIPTION

COMPONENTS

COMPONENT DESCRIPTION

SAM 2 MSP1001 MSP1002 MSP1003 MSP1004

2 litre collection container 0-760mmHg vacuum gauge 24 disposable bacterial filters 24 disposable hydrophobic filters Pack of 10 yellow connectors

MSP1005 MSP1007 MSP1015 MSP1017

Vacuum control assembly Green on/off switch Pack of 10 exhaust filters Pack of 10-filter mounts-yellow

SAM 2 040.08UU 060.33UU 8176 10531 450.96UU 10981 7430 020.22UU

Complete bottle assembly 0-760mmHg vacuum gauge 24 disposable bacterial filters 24 disposable hydrophobic filters Yellow elbow connector Elbow connector O ring Vacuum control assembly On/off switch Exhaust filter

10532 450.97UU 210.63UU 210.77UU

Yellow filter capsule mounts Filter mount 'O' ring M4 washer Screw - M3.5 x 10 lg

450.96UU 450.97UU 020.41UU 10258 10843 2361

10 connector 'O' rings 10 mount 'O' rings Fuse holder Screw Handle Washer

220/240V, 50/60Hz

Polycarbonate

UK

Mobile

220/240V, 50/60Hz

Abbott

UK

Static

MSP1021

Filter 'O' rings

220/240V, 50/60Hz

Abbott

UK

Mobile

MSP1025 MSP1027

10 fuse holders Handle assembly

220/240V, 50/60Hz

Serres

UK

Static

MSP1045

Pack 4 anti vibration mounts MQ25 10458 10459 210.61UU 210.63UU

A/V mount Screw - M4 x 5 lg M4 nut M4 shake washer

MSP1047 MSP1048 MSP1049 MSP1050 MSP1051 MSP1053

Bottle top assembly Pack of 10-overflow valve Pack of 10-bottle top grommet Pack of 4 SAM 2 bottle Pack of 10 SAM 2 bottle top 'O' ring Pack of 10 rubber feet

MSP1054

Pack of 10 bottle bracket clip

Bottle top complete Overflow valve Bottle top grommet SAM 2 bottle SAM 2 bottle top 'O' ring Rubber feet Fixing screws Bottle bracket clip Dome nut M5 fixing screw Cable cleat Starlock washer Exhaust assemblies SAM fascia panel SAM 12 ID label SAM 12/18 case (top) 6 - Nylon screw M6 x 16 lg 8 - Nylon screw M6 x 40 lg M5 washer M4 shake washer M5 nut SAM 12/14/15 plastic case (base)

220/240V, 50/60Hz

Serres

UK

Mobile

220/240V, 50/60Hz

Polycarbonate

European

Static

220/240V, 50/60Hz

Polycarbonate

European

Mobile

220/240V, 50/60Hz

Abbott

European

Static

220/240V, 50/60Hz

Abbott

European

Mobile

220/240V, 50/60Hz

Serres

European

Static

MSP1055 MSP1056

Pack of 10 cable cleat Pack of 10-exhaust assembly

220/240V, 50/60Hz

Serres

European

Mobile

MSP1057

SAM 12 plastic label set

MSP1058 MSP1059

SAM12/18 case (top cover) SAM plastic case nylon screw set

MSP1060 MSP1061 MSP1062 MSP1064

Pack of 100 M5 washer Pack of 100 M4 shake washer Pack of 100 M5 nut SAM 12/14/15 plastic case (base)

Various voltage options are available on request. User Instruction Manuals are offered in English. Other languages are available on request.

10970 090.34UU 090.24UU 10861 10662 040.01UU 10682 10688 7370 210.87UU 10668 10743 10153 10671 10723 10766 10874 5985 210.17UU 210.63UU 210.79UU 10771
