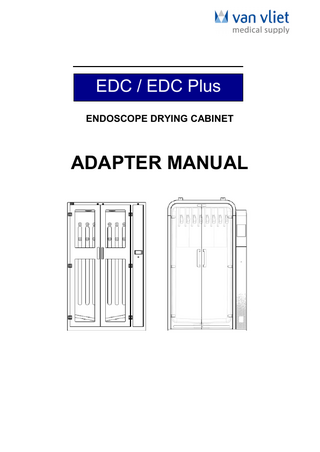

EDC / EDC Plus ENDOSCOPE DRYING CABINET
ADAPTER MANUAL
Van Vliet Medical Supply B.V. Antennestraat 60 1322 AS Almere The Netherlands
Use of the endoscope drying and storage cabinet in any manner other than as described in this manual can result in damage to the machine and/or injury to personnel. Van Vliet Medical Supply B.V. is not responsible in cases of use of the machine by unauthorized persons or for the damage that might be caused as a result.
2
Adapter Manual EDC Plus Version 3.00
Contents 1
2
3
4
General information...5 1.1 User instructions ...5 1.2 Signal words ...5 1.3 Conventions throughout this document ...5 Introduction...6 2.1 Safety information ...6 2.2 Intended use ...6 2.3 Product liability ...6 Connect adapters and maintenance...7 3.1 Connecting of adapter hoses with EDC ...7 3.2 Connecting of adapter hoses with EDC Plus ...8 3.3 Maintenance of adapters ...9 Endoscope adapter sets for EDC / EDC Plus ...10 4.1 Adapter "Olympus 1", for EDC Plus (E0425651) ...10 4.1.1 Connecting Adapter "Olympus 1" ...11 4.2 Adapter "Olympus 2", for EDC Plus (E0425652) ...12 4.2.1 Connecting Adapter "Olympus 2" ...13 4.3 Adapter "Olympus 3", for EDC Plus (E0425653) ...14 4.3.1 Connecting Adapter "Olympus 3" ...15 4.4 Adapter "Olympus 4", for EDC Plus (E0425654) ...16 4.4.1 Connecting Adapter "Olympus 4" ...17 4.5 Adapter "Olympus 5", for EDC Plus (E0425655) ...18 4.5.1 Connecting Adapter "Olympus 5" ...19 4.6 Adapter "Olympus 6", for EDC Plus (E0425656) ...20 4.6.1 Connecting Adapter "Olympus 6" ...21 4.7 Adapter "Olympus 7", for EDC Plus (E0425657) ...22 4.7.1 Connecting Adapter "Olympus 7" ...23 4.8 Adapter "Olympus 8", for EDC Plus (E0425658) ...24 4.8.1 Connecting Adapter "Olympus 8" ...25 4.9 Adapter "Olympus 9", for EDC Plus (E0425659) ...26 4.9.1 Connecting Adapter "Olympus 9" ...27 4.10 Adapter "Olympus 11", for EDC Plus (E0425661) ...28 4.10.1 Connecting Adapter "Olympus 11" ...29 4.11 Adapter "Olympus 12", for EDC Plus (E0425662) ...30 4.11.1 Connecting Adapter "Olympus 12" ...31 4.12 Adapter "Olympus 13", for EDC Plus (E0425663) ...32 4.12.1 Connecting Adapter "Olympus 13" ...33 4.13 Adapter “Olympus 15”, for EDC Plus (WD25661A) ...34 4.13.1 Connecting Adapter “Olympus 15 ...35 4.14 Adapter "Fujifilm 1", for EDC Plus (E0425664) ...36 4.14.1 Connecting Adapter "Fujifilm 1"...37 4.15 Adapter "Fujifilm 2", for EDC Plus (E0425665) ...38 4.15.1 Connecting Adapter "Fujifilm 2"...39 4.16 Adapter "Fujifilm 3", for EDC Plus (E0425666) ...40 4.16.1 Connecting Adapter "Fujifilm 3"...41 4.17 Adapter “Fujifilm 6”, for EDC Plus (WD25672A) ...42 4.17.1 Connecting Adapter “Fujifilm 6” ...43 4.18 Adapter “Fujifilm 8”, for EDC Plus (WD25674A) ...44 4.18.1 Connecting Adapter “Fujifilm 8” ...45 4.19 Adapter “Fujifilm 9”, for EDC Plus (WD25675A) ...46
Adapter Manual EDC Plus Version 3.00
3
5
6
7
4
4.19.1 Connecting Adapter “Fujifilm 9” ...47 4.20 Adapter "Pentax 1", for EDC Plus (E0425667) ...48 4.20.1 Connecting Adapter "Pentax 1" ...49 4.21 Adapter "Pentax 2", for EDC Plus (E0425668) ...50 4.21.1 Connecting Adapter "Pentax 2" ...51 4.22 Adapter "Pentax 3", for EDC Plus (E0425669) ...52 4.22.1 Connecting Adapter "Pentax 3" ...53 4.23 Adapter "Pentax 4", for EDC Plus (E0425670) ...54 4.23.1 Connecting Adapter "Pentax 4" ...55 4.24 Adapter "Pentax 5", for EDC Plus (E0425671) ...56 4.24.1 Connecting Adapter "Pentax 5" ...57 4.25 Adapter "Pentax 6", for EDC Plus (E0425672) ...58 4.25.1 Connecting Adapter "Pentax 6" ...59 4.26 Adapter "Pentax 7", for EDC Plus (E0425673) ...60 4.26.1 Connecting Adapter "Pentax 7" ...61 4.27 Adapter "Pentax 8", for EDC Plus (WD25680A) ...62 4.27.1 Connecting Adapter "Pentax 8" ...63 4.28 Adapter "Pentax 11", for EDC Plus (WD25683A) ...64 4.28.1 Connecting Adapter "Pentax 11" ...65 4.29 Adapter "Pentax 14", for EDC Plus (WD25686A) ...66 4.29.1 Connecting Adapter "Pentax 14" ...67 4.30 Adapter "Karl Storz 1", for EDC Plus (E0425674)...68 4.30.1 Connecting Adapter "Karl Storz 1" ...69 4.31 Adapter "Karl Storz 2", for EDC Plus (E0425675)...70 4.31.1 Connecting Adapter "Karl Storz 2" ...71 4.32 Adapter "Karl Storz 3", for EDC Plus (WD25690A) ...72 4.32.1 Connecting Adapter "Karl Storz 3" ...73 4.33 Adapter "Karl Storz 4", for EDC Plus (WD25691A) ...74 4.33.1 Connecting Adapter "Karl Storz 4" ...75 4.34 Adapter "Karl Storz 5", for EDC Plus (WD25692A) ...76 4.34.1 Connecting Adapter "Karl Storz 5" ...77 4.35 Adapter "Richard Wolf 1", for EDC Plus (E0425678) ...78 4.35.1 Connecting Adapter "Richard Wolf 1"...79 4.36 Intermediate piece EDC/EDC Plus adapter (W7132226) ...80 4.37 Endoscopes without internal channels ...81 Parameters for EDC Plus ...82 5.1 Parameters for Olympus endoscope adapters ...82 5.2 Parameters for Pentax endoscope adapters ...83 5.3 Parameters for Fujifilm endoscope adapters ...84 5.4 Parameters for Karl Storz endoscope adapters ...85 5.5 Parameters for Richard Wolf endoscope adapters ...85 5.6 Parameters for Endoscopes without channels ...86 Parameters for EDC ...87 6.1 Parameters for Olympus endoscope adapters ...87 6.2 Parameters for Pentax endoscope adapters ...88 6.3 Parameters for Fujifilm endoscope adapters ...89 6.4 Parameters for Karl Storz endoscope adapters ...90 6.5 Parameters for Richard Wolf endoscope adapters ...90 6.6 Parameters for Endoscopes without channels ...91 Manufacturer ...92
Adapter Manual EDC / EDC Plus Version 3.00
1 General information This product is under constant development. Even though all efforts are made to always update this adapter manual, we reserve the right to change technical data and equipment without previous announcement. This product is a non-medical device. All rights reserved.
1.1 User instructions
These instructions for use contain essential information on using these products safely and effectively. The complete set of instructions for use for these products consists of the following documents: • EDC Plus instructions for use • EDC Plus accessory manual • EDC Plus adapter manual In addition, for cleaning and disinfection of the products refer to EDC Plus instruction for use. • Before use, thoroughly read these instructions for use and the instructions for use of all other products that will be used during the procedure. • If the required instructions for use are missing, immediately contact your local Olympus representative. • Keep the instructions for use in a safe, accessible location.
1.2 Signal words
The following signal words are used throughout these instructions for use: WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. NOTICE Indicates a property damage message.
1.3 Conventions throughout this document This is the safety alert symbol. It is used to alert the user to potential physical injury hazards. Observe all safety messages that follow this symbol to avoid possible injury. This symbol indicates additional helpful information. 1) A numeration indicates a sequence of actions. • Bullet points indicate the listing of data, options or objects.
Adapter Manual EDC Plus Version 3.00
5
2 Introduction 2.1 Safety information
Before using the adapters, read the EDC Plus instructions for use carefully to prevent injury to the user and damage to the equipment. Always clean and disinfect all accessories before use (refer to EDC Plus instructions for use). Carry out all activities with disinfected hands and using gloves. NOTICE Only trained staff is allowed to operate the EDC Plus. NOTICE Extreme care must be taken when using aggressive cleaning agents (refer to EDC Plus instructions for use). Olympus will provide user training after installation of the EDC Plus. If you would appreciate any further support for regular training, please contact your local Olympus representative. If you have any questions concerning the topics covered in this adapter manual or the operation or safety of the equipment, please contact your Olympus representative or the nearest Olympus office.
2.2 Intended use
Use EDC Plus adapters for endoscope channel drying of flexile medical endoscopes mentioned in this adapter manual only. Connect the adapter set like it is explained in this manual to ensure an adequate drying and storage of the endoscope.
2.3 Product liability
The manufacturer only assumes liability for the safety, reliability and performance of this equipment if:
6
•
Installation, extension, readjustments, alterations or repairs are undertaken by technicians authorized by Olympus.
•
The equipment is used according to the instructions given in this manual and the EDC Plus instructions for use.
Adapter Manual EDC / EDC Plus Version 3.00
3
Connect adapters and maintenance
3.1 Connecting of adapter hoses with EDC EDC Plus adapter hoses can be connected with EDC by using an intermediate piece in between.
1
2
2 3
Figure 3.1: Connection of EDC Plus adapter hoses with EDC
1) Connector of EDC: Plug the intermediate piece in the connector of EDC. 2) Intermediate piece EDC/EDC Plus adapter. 3) EDC Plus adapter hoses: Plug the EDC Plus adapter nipple in the hose of the intermediate piece. To disconnect the hoses from the EDC push the ring back to the wall, the connection loosens and the EDC Plus adapter hose can be taken out. NOTICE Do not remove the EDC Plus adapter or the intermediate piece with force. It can damage the adapter.
Adapter Manual EDC Plus Version 3.00
7
3.2 Connecting of adapter hoses with EDC Plus
Push the nipple in the connector to connect the adapter hose to the EDC Plus. To disconnect the hoses on the endoscope hanger of the EDC Plus push the ring back to hanger, the connection nipple loosens and the adapter hose can be taken out.
Holder disconnect
Connector
Nipple connect
Endoscope adapter
Figure 3.1: Nipple and connector
NOTICE Do not remove the adapter hose with force from the nipple. It can damage the adapter.
8
Adapter Manual EDC / EDC Plus Version 3.00
3.3 Maintenance of adapters
Pay attention to all adapter sets if they still work properly e.g. discoloring or missing O-rings of the channel separator etc. Replace damaged parts immediately. Therefore, contact your Olympus representative and refer the EDC Plus instructions for use for more details. WARNING Risk of injury to the patient The adapter sets must be cleaned and disinfected by wiping the outer surface prior to use or after every use. Once a week clean and disinfect the outer and inner surface of the adapter sets (refer to EDC Plus instructions for use). The adapters are influenced by the dry air which blows through the hoses and the connectors. Replace the adapters after every third year. On the nipple in the beginning of the adapter hose a colored hose is mounted which will be replaced by the manufacturer every year. In the following table the colored hose showing the exchange schedule: Year of Production
Colour of Adapter
2019
Replace in year
Replace for colour
2022
2020
2023
2021
2024
2022
2025
2023
2026
2024
2027
2025
2028
2026
2028 Table 3.1: Nipple and color scheme showing adapter hose replacement
Adapter Manual EDC Plus Version 3.00
9
4 Endoscope adapter sets for EDC / EDC Plus 4.1 Adapter "Olympus 1", for EDC Plus (E0425651)
Figure 4.1: Adapter "Olympus 1" for standard GI endoscopes without auxiliary water channel
Suitable for the following Olympus endoscopes: CF-140
CF-H260AZI
CF-Q240L
GIF-N180
GIF-Q260
GIF-XV10
PCF-240AL
CF-140I
CF-H260AZL
CF-Q240ZI
GIF-N260
GIF-Q40
PCF-140
PCF-PQ260L
CF-140L
CF-H260DI
CF-Q240ZL
GIF-P140
GIF-SP240
PCF-140AI
PCF-Q260AI
CF-140S
CF-H260DL
CF-Q260AI
GIF-PQ260
GIF-XP150N
PCF-140AL
PCF-Q260AL
CF-160DI
CF-H260I
CF-Q260AL
GIF-PQ260I
GIF-XP160
PCF-140I
PCF-S
CF-160DL
CF-H260L
CF-Q260DI
GIF-PQ260L
GIF-XP170N
PCF-140L
SIF-H190PS
CF-240AI
CF-LV1I
CF-Q260DL
GIF-Q140
GIF-XP180N
PCF-160AI
SIF-H290S
CF-240AL
CF-LV1L
CF-XQ260N GIF-Q145
GIF-XP190N
PCF-160AL
SIF-Q140
CF-240DL
CF-Q140I
GIF-140
GIF-Q150
GIF-XP240
PCF-240
SIF-Q180
CF-240I
CF-Q140L
GIF-160
GIF-Q160
GIF-XP260
PCF-240I
SIF-Q240
CF-240L
CF-Q150I
GIF-180
GIF-Q160AL
GIF-XP260N
PCF-240L
SIF-Q245
CF-260AL
CF-Q150L
GIF-240
GIF-Q160Y9
GIF-XP260NS
PCF-240S
SIF-Q260
CF-260DL
CF-Q160Z
GIF-FQ260Z GIF-Q160Z
GIF-XP290N
PCF-P240AI
TJF-180V
CF-40I
CF-Q160ZI
GIF-H170
GIF-Q165
GIF-XQ140
PCF-P240AL
TJF-Q180
CF-40L
CF-Q160ZL
GIF-H180
GIF-Q180
GIF-XQ160
PCF-PH190I
TJF-Q180V
CF-H260AI
CF-Q240AI
GIF-H185
GIF-Q240
GIF-XQ240
PCF-PH190L
TJF-Q190V
CF-H260AL
CF-Q240AL
GIF-H260
GIF-Q240X
GIF-XQ260
PCF-PQ260I
TJF-Q290V
CF-H260AXL
CF-Q240I
GIF-H290
GIF-Q240Z
GIF-XQ40
PCF-240AI
10
Adapter Manual EDC / EDC Plus Version 3.00
4.1.1 Connecting Adapter "Olympus 1"
Figure 4.2: Connecting Adapter "Olympus 1" with the endoscope
Adapter Manual EDC Plus Version 3.00
11
4.2 Adapter "Olympus 2", for EDC Plus (E0425652)
Figure 4.3: Adapter "Olympus 2" for standard GI endoscopes with auxiliary water channel
Suitable for the following Olympus endoscopes: CF-180
CF-H290L
CF-Q165L
GIF-Q260J
PCF-HQ150AL
CF-FH260AZI
CF-HQ190I
CF-Q180
GIF-XTQ160
PCF-Q150AI
CF-FH260AZL
CF-HQ190L
CF-Q180AI
PCF-H180AI
PCF-Q160AI
CF-H170I
CF-HQ290I
CF-Q180AL
PCF-H180AL
PCF-Q160AL
CF-H170L
CF-HQ290L
CF-Q180L
PCF-H190DI
PCF-Q180AI
CF-H180AI
CF-HQ290ZI
GIF-1T160
PCF-H190DL
PCF-Q180AL
CF-H180AL
CF-HQ290ZL
GIF-1TH190
PCF-H190I
PCF-Q180L
CF-H180DI
CF-Q145I
GIF-1TQ160
PCF-H190L
PCF-Q260AZI
CF-H180DL
CF-Q160
GIF-H180AI
PCF-H190TI
PCF-Q260J
CF-H180I
CF-Q160AI
GIF-H180J
PCF-H190TL
PCF-Q260JI
CF-H180J
CF-Q160AL
GIF-H190
PCF-H290DI
PCF-Q260JL
CF-H180L
CF-Q160DI
GIF-H190L
PCF-H290DL
PSF-1
CF-H185I
CF-Q160DL
GIF-H260Z
PCF-H290I
TGF-UC180J
CF-H185L
CF-Q160I
GIF-H290EC
PCF-H290L
TGF-UC260J
CF-H190I
CF-Q160I2
GIF-H290T
PCF-H290TI
CF-H190L
CF-Q160L
GIF-H290Z
PCF-H290TL
CF-H290ECI
CF-Q160S
GIF-HQ190
PCF-H290ZI
CF-H290I
CF-Q165I
GIF-HQ290
PCF-H290ZL
12
Adapter Manual EDC / EDC Plus Version 3.00
4.2.1 Connecting Adapter "Olympus 2"
Figure 4.4: Connecting Adapter "Olympus 2" with the endoscope
Adapter Manual EDC Plus Version 3.00
13
4.3 Adapter "Olympus 3", for EDC Plus (E0425653)
Figure 4.5: Adapter "Olympus 3" for EUS UC endoscopes
Suitable for the following Olympus endoscopes: GF-UC140P
GF-UC240P-AL5
GF-UC140P-AL5
GF-UCT140
GF-UC140P-DO5
GF-UCT140-AL5
GF-UC140T-AL5
GF-UCT140-DO5
GF-UC160-AT8
GF-UCT160-AL5
GF-UC160F-OL8
GF-UCT160-AL8
GF-UC160P-AL5
GF-UCT160-AT8
GF-UC160P-AT8
GF-UCT160-OL5
GF-UC160P-OL5
GF-UCT180
GF-UC180P
GF-UCT2000-AL5
GF-UC2000-OL5
GF-UCT2000-OL5
GF-UC2000P-GF
GF-UCT240-AL5
GF-UC2000P-OL5
GF-UCT260
GF-UC240-AL5
14
Adapter Manual EDC / EDC Plus Version 3.00
4.3.1 Connecting Adapter "Olympus 3"
Figure 4.6: Connecting Adapter "Olympus 3" with the endoscope
NOTICE See EDC Plus accessory manual for additional information about holders for a second scope connector.
Adapter Manual EDC Plus Version 3.00
15
4.4 Adapter "Olympus 4", for EDC Plus (E0425654)
Figure 4.7: Adapter "Olympus 4" for GF-UM endoscopes
Suitable for the following Olympus endoscopes: GF-UE140P
GF-UM160
GF-UE160
GF-UM2000
GF-UE160-AL5
GF-UM240
GF-UE165-AL5
GF-UMD140P
GF-UE190
GF-UMD240P
GF-UE260-AL5
GF-UMQ240
GF-UE265-AL5 GF-UE290
16
Adapter Manual EDC / EDC Plus Version 3.00
4.4.1 Connecting Adapter "Olympus 4"
Figure 4.8: Connecting Adapter "Olympus 4" with the endoscope
NOTICE See EDC Plus accessory manual for additional information about holders for a second scope connector.
Adapter Manual EDC Plus Version 3.00
17
4.5 Adapter "Olympus 5", for EDC Plus (E0425655)
Figure 4.9: Adapter "Olympus 5" for JF/TJF endoscopes
Suitable for the following Olympus endoscopes: CF-1T140I
PJF-240
CF-1T140L
TJF-140
GIF-1T140
TJF-140F
GIF-1T140I
TJF-140R
GIF-1T140L
TJF-145
GIF-1T240
TJF-150
GIF-KH260
TJF-160F
GIF-XK240
TJF-160R
JF-140
TJF-160VF
JF-140F
TJF-160VR
JF-140R
TJF-240
JF-1T40
TJF-260V
JF-240 JF-260V PJF-160
18
Adapter Manual EDC / EDC Plus Version 3.00
4.5.1 Connecting Adapter "Olympus 5"
Figure 4.10: Connecting Adapter "Olympus 5" with the endoscope
Adapter Manual EDC Plus Version 3.00
19
4.6 Adapter "Olympus 6", for EDC Plus (E0425656)
Figure 4.11: Adapter "Olympus 6" for CF-2T endoscopes
Suitable for the following Olympus endoscopes: CF-2T140 CF-2T140L CF-2T160I CF-2T160L
