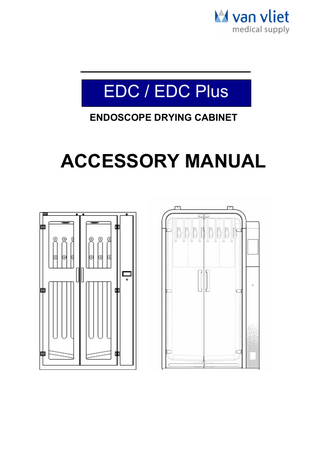

EDC and EDC Plus Accessory Manual

Van Vliet Medical Supply B.V. Antennestraat 60 1322 AS Almere The Netherlands

Use of the accessories of the endoscope storage and drying cabinet in any manner other than as described in this manual can result in damage to the machine and/or injury to personnel. Van Vliet Medical Supply B.V. is not responsible in cases of use of the machine by unauthorised persons or for the damage that might be caused as a result.

2

Accessory Manual EDC / EDC Plus Version 1.00

Contents 1

2

3

4

5

6 6

General information ... 4 1.1 User instructions ... 4 1.2 Signal words ... 4 1.3 Conventions throughout this document ... 4 Introduction ... 5 2.1 Safety information ... 5 2.2 Intended use ... 5 2.3 Product liability ... 5 Holders for a second scope connector ... 6 3.1 Holder "Multi-Use", for light guide connector, for EDC Plus (E0425685) ... 7 3.2 Holder insert “O-1”, for EDC Plus (E0425686) ... 8 3.3 Holder insert “O-3” for EDC Plus(E0425688) ... 9 3.4 Holder insert “O-4”, for EDC Plus (E0425689) ... 10 3.5 Holder insert “P-1”, for EDC Plus (E0425690)... 11 3.6 Holder insert “P-2”, for EDC Plus (E0425691)... 12 3.7 Holder insert “P-3”, for EDC Plus (E0425692)... 13 3.8 Holder insert “F-1”, for EDC Plus (E0425693) ... 14 Endoscope holder for mounting on aluminum rod... 15 4.1 Holder "Multi-Use", for endoscope control unit, for EDC Plus (E0425679) ... 16 4.2 Holder insert, for endoscope without universal cord, for EDC Plus (E0425680) ... 17 4.3 Holder "BF", for bronchoscope control unit, for EDC Plus (E0425681) ... 18 Instrument baskets for endoscope accessories ... 19 5.1 Instrument basket, small, for EDC (E0425627: 7pieces)... 19 5.2 Instrument basket, small, for EDC Plus (E0425682: 4 pieces; E0425683: 8 pieces) ... 20 5.3 Instrument basket, large, for EDC Plus (E0425684: 1 piece) ... 21 Further Accessories ... 22 6.1 Clamping piece, Y-shape, for EDC / EDC Plus (E0425677: 6 pieces) ... 22 Manufacturer and Distributor ... 23

Accessory Manual EDC / EDC Plus Version 1.00

3

1 General information This product is under constant development. Even though all efforts are made to always update this adapter manual, we reserve the right to change technical data and equipment without previous announcement. This product is a non-medical device. All rights reserved.

1.1 User instructions

These instructions for use contain essential information on using these products safely and effectively. The complete set of instructions for use for these products consists of the following documents: • EDC Plus instructions for use • EDC Plus adapter manual • EDC instructions for use • EDC adapter manual In addition, for cleaning and disinfection of the products refer to EDC Plus instruction for use. • Before use, thoroughly read these instructions for use and the instructions for use of all other products that will be used during the procedure. • If the required instructions for use are missing, immediately contact your local Olympus representative. • Keep the instructions for use in a safe, accessible location.

1.2 Signal words

The following signal words are used throughout these instructions for use: WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. NOTICE Indicates a property damage message.

1.3 Conventions throughout this document This is the safety alert symbol. It is used to alert the user to potential physical injury hazards. Observe all safety messages that follow this symbol to avoid possible injury. This symbol indicates additional helpful information. 1) A numeration indicates a sequence of actions. 2)

• Bullet points indicate the listing of data, options or objects.

4

Accessory Manual EDC / EDC Plus Version 1.00

2 Introduction 2.1 Safety information

Before using the accessories, read the EDC / EDC Plus instructions for use carefully to prevent injury to the user and damage to the equipment. Always clean and disinfect all accessories before use (refer to EDC Plus instructions for use). Carry out all activities with disinfected hands and using clean gloves. NOTICE Only trained staff is allowed to operate the EDC / EDC Plus. NOTICE Take care when using aggressive cleaning agents (refer to EDC Plus instructions for use). Olympus will provide user training after installation. If you would appreciate any further support for regular training, please contact your local Olympus representative. If you have any questions concerning the topics covered in this accessory manual or the operation or safety of the equipment, please contact your Olympus representative.

2.2 Intended use

The EDC / EDC Plus accessories support the storage of medical flexible endoscopes in the EDC and EDC Plus. They prevent damage of the endoscopes and allow the storage of the endoscope accessories close to the endoscope.

2.3 Product liability

The manufacturer only assumes liability for the safety, reliability and performance of this equipment if: •

Installation or repair must be performed by a local Olympus representative or an authorized person.

•

The equipment is used according to the instructions given in this manual and the EDC and EDC Plus instructions for use.

Accessory Manual EDC / EDC Plus Version 1.00

5

3 Holders for a second endoscope connector The holder avoids the contact of the endoscope connectors with the cabinet bottom of the EDC or EDC Plus during drying and storage. The holder is required for endoscopes with a long universal cord or two endoscope connectors. Place only connectors of endoscopes in the holder which lack channels in the universal cord. WARNING Risk of injury to the patient Do not place connectors of endoscopes with channels in the universal cord at the holders. Always store these endoscopes connectors hanging and refer to instructions of the endoscope manufacturer. A holder for endoscope connectors consist of two parts: • Holder "Multi-Use", for light guide connector • Holder insert Different holder inserts are available for different kinds of endoscope connectors. NOTICE Once the insert is placed in the “Multi-Use” Holder it is not possible to loosen the insert anymore. The holder has to be mounted with 3 screws at the back of the drying cabinet chamber. To place the holder Slide the “Multi Use” holder with the lever in the highest position over the two top screws as far as possible. Push the lever down to fasten the holder to the back of the drying cabinet. Remove the holder Move the lever of the “Multi Use” holder towards you and slide the holder upwards to remove the holder from the back of the drying cabinet. WARNING Risk of injury to the patient Once a week, remove the holder from the back of the cabinet for cleaning and disinfection purposes. For more information refer to the EDC Plus instructions for use.

6

Accessory Manual EDC / EDC Plus Version 1.00

3.1 Holder "Multi-Use", for light guide connector, for EDC Plus (E0425685)

The holder "Multi-Use" must be mounted on the back of the EDC or the EDC Plus and fit to all kind of holder inserts mentioned in this chapter.

Figure 3.1: Holder "Multi-Use", for light guide connector

Accessory Manual EDC / EDC Plus Version 1.00

7

3.2 Holder insert “O-1”, for EDC Plus (E0425686)

Figure 3.2: Holder insert “O-1”

Figure 3.3: Ultrasound connector of Olympus BF-UC endoscope

Figure 3.4: Holder insert “O-1” with “Multi-Use” holder

Figure 3.5: Example

WARNING Risk of injury to the patient Always dry and store the endoscope ultrasound connector without water resistant cap.

Ask your Olympus representative for endoscope compatibility.

8

Accessory Manual EDC / EDC Plus Version 1.00

3.3 Holder insert “O-3” for EDC Plus(E0425688)

Figure 3.6: Holder insert “O-3”

Figure 3.7: Connector of Olympus HYF endoscope

Figure 3.8: Holder insert “O-3” with “Multi-Use” holder

Figure 3.9: Example

Ask your Olympus representative for endoscope compatibility.

Accessory Manual EDC / EDC Plus Version 1.00

9

3.4 Holder insert “O-4”, for EDC Plus (E0425689)

Figure 3.10: Holder insert “O-4”

Figure 3.11: Connectors of Olympus CYF-VH endoscope

Figure 3.12: Holder insert “O-4” with “Multi-Use” holder

Figure 3.13: Example

Ask your Olympus representative for endoscope compatibility.

10

Accessory Manual EDC / EDC Plus Version 1.00

3.5 Holder insert “P-1”, for EDC Plus (E0425690)

Figure 3.14: Holder insert “P-1”

Figure 3.15: Connector of Pentax Ultrasonic endoscope

Figure 3.16: Holder insert “P-1” with “Multi-Use” holder

Figure 3.17: Example

WARNING Risk of injury to the patient Always dry and store the endoscope ultrasound connector without water resistant cap.

Ask your Olympus representative for endoscope compatibility.

Accessory Manual EDC / EDC Plus Version 1.00

11

3.6 Holder insert “P-2”, for EDC Plus (E0425691)

Figure 3.18: Holder insert “P-2”

Figure 3.19: Connector of Pentax ECY endoscope

Figure 3.20: Holder insert P-2 with “Multi-Use” holder

Figure 3.21: Example

Ask your Olympus representative for endoscope compatibility.

12

Accessory Manual EDC / EDC Plus Version 1.00

3.7 Holder insert “P-3”, for EDC Plus (E0425692)

Figure 3.22: Holder insert “P-3”

Figure 3.23: Connector of Pentax VNL endoscope

Figure 3.24: Holder insert “P-3” with “Multi-Use” holder

Figure 3.25: Example

Ask your Olympus representative for endoscope compatibility.

Accessory Manual EDC / EDC Plus Version 1.00

13

3.8 Holder insert “F-1”, for EDC Plus (E0425693)

Figure 3.26: Holder insert “F-1”

Figure 3.27: Connector of Fujifilm endoscope

Figure 3.28: Holder insert “F-1” with “Multi-Use” holder

Figure 3.29: Example

Ask your Olympus representative for endoscope compatibility.

14

Accessory Manual EDC / EDC Plus Version 1.00

4 Endoscope control unit holder for mounting on aluminum rod The holders are used to place the control units of non-G&R endoscope in the EDC Plus for drying and storage. Mount the holders mentioned in this chapter on the aluminum rod of the EDC Plus and replace the universal endoscope control unit holder which is part of the EDC Plus delivery content.

1

2

Figure 4.1: EDC Plus aluminum rod with universal holder for endoscope control unit

1) 2)

Aluminum rod Universal endoscope control unit holder

The exchange of the endoscope control unit holders must be done by an Olympus service technician. WARNING Risk of injury to the patient Once a week, clean and disinfect the holder. For more information refer to the EDC Plus instructions for use.

Accessory Manual EDC / EDC Plus Version 1.00

15

4.1 Holder "Multi-Use", for endoscope control unit, for EDC Plus (E0425679)

The holders “Multi-Use” for endoscope control units fit with the holder insert mentioned in the next section. Both parts build a holder for endoscopes without light guide. NOTICE Once the insert is placed in the “Multi-Use” holder it is not possible to loosen the insert anymore.

Figure 4.2: “Multi-Use” holder, for endoscope control unit

16

Accessory Manual EDC / EDC Plus Version 1.00

4.2 Holder insert, for endoscope without universal cord, for EDC Plus (E0425680)

Figure 4.3: Holder insert, for endoscope without universal cord

Figure 4.4: Holder insert with holder

Figure 4.5: Example

Suitable for the following endoscopes: • • • • •

Olympus endoscopes without universal cord Pentax endoscopes without universal cord Fujifilm endoscopes without universal cord Karl Storz endoscopes without universal cord Richard Wolf endoscopes without universal cord

Accessory Manual EDC / EDC Plus Version 1.00

17

4.3 Holder "BF", for bronchoscope control unit, for EDC Plus (E0425681)

Figure 4.6: Holder for bronchoscopes from the left and right side

Figure 4.7: Example

Suitable for the following endoscopes with universal cord from Olympus: • • • •

18

BF endoscopes CYF endoscopes LF-GP endoscopes URF endoscopes

Accessory Manual EDC / EDC Plus Version 1.00

5 Instrument baskets for endoscope accessories The instrument baskets are used to store endoscope accessories like valves together with the endoscope in the EDC or EDC Plus. The installation of the baskets has to be done by an Olympus service technician. WARNING Risk of injury to the patient Once a week, clean and disinfect the instrument baskets. For more information refer to the EDC Plus instructions for use.

5.1 Instrument basket, small, for EDC (E0425627: 7pieces)

Figure 5.1: Instrument basket for EDC

Figure 5.2: Holder for instrument basket

Figure 5.3: Holder mounted

Figure 5.4: Holder mounted with instrument basket

Use the instrument basket to store small endoscope accessories with the endoscope side by side in the EDC. Dimensions (W x D x H): 80 x 40 x 30 mm Accessory Manual EDC / EDC Plus Version 1.00

19

5.2 Instrument basket, small, for EDC Plus (E0425682: 4 pieces; E0425683: 8 pieces)

Figure 5.5: Instrument basket for EDC Plus

Figure 5.6: Holder for instrument basket

Figure 5.7: Holder mounted with instrument basket

Use the instrument basket to store small endoscope accessories with the endoscope side by side in the EDC Plus. Dimensions (W x D x H): 82 x 32 x 30 mm
