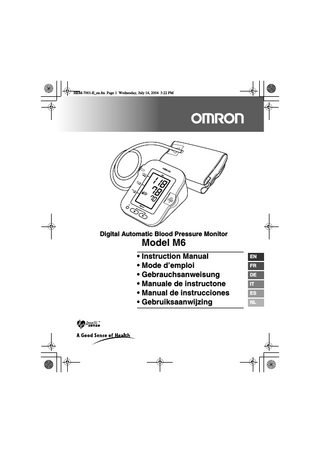

M6 Instruction Manual

HEM-7001-E_en.fm Page 2 Wednesday, July 14, 2004 3:22 PM

Contents Introduction ... 3 Important Safety Information ... 4 1. Overview ...5 2. How to Obtain Meaningful Readings ...7 3. Preparation ...8 3.1 Installing/Replacing the Batteries... 8 3.2 Setting the Date and Time ... 9 4. Using the Monitor ...11 4.1 Applying the Arm Cuff ... 11 4.2 Taking a Reading ... 14 4.3 Using the Memory Function ... 18 5. Handling Errors and Problems ...19 6. Optional Parts ...20 7. Storage and Maintenance ...21 8. Technical Data ...22 9. Some Useful Information about Blood Pressure ...23

2

HEM-7001-E_en.fm Page 3 Wednesday, July 14, 2004 3:22 PM

Introduction The OMRON M6 is a compact, fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. For comfortable controlled inflation without the need of pressure pre-setting or re-inflation the devices uses its advanced “IntelliSense” technology. The device also stores up to 90 measurements in memory and calculates an average value based on the last three measurements. Each measurement is stored along with the date and time of measurement.

EN

3

HEM-7001-E_en.fm Page 4 Wednesday, July 14, 2004 3:22 PM

Important Safety Information • Blood pressure measurement is not suitable in cases of serious arteriosclerosis (hardening of the arteries). • The pulse display is not suitable for monitoring the frequency of cardiac pacemakers. • Pregnant women should only measure their own blood pressure in consultation with their doctor, since the readings can be changed by pregnancy. • Do not use the monitor on babies, young children or persons who cannot express their consent. • Do not use the monitor for any purpose other than measuring blood pressure. • Do not use a cellular phone near the monitor. This may result in the monitor operating incorrectly. • The battery liquid may leak and damage the monitor. Please observe the following points. - When you are not going to use the unit for a long period of time (approximately three months or more), take out the batteries. - Replace old batteries with new ones immediately. - Do not use old and new batteries together. - Do not insert the batteries with their polarities incorrectly aligned.

• Please remember: Self-measurement is not the same as medical treatment. • You should never change the dose of medicines prescribed by your doctor but you can help your doctor to optimize the treatment by documenting the measured values. If there are unusual values, please inform your doctor immediately. • Never unplug the power cord with wet hands. • Use only the original AC adapter designed for this unit. Use of unsupported adapters may damage the device.

4

HEM-7001-E_en.fm Page 5 Wednesday, July 14, 2004 3:22 PM

1.Overview

1. Overview Monitor A E

B D C

F

G

A. Display E. Battery compartment B. O/I START button F. Air jack C. Memory ( ) buttons G. AC adapter jack (for optional AC adapter) D. Date/Time ( ) setting button EN

5

HEM-7001-E_en.fm Page 6 Wednesday, July 14, 2004 3:22 PM

1.Overview

Display H I J L

O

K

Q

M

P R

N H. Systolic blood pressure I. Diastolic blood pressure J. Memory display K. Average value display L. Movement error display M. Irregular heartbeat display N. Battery low display

O. Heartbeat display P. Pulse display Q. Deflation display R. Date/Time display

Package contents S

V T

U W

S. Arm cuff (Medium cuff: arm circumference 22-32 cm) T. Air plug U. Air tube

6

V. Storage case W. Four “AA” alkaline (LR6) batteries

HEM-7001-E_en.fm Page 7 Wednesday, July 14, 2004 3:22 PM

2.How to Obtain Meaningful Readings

2. How to Obtain Meaningful Readings To help ensure a reliable reading, avoid eating, smoking, or exercising for at least 30 minutes before taking a measurement. Note: Remove any tight-fitting clothing from your upper arm.

1. Sit on a chair with your feet flat on the floor and place your arm on a table so that the arm cuff will be at the same level as your heart.

2. Apply the arm cuff to your upper arm. The coloured marker should be centred on the inside of your arm and point down the inside of the arm, so that the air tube runs down the inside of your forearm and is in line with your middle finger.

3. Secure the cuff around your arm using the fabric fastener strip. 4. Press the O/I START button. When measurement is complete, the monitor displays your blood pressure and pulse rate, and automatically deflates the cuff. Notes: • Always wait at least 2-3 minutes before taking another blood pressure measurement. • Please note that all measurement are stored in the memory. If different people measure with the same device make sure that you are aware of this fact.

7

EN

HEM-7001-E_en.fm Page 8 Wednesday, July 14, 2004 3:22 PM

3.Preparation

3. Preparation 3.1

Installing/Replacing the Batteries

1. Remove the battery cover.

2. Insert four “AA” batteries as indicated in the battery compartment and then replace the battery cover.

Notes: • If the battery low display ( ) appears on the display, replace all four batteries at the same time. Long-life alkaline batteries are recommended. • Remove the batteries if the monitor will not be used for three months or more. • If the batteries are removed for a long period of time, the Date/ Time setting will need to be reset. See “Setting the Data and Time” for details. • Dispose of batteries according to applicable local regulations.

8

HEM-7001-E_en.fm Page 9 Wednesday, July 14, 2004 3:22 PM

3.Preparation

3.2

Setting the Date and Time Your blood pressure monitor automatically stores up to 90 measurements values in its memory and calculates an average reading based on the measurements from the last three readings. • Set the monitor to the correct date and time before taking a measurement for the first time. • If the batteries have been removed for a long period of time, the date and time setting will need to be reset.

1. When the batteries are installed, the year digits will flash in the display when you turn on the monitor. Note: If you need to reset the date and time for some reason, hold down the button while the power is off.

2. Press the

button to advance the digits one at a time. EN

To change the digits to a lower number, press the button to lower the digits one at a time. If you hold down the or button, the digits will advance (or lower) rapidly.

3. Press the

button to confirm the setting when the desired number appears on the display.

9

HEM-7001-E_en.fm Page 10 Wednesday, July 14, 2004 3:22 PM

3.Preparation

4. Repeat steps 2 and 3 to set the month and date (day).

or

or

5. Repeat steps 2 and 3 to set the hour and minutes for the time.

or

or

6. Press the O/I START button when you have finished setting the date and time.

10

HEM-7001-E_en.fm Page 11 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

4. Using the Monitor 4.1

Applying the Arm Cuff You can wrap the cuff either on your right or left arm. • Remove tight-fitting clothing from your upper arm. • Do not place the cuff over thick clothes and do not roll up your sleeve if it is too tight.

1. If the cuff is assembled correctly, the

Pile side material

hook material will be on the outside of the cuff loop and the metal D-ring will not touch your skin.

Sewn hook material

Note: If the cuff is not assembled, pass the end of the cuff furD-ring thest from the tubing through the metal D-ring to form a loop. The smooth cloth should be on the inside of the cuff loop. EN

2. Insert the air plug into the air jack (on the left side of the device). Air plug

Air jack

The cuff must be fully deflated when it is inserted into the air jack.

11

HEM-7001-E_en.fm Page 12 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

3. Sit in a chair with your feet flat on the floor and place your arm on a table so that the cuff will be at the same level as your heart.

4. Put your arm through the cuff loop. Bottom Edge 1 to 2 cm

Marker

Air tube

The bottom of the cuff should be approximately 1 to 2 cm above the elbow. Apply the cuff to your upper arm so that the coloured marker is centred on the middle of your inner arm and points down the inside of the arm. The air tube should run down the inside of your forearm and be in line with your middle finger.

12

HEM-7001-E_en.fm Page 13 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

5. Pull the cuff so that the top and bottom edges are tightened evenly around your arm.

6. When the cuff is positioned correctly, close the fabric fastener FIRMLY.

Notes: • Make certain the cuff fits snugly around your arm. • The cuff should make good contact with your skin. You should be able to fit your index finger between the cuff and your arm easily, so you can pull the cuff off and on. • Make sure that there are no kinks in the air tubing. Taking measurements on the right arm Please note the following points when applying the cuff to your right arm. Apply the cuff so that the air tube is at the side of your elbow. Notes: • Be careful not to rest your arm on the air tube, or otherwise restrict the flow of air to the cuff. • Apply the arm cuff so that no part of the cuff is positioned over the elbow joint. The cuff should be 1 to 2 cm above the elbow.

13

EN

HEM-7001-E_en.fm Page 14 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

4.2

Taking a Reading

1. Press the O/I START button and remain still, the cuff will start to inflate automatically.

As the cuff begins to inflate, the monitor automatically determines your ideal inflation level. Remain still and do not talk until measurement is completed. Note: Do not inflate the cuff if it is not wrapped around your arm.

2. Inflation stops automatically and measurement is started. As the cuff slowly deflates, decreasing numbers appear on the display and the Heartbeat display flashes at every heartbeat. In rare circumstances, the monitor might re-inflate the cuff to continue with the measurement.

3. When the measurement is complete, the arm cuff completely deflates and your blood pressure and pulse rate are displayed. Note: The monitor automatically stores the blood pressure readings and pulse rate along with date and time of measurement in its memory.

14

HEM-7001-E_en.fm Page 15 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

4. Press the O/I START button to turn the monitor off. Note: If you forget to turn the monitor off, it will automatically shut itself off after five minutes. Important: • Wait 2-3 minutes before taking another blood pressure measurement. Waiting between readings allows the arteries to return to the condition prior to taking the blood pressure measurement. • If you move during measurement, the movement display ( ) may appear. Repeat the measurement and remain still until the measurement is complete. • Your blood pressure monitor includes an irregular heartbeat feature. Irregular heartbeats can influence the results of the measurement. The irregular heartbeat algorithm automatically determines if the measurement is usable or needs to be repeated. If the irregular heartbeat display ( ) is shown after your have taken a measurement, repeat the measurement. If the irregular heartbeat display ( ) is shown frequently, please make your doctor aware of it. Instructions for special conditions If your systolic pressure is known to be more than 220 mmHg, after the cuff starts to inflate, press and hold the O/I START button until the monitor inflates 30 to 40 mmHg higher than your suspected systolic pressure. Important: • The monitor will not inflate above 300 mmHg. • Do not apply more pressure than necessary.

15

EN

HEM-7001-E_en.fm Page 16 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

What is Irregular Heartbeat? Normal Heartbeat An irregular heartbeat is a heartbeat rhythm that varies Pulse by more than 25% from the Blood pressure average heartbeat rhythm detected while the unit is Irregular Heartbeat measuring the systolic and Short Long diastolic blood pressure. Pulse If such an irregular rhythm is Blood pressure detected more than twice during measurement, the irregular heartbeat display ( ) appears on the display when the measurement results are displayed. If too many irregular rhythms are detected during measurement, the irregular heartbeat display appears ( ) but no measurement is displayed.

What is Arrhythmia? A heartbeat is stimulated by electrical signals that cause the heart to contract. Arrhythmia is a condition where the heartbeat rhythm is abnormal due to flaws in the bio-electrical system that drives the heartbeat. Typical symptoms are skipped heartbeats, premature contraction, an abnormally rapid (tachycardia) or slow (bradycardia) pulse. This can be caused by heart disease, aging, physical predisposition, stress, lack of sleep, fatigue etc. Arrhythmia can only be diagnosed by a doctor through a special examination. Whether the appearance of irregular heartbeat display ( ) in the results indicates arrhythmia or not can only be determined by an examination and diagnosis by your doctor. If the irregular heartbeat display ( ) is shown frequently, please make your doctor aware of it. Conducting self-diagnosis and treatment based on measurement results is dangerous. Be sure to follow the instructions of your doctor.

16

HEM-7001-E_en.fm Page 17 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

4.3

Using the Memory Function This monitor has a memory capable of storing 90 sets of readings. Every time you complete the measurement, the monitor automatically stores blood pressure and pulse rate. The monitor also calculates an average reading based on the measurements from the last three readings. Note: To ensure that the measurement results are recorded correctly, make sure that the date and time are set correctly before taking a measurement. When 90 sets of readings are stored in memory, the oldest set will be deleted to store a new set. The date and time of stored readings will be alternately displayed. To View the Average Value Press the memory button. The average values, based on the last three measurements, is displayed.

EN

17

HEM-7001-E_en.fm Page 18 Wednesday, July 14, 2004 3:22 PM

4.Using the Monitor

To View Previous Readings Stored in Memory

1. Press the

button, while the average reading is displayed, to view reading stored in memory from the most recent to the oldest.

Alternating display

2. Press the

or button repeatedly to cycle through the previous measurement values ( button: from the most recent to the oldest, button: from the oldest to the most recent) Keep the button pressed down to cycle rapidly through the previous values. To Delete All the Values Stored in Memory Caution! You cannot delete the stored readings partially, all the reading in the monitor will be deleted. To delete stored readings, press the memory button and the O/I START button simultaneously, then all the readings will be deleted.

18

HEM-7001-E_en.fm Page 19 Wednesday, July 14, 2004 3:22 PM

5.Handling Errors and Problems

5. Handling Errors and Problems Error Display

Cause

Remedy

Cuff is under inflated.

Movement during measurement

Carefully read and repeat the steps listed under “Taking a Reading” on p. 14.

Cuff over inflated.

This icon indicates irregular or weak pulses are detected, but result can be considered reliable.

Remove the arm cuff. Wait 2-3 minutes and then take another measurement. Repeat the steps in “Taking a Reading” on p. 14. If this error continues to appear, contact your physician.

EN Batteries have run down.

Replace all four “AA” batteries with new ones.

19

HEM-7001-E_en.fm Page 20 Wednesday, July 14, 2004 3:22 PM

6.Optional Parts

Problem No display appears when the O/I START button is pressed.

Cannot measure or readings are too high.

The blood pressure is different each time. The reading is extremely low (or high).

Cause

Remedy

The batteries are empty.

Replace the batteries.

Is the cuff wrapped firmly around the arm?

Attach the arm cuff correctly.

The cuff pressure does not rise although the pump motor can be heard.

Check that the air plug is properly connected to the monitor. Push the air plug firmly into the air jack.

Blood pressure readings constantly vary with time of measurement and nervous condition. Take deep breaths to relax before taking a measurement.

6. Optional Parts AC Adapter (Q-adapter or F-adapter)

20

Small cuff Arm circumference 17 22 cm

Large cuff Arm circumference 32 42 cm
