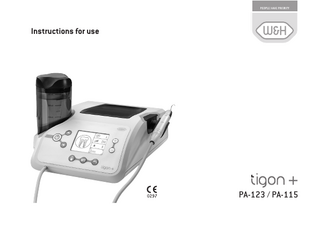

Instructions for use
PA-123 / PA-115
Contents Symbols...4 – 6 1. Introduction...7 – 8 2. Electromagnetic compatibility (EMC)... 9 3. Unpacking...10 4. Equipment supplied ... 11 5. Safety notes...12 – 16 6. Description of front panel / rear panel...17 – 18 7. Starting operation – General... 19 – 20 8. Starting operation – S-N1 foot control...21 9. Tip insertion / removal...22 – 23 10. Switching Tigon+ on / off...24 11. Control unit operation – Setup settings...25 – 30 12. Factory settings... 31 13. Control unit operation – Main menu settings... 32 – 36 14. Test run... 37 15. Error messages... 38 – 40
2
Contents 16. Hygiene and maintenance... 41 – 49 17. Replacing the O-rings...50 18. Replacing the coolant filter... 51 19. Replacing the pump cartridge...52 – 53 20. W&H accessories and spare parts... 54 – 55 21. Servicing...56 22. Technical data... 57 – 58 23. Disposal...59 Explanation of warranty terms...60 Authorized W&H service partners... 61
3
Symbols in the Instructions for use
WARNING! (risk of injury)
ATTENTION! (to prevent damage occurring)
General explanations, without risk to persons or objects
Thermo washer disinfectable
Sterilizable up to the stated temperature
Suitable for the ultrasonic bath
Call customer service
4
Symbols on the Tigon+ Follow Instructions for Use Consult instructions for use
Article number Serial number
Class II equipment
Do not dispose of with domestic waste
V
Supply voltage of the unit
Date of manufacture
Foot switch
AC
Alternating current
Electric fuse
Earth
W
Electric power consumption of the unit
Not suitable for intracardiac application – Type B applied part
XXXX
Data Matrix code for product information including UDI (Unique Device Identification)
CE mark with identification number of the Notified Body
A MEDICAL – GENERAL MEDICAL EQUIPMENT WITH RESPECT TO ELECTRICAL SHOCK, FIRE AND Hz MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL 60601-1:2006, CAN/CSA-C22.2 No.601.1-M90:2005, CAN/CSA-C22.2 No.60601-1:2008, ANSI/AAMI ES 60601-1:2005 25UX (Control No.)
Supply current Frequency of the alternating current
5
Symbols on the packaging XXXX
CE mark with identification number of the Notified Body
Data Matrix code for product information including UDI (Unique Device Identification)
This way up
Data structure in accordance with Health Industry Bar Code
Fragile, handle with care
Temperature limit
Keep away from rain
Humidity limitation
»Der Grüne Punkt« (The Green Dot) trademark of Duales System Deutschland GmbH
Caution: Federal law restricts this device to sale by or on the order of a dentist, physician or any other practitioner licensed by the law of the state in which he or she practices to use or order the use of the device
Trademark of RESY OfW GmbH for identification of recyclable transport and outer packaging of paper and cardboard
6
1. Introduction For your safety and the safety of your patients These instructions explain how to use your product. However, we must also warn against possible hazardous situations. Your safety, the safety of your team and, of course, the safety of your patients, are of paramount importance to us. It is therefore essential that you observe the safety notes on pages 12 – 16. Intended use Drive unit with a piezo-ceramic oscillation system, which sets the scaler tip in linear vibration. The drive unit is used to remove supragingival plaque and subgingival concretions, as well as for endodontic applications and for preparing dental enamel. Misuse can damage the Tigon+ and hence cause risks and hazards for patients, users and third parties. Qualified use Tigon+ is only intended for qualified use in dental medicine according to the applicable health and safety regulations, accident prevention measures and in observance of these instructions for use. Tigon+ must only be prepared and maintained by persons who have been instructed in infection protection, personal protection and patient safety. Improper use (e.g. due to lack of hygiene or maintenance), non-compliance with our instructions or the use of accessories and spare parts not approved by W&H invalidates all claims under warranty and any other claims.
7
Introduction Qualifications of the user Tigon+ has been developed and designed for the target group »dentists, dental hygienists, dental employees (prophylaxis) and dental assistants«. Production according to EU Directive The medical device complies with the regulations of Directive 93/42/EEC.
Responsibility of the manufacturer The manufacturer can only accept responsibility for the safety, reliability and performance of Tigon+ when there is compliance with the following directions: > Tigon+ must be used in accordance with these instructions for use. > Tigon+ has no components which can be repaired by the user. Assembly, modifications or repairs must only be undertaken by an authorized W&H service partner (see page 61). > The electrical installation at the premises must comply with the regulations of IEC 60364-7-710 (»Installation of electrical equipment in rooms used for medical purposes«) or with the regulations applicable in your country. > Unauthorized opening of the equipment invalidates all claims under warranty and any other claims.
8
2. Electromagnetic compatibility (EMC) Notes on electromagnetic compatibility (EMC) Medical electrical equipment is subject to particular precautions with regards to EMC and must be installed and put into operation in accordance with the EMC notes included. W&H guarantees the compliance of the device with the EMC requirements only when used with original W&H accessories and spare parts. The use of other accessories/other spare parts can lead to an increased emission of electromagnetic interference or to a reduced resistance against electromagnetic interference. You can find the current EMC manufacturer’s declaration on our website at http://wh.com or, alternatively, you can also request a copy directly from the manufacturer. The irradiation from certain electromagnetic fields can trigger a system failure in isolated cases. If Tigon+ should fail, contact an authorized W&H service partner (see page 61). HF communication equipment Do not use any portable and mobile HF communication equipment (e.g. mobile telephones) during operation. These may affect medical electrical equipment.
9
3. Unpacking Lift out insert with stand and foot control.
Lift out the control unit.
Remove the carton containing the accessories supplied.
W&H packaging is environmentally friendly and can be disposed of by industrial recycling companies. However, we recommend that you keep the original packaging.
Remove the carton containing the coolant tank.
10
4. Equipment supplied After unpacking, you should have the following parts: REF 13931000 Control unit (230 V), (incl. 1.8 m supply hose with coupling, tray, handpiece support and coolant tank) REF 06028700 Handpiece PA-1 LED REF 06373900 Tip set: Tip changer with universal tip 1U, 3U and periodontal tip 1P inserted REF 05851800 Tip set: Tip changer with Implant Clean tip 1I and Endo tip 1E with spanner REF 06382800 S-N1 foot control REF 06382200 Handle for SN-1 foot control REF 04653500 Coolant hose (Ø 6 mm, approx. 2 m) REF 05075600 with coolant filter REF 02675000 Nozzle cleaner REF 00636901 O-ring for hose coupling REF 02060203 (2 pcs) O-ring for hose coupling REF 05417700 (1 pc) Tip card Mains cable REF 01343700 (EU) or: REF 02821400 (USA, CAN, J) / REF 03212700 (UK, IRL) / REF 02909300 (AUS, NZ) / REF 04280600 (CH) / REF 05901800 (DK) alternatively: REF 13931001 Control unit (115 V), (incl. 1.8 m supply tube with coupling, tray, handpiece support and coolant tank) REF 06479400 11
5. Safety notes Inappropriate use Improper use, in addition to incorrect assembly, installation, modification or repairs of Tigon+ or failure to comply with our instructions invalidates all claims under warranty and any other claims The control unit is designed for use with the W&H handpiece PA-1 LED so only this is to be used with the control unit. The use of other handpieces could lead to a malfunction or destruction of the electronics. Mains cable Only use the mains cable supplied. Only connect to a grounded socket outlet. Set up the device so that the power switch is easily accessible. In dangerous situations, the device can be disconnected from the power supply using the power switch or power cable. The power switch can also be used to safely stop the device. Control unit The control unit is classed as »conventional equipment« (closed equipment without protection against the ingress of water). System failure A total system failure does not constitute a critical fault. Simply switch the unit off and then on again. 12
Safety notes Intermittent operating mode S3 (8 min operating time / 5 min pause time) The permissible relative load time is 8 minutes to 5 minutes pause time. If the operating mode specified is observed no overheating of the system and therefore no injury to the patient, user or third persons arises. The responsibility for the use and timely shutdown of the system lies with the user. Danger zones M and G In accordance with IEC 60601-1/ANSI/AAMI ES 60601-1, Tigon+ is not suitable for use in potentially explosive atmospheres or with potentially explosive mixtures of anaesthetic substances containing oxygen or nitrous oxide. Tigon+ is not suitable for use in oxygen-enriched atmospheres. Zone M, also referred to as the “medical environment”, includes the part of a room in which potentially explosive atmospheres may occur as a result of the use of analgesics or medical skin cleaning or disinfectants, but only in small quantities and only for a short time. Zone M comprises a truncated pyramid below the operating table which is tilted outwards at a 30° angle. Zone G, also referred to as an “enclosed medical gas system”, comprises not necessarily fully enclosed cavities in which permanent or temporary potentially explosive mixtures may be generated, supplied or used in small quantities.
13
Safety notes This medical device complies with the reference values defined in EN 50527-2-1/2011 for unipolar and bipolar pacemakers and is therefore suitable for patients with pacemakers. > Keep a safe distance of at least 30 cm between the control unit and your patients during operation. > Before using Tigon+ for the first time, store it at room temperature for 24 hours. > Tigon+ is not suitable for surgical treatment. > Tigon+ is not designed to administer drugs or similar substances. > Do not connect Tigon+ to the hot water supply. > Rinse the supply hose through once a day (rinsing function page 26 – 27). > Never fill or top up the coolant tank with liquids hotter than 30 °C. > Only use coolants, rinsing/cleaning liquids approved by the manufacturer. Approved coolants and rinsing liquids > Sodium chloride (table salt) naCl > Hydrogen peroxide (H2O2) (1 – 3 %) > Water > Liquids with the active substance chlorhexidine 0.2% Approved cleaning agents > Liquids with the active substance chlorhexidine 0.2% Applied parts (parts that come into contact with the patient) > Handpiece, tips, supply hose
14
Safety notes > Tigon+ approved for use only with supply units with category 5 backflow prevention devices as defined in EN 1717. > Provide sufficient space for unrestricted operation of the foot control. > Always ensure correct operating conditions and that sufficient and adequate cooling is delivered. > Always provide sufficient coolant and ensure the appropriate suction (except in endodontic applications). > Turn off the handpiece immediately in the event of failure in the coolant supply. Exception for endodontic applications, here use is without coolant. Max. operating time without coolant is: > 2 minutes in the power range 1 – 30 > 30 seconds in the power range 31 – 40 > Sterilize the handpiece, the tips and the accessories before using for the first time. > Check Tigon+, the handpiece and the supply hose for damage and loose parts (e.g. tip, LED, O-ring) every time before using. Correct any faults or contact an authorized W&H service partner (see page 61). Do not operate Tigon+ if it is damaged. > Check the parameter settings every time the device is restarted. > Perform a test run prior to each treatment. > Avoid eye contact with the optic outlet. > Never touch the patient and the connections for the foot control or coolant hose simultaneously. > Switch Tigon+ off after every application. > Disconnect Tigon+ from the water supply connection after each use (the control unit does not have an automatic aquastop).
15
Safety notes > Only replace the LED socket when the handpiece is at rest. > Replace faulty or leaky O-rings in the hose coupling immediately. > Replace a faulty or leaky pump cartridge immediately. > Disconnect the control unit from the power supply when replacing the pump cartridge. > When changing the fuse, disconnect the control unit from the power supply and only use W&H original fuses. Tips > Only use tips approved by W&H and the associated tip changer or spanner. > An overview for the correct power setting is included with each tip. > With periodontal tips, the handpiece is suitable for the removal of concretions in the subgingival region, but not for applications which demand sterile conditions. > Ensure that the original shape of the tip is not changed (e.g. by dropping). > Tips must not be bent back to shape or reground. > Only insert the tip when the handpiece is at rest. > Never touch the tips when vibrating. > Place the tip changer onto the inserted tip of the handpiece at rest after each treatment. Tips that are changed using the spanner must be removed immediately after treatment with the handpiece. > Check for the effect of wear on the tips using the accompanying tip card. > Change tips if there are visible signs of wear.
16
6. Description front panel
Coolant tank Display
Tray
Handpiece support (adjustable)
Navigation buttons Standby button
PLUS / MINUS buttons
Supply hose with coupling Coolant tank button
SET button
Coolant fixed connection button
17
Description rear panel
Connecting socket for S-N1 foot control
Power switch I / O (ON / OFF)
Fuse holder with 2 fuses
Power socket
Connecting socket for C-NF foot control (optional)
Connection for coolant hose
18
7. Starting operation – General Always place Tigon+ on a flat level surface. Make sure that it is easy to disconnect Tigon+ from the power supply. Mount the coolant filter (only with use of the coolant fixed connection) Cut through the coolant hose. Unscrew the cap nut from the coolant filter. Attach the coolant hose through the cap nut onto the coolant filter. Screw the cap nut tight.
a) Insert the coolant hose: Push the coolant hose in as far as the stop. b) Remove the coolant hose: Pull the connection ring towards the rear and remove the coolant hose. Continue from step (see page 20). or: If the coolant tank is used Perform steps to (see page 20). 19
Starting operation – General Fill the coolant tank and attach it. The coolant tank snaps audibly into place. Always remove the coolant tank for refilling. The filling level indicator does not guarantee the coolant supply.
Insert the tray.
Attach the handpiece support. You can adjust the handpiece support by turning it.
Connect the mains cable and the foot control. Pay attention to the positioning!
Attach the handpiece to the supply hose. Pay attention to the positioning of the connections!
20
